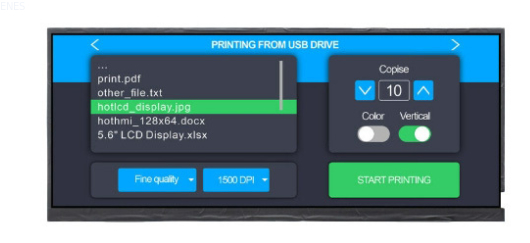

12.3 inch Display 1920x720 Sunlight Readable 1200nits Industrial Grade IPS 178° LVDS Capacitive Touch High-Bright WLED Operation MODEL NAMETFT Display Module with CTP
| Attribute |
Value |
| LCD Active Area |
292.03* 109.51mm |
| Number OfDots |
1920* RGB * 720pixel |
| Viewing Direction |
ALL |
| Interface Type |
LVDS |
| Operating Temperature |
-30℃~ 80℃ |
| Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
Product Description
The T123WF01 is engineered for high-performance outdoor and vehicle-mounted applications, featuring a-Si TFT-LCD technology with sRGB color gamut, wide temperature tolerance, high brightness, and white LED backlighting. Its ultra-wide screen supports display flipping (up/down, left/right) for versatile installation.
Key Specifications:
- Operating Temperature: -30°C to 85°C
- Storage Temperature: -40°C to 90°C
- Vibration Resistance: 2.9G (28.4 m/s²)
12.3-inch TFT-LCD: Superior Performance for Demanding Environments
Ideal for automotive digital dashboards, industrial HMIs, and outdoor displays, this TFT-LCD combines an ultra-wide format, extreme environmental resilience, and high-brightness IPS panels. Key advantages include LVDS signal reliability, sunlight-readable visibility, and optional touch functionality--making it perfect for mission-critical systems requiring clarity and durability.
Key Selling Points
Ultra-Wide Form Factor & High Resolution
- Aspect Ratio: 8:3 (1920×720) - optimized for dashboard layouts and data-rich interfaces.
- Pixel Density: ~167 PPI with RGB vertical stripe arrangement, ensuring crisp text and graphics.
Robust Environmental Adaptability
- Wide Temperature Range: Industrial-grade operation from -30 °C to 85°C (automotive variant: -20 °C to 70°C).
- Sunlight Readability: Brightness options from 300 cd/m² to 1,000 cd/m², enhanced by anti-glare coatings.
High-Reliability Interfaces & Durability
- LVDS Interface: Dual-channel LVDS supports high-speed data transfer (up to 2 Gbps) with low EMI, ideal for automotive/industrial noise immunity.
- Shock & Dust Resistance: Reinforced construction (e.g., hardened glass) withstands harsh factory/vehicle conditions.
Superior Optical Performance
- Wide Viewing Angles: IPS/ADS technology delivers 85°-88° viewing angles (CR≥10) for consistent color from any perspective.
- High Contrast Ratio: 1,100:1 to 1,500:1 for deep blacks and vivid colors, ideal for low-light environments (e.g., night driving).
Industrial-Grade Customization
- Touch Integration: Optional resistive/capacitive touch (up to 10-point multitouch) for interactive kiosks/control panels.
- Long-Term Supply: Guaranteed availability (5+ years) with RoHS compliance for sustainability.
Primary Applications
Automotive Instrument Clusters
- Digital Dashboards: Replaces analog gauges in vehicles (e.g., Volvo, Ford, Kia), displaying real-time metrics (speed, navigation, fuel efficiency) with customizable themes.
- Advanced Navigation: Supports split-screen views (e.g., maps + diagnostics) for enhanced driver awareness.
Industrial HMI Solutions
- Control Systems: Monitors machinery status and production data in demanding environments (factories, medical equipment).
- Medical Devices: Displays critical patient vitals with high reliability under clinical lighting.
Specialized Use Cases
- Outdoor Advertising & Public Displays: High brightness (1,000 cd/m²) ensures visibility in direct sunlight.
- Embedded Systems: Bar-type form factor (1920×720) suits space-constrained setups (server racks, IoT controllers).
FAQ
Q: How soon can I receive a quotation?
A: We typically respond within 12 hours of inquiry receipt. For urgent requests, contact us via phone, email, Skype, or WhatsApp.
Q: What is your warranty policy?
A: We offer a 1-year warranty on all products.
Q: Can I order samples for testing?
A: Yes! Sample orders are welcome to evaluate our quality and service.
Q: How do I place a bulk order?
A:
- Provide model number, quantity, color, and special requirements.
- We'll issue a Proforma Invoice for approval.
- Production begins upon payment confirmation.
- Delivery as per agreed terms.
Q: What shipping options are available?
A: We support DHL, UPS, FedEx, TNT, EMS, as well as cost-effective air/sea freight--tailored to your needs.
Q: How is product quality ensured?
A: Rigorous IQC, IPQC, and FQC processes guarantee 100% inspection before shipment.
Q: Do you offer OEM services?
A: Yes! We provide professional OEM customization.
Q: Is after-sales support available?
A: Absolutely. Our dedicated team handles RMA services, firmware updates, and technical assistance.
