2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI

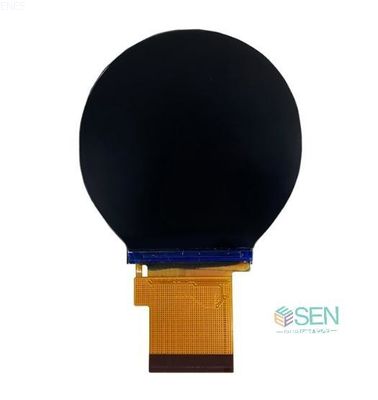

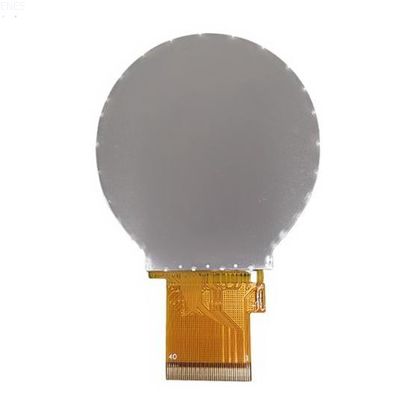

Large Image : 2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TO21B018

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Model No:	TO21B018	Size:	2.1 Inch
Interface:	SPI+RGB,MIPI	Resolution:	480mm*480mm
Driver IC:	ST7701S	Viewing Angle:	IPS Full Viewing Angle
Luminance:	320cd/m2	LCM Dimension:	56.1859.712.26mm
Active Area:	53.28*53.28mm	FPC Connecting Mode:	40 Pin Plug In FPC
Touch Panel:	Without Touch,Capacitive Touch Panel Optional Support Customization	Testing Board:	Optional
Highlight:	480 X 480 liquid crystal display module , TFT liquid crystal display module , 2.1'' circular lcd display

2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI

Product Specifications

Attribute	Value
Model No	TO21B018
Size	2.1 inch
Interface	SPI+RGB, MIPI
Resolution	480mm × 480mm
Driver IC	ST7701S
Viewing Angle	IPS Full Viewing Angle
Luminance	320cd/m²
LCM Dimension	56.18 × 59.71 × 2.26mm
Active Area	53.28 × 53.28mm
FPC Connecting Mode	40 Pin Plug in FPC
Touch Panel	Without Touch (Capacitive Touch Panel Optional)
Testing Board	Optional

Product Overview

The 2.1-inch 480 × 480 IPS circular TFT LCD display module features ST7701S driver IC with SPI and MIPI interfaces. This high-performance display is ideal for smart home appliances and smart home systems, offering excellent viewing angles and brightness.

Frequently Asked Questions

Can I have my logo printed on my product?

Yes, we offer ODM/OEM services and can customize the design, production, and processing according to your requirements.

Besides the 2.1-inch size, do you have other sizes of models?

Yes, we provide standard TFT LCD displays ranging from 0.42 inches to 15.6 inches. We can design displays with different resolutions, brightness specifications, and interfaces (RGB, LVDS, MIPI, HDMI) to meet your project requirements for both indoor and outdoor applications.

Usage Precautions

Do not attempt to disassemble the LCD Module
If the logic circuit power is off, do not apply the input signals
Maintain an optimal work environment to prevent static electricity damage
Always ground yourself when handling LCD Modules
Ensure all assembly tools (including soldering irons) are properly grounded
Avoid working under dry conditions to minimize static electricity generation
Handle the protective film carefully when removing to prevent static generation

Customization Options

This display module supports various customization options including:

Capacitive touch panel integration
Custom FPC designs
Single voltage (VADD only) or multi-voltage configurations
Branding and logo printing
Testing board options
