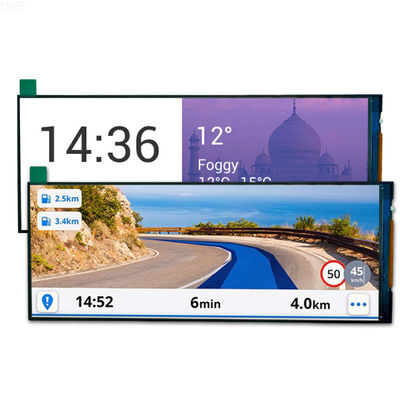

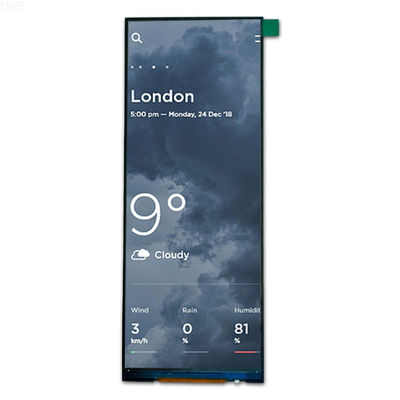

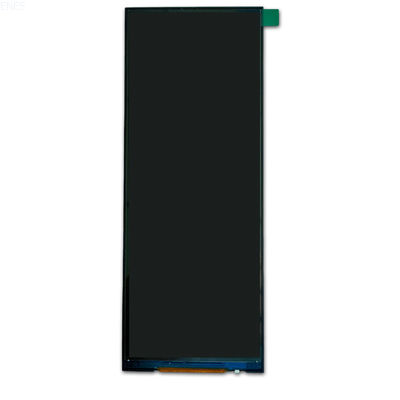

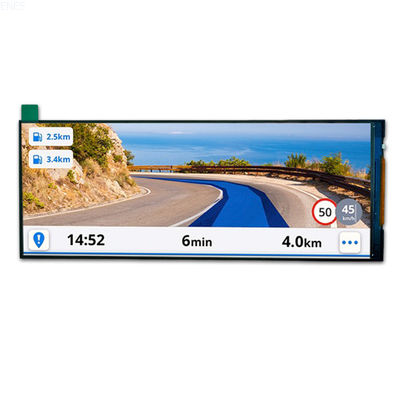

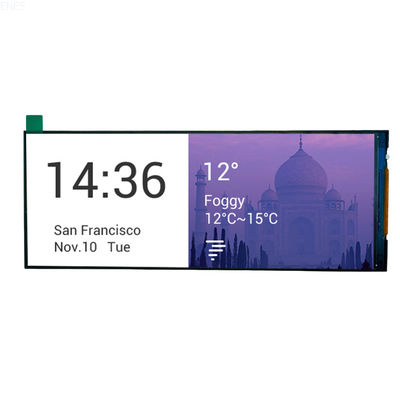

6.75 Inch 480x1280 MIPI DSI Bar Stripe TFT LCD Display Screen 6.8'' 40Pin FL7707

Large Image : 6.75 Inch 480x1280 MIPI DSI Bar Stripe TFT LCD Display Screen 6.8'' 40Pin FL7707

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX068-30MB-A1

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	6.75 Inch	Number Of Pixels:	480(RGB)x1280
Driver IC:	HX8394F	Pixel Pitch:	0.1506(H) X 0.1432(V)
Pixel Arrangement:	RGB Vertical Stripe	Viewing Direction:	Free
Module Outline Dimension:	66.02 (H)171.69 (V)5.27(D)	LCD AA:	60.192(H)* 160.51 (V)
Colors:	16.7M	Interface:	MIPI
Operating Temperature:	-20℃~ +70℃	Storage Temperature:	-30℃~ +75℃
Luminance:	500/cd~600/cd	Customization:	FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:	480x1280 mipi dsi , 6.75in mipi dsi , 6.8'' tft lcd display screen

6.75 inch 480x1280 MIPI DSI Bar Stripe TFT LCD Display Screen 6.8 inch 40Pin FL7707 LCD Module Panel Factory Custom Touchscreen

6.75 Inch 480x1280 MIPI DSI Bar Stripe TFT LCD Display Screen 6.8'' 40Pin FL7707 0

ABSOLUTE MAXIMUM RATINGS

6.75 Inch 480x1280 MIPI DSI Bar Stripe TFT LCD Display Screen 6.8'' 40Pin FL7707 1

ESEN is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2010. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.

FAQ

1. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

2. What are the payment terms?

We usually accept T/T, Paypal, other terms to be negotiated.

3.What’s the lead time?

Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

4.What’s your order process?

evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
