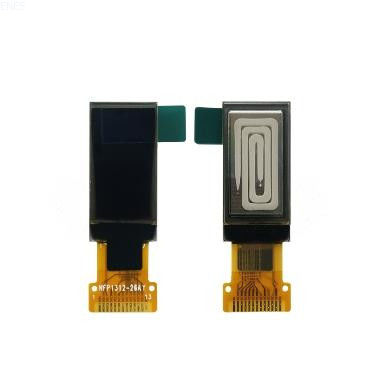

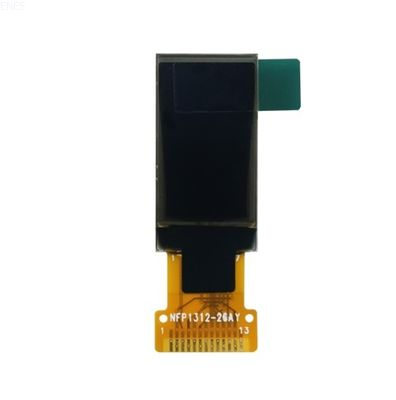

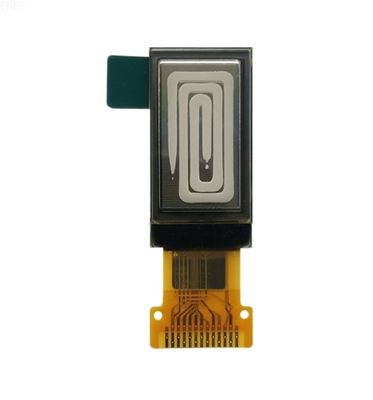

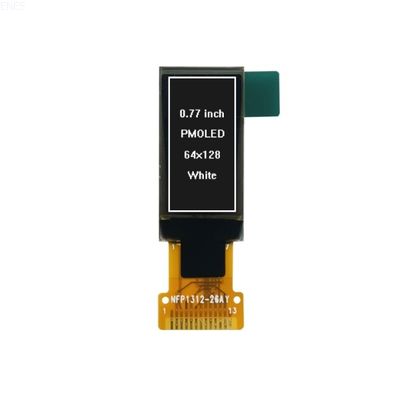

TX077PM6428TSWCG01 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package
Serial Interface Timing Characteristics: (4-wire SPI) (VDD - VSS = 1.65V to 2.4V, Ta = 25°C)

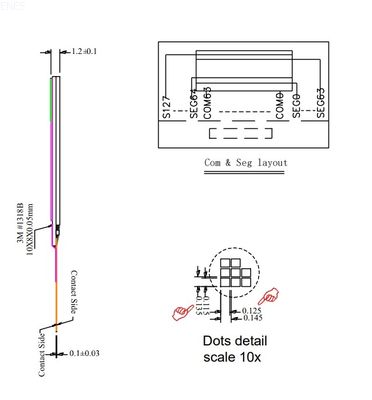

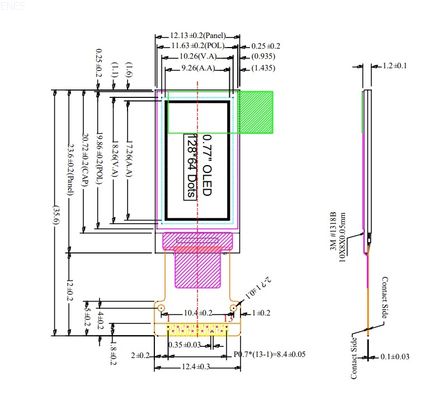

Active Area / Memory Mapping & Pixel Construction
Pin Definition
Absolute Maximum Ratings
Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current
Other Precautions
1) When an OEL display module is operated for a long of time with fixed pattern may remain as an after image or slight contrast deviation may occur. Nonetheless, if the operation is interrupted and left unused for a while, normal state can be restored. Also, there will be no problem in the reliability of the module.
2) To protect OEL display modules from performance drops by static electricity rapture, etc., do not touch the following sections whenever possible while handling the OEL display modules.
* Pins and electrodes
* Pattern layouts such as the FPC
3) With this OEL display module, the OEL driver is being exposed. Generally speaking, semiconductor elements change their characteristics when light is radiated according to the principle of the solar battery. Consequently, if this OEL driver is exposed to light, malfunctioning may occur.
* Design the product and installation method so that the OEL driver may be shielded from light in actual usage.
* Design the product and installation method so that the OEL driver may be shielded from light during the inspection processes.
4) Although this OEL display module stores the operation state data by the commands and the
