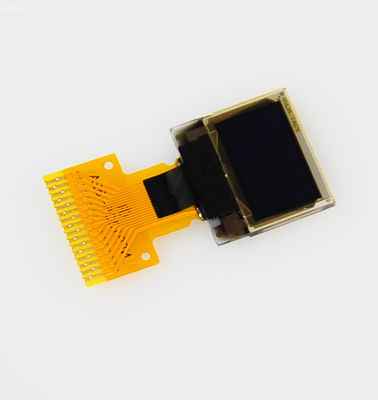

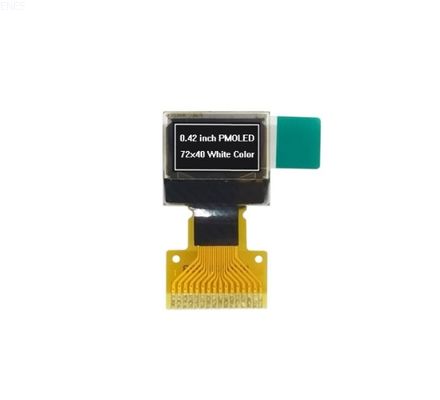

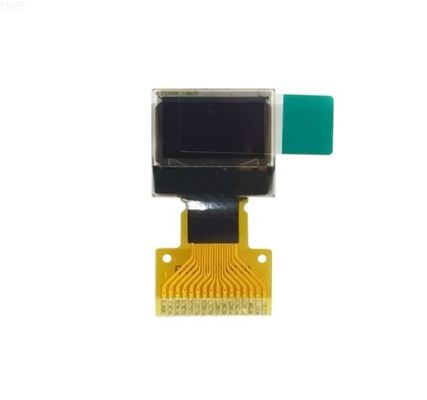

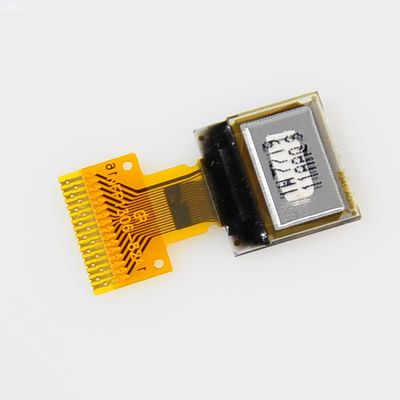

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

Large Image : 0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX042PMH16

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Display Mode:	Passive Matrix	Display Color:	Monochrome (White)
Drive Duty:	1/40 Duty	Outline Drawing:	According To The Annexed Outline Drawing
Number Of Pixels:	72 X40	Panel Size:	12x11x1.25 (mm)
Active Area:	9.196 X5.18 (mm)	Pixel Pitch:	0.128 X 0.13 (mm)
Pixel Size:	0.108 X 0.11 (mm)	Driver IC:	S S D1315
FP C Numbe:	NFP1315-87	Interface:	4-wire S PI, I2C
Luminance:	430cd/m2	FPC Connecting Mode:	16 Pin Soldering FPC
Highlight:	72x40 Monochrome OLED Display , 0.42'' Monochrome OLED Display , 16Pin monochrome oled

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

Product Specifications

Attribute	Value
Display Mode	Passive Matrix
Display Color	Monochrome (White)
Drive Duty	1/40 Duty
Outline Drawing	According to the annexed outline drawing
Number of Pixels	72 x40
Panel Size	12x11x1.25 (mm)
Active Area	9.196 x5.18 (mm)
Pixel Pitch	0.128 x 0.13 (mm)
Pixel Size	0.108 x 0.11 (mm)
Driver IC	S S D1315
FP C Number	NFP1315-87
Interface	4-wire SPI, I2C
Luminance	430cd/m2
FPC Connecting Mode	16 Pin Soldering FPC

Product Description

X042-7240TSWPG01-H16 Folding Type OEL Display Module Pixel Number: 72 x 40, Monochrome, COG Package

Special Tip: When designing main board, please add Electronic Switch circuit, otherwise, it may cause leak current.

Technical Specifications

Basic Specifications
- 1.1 Display Specifications
- 1.2 Mechanical Specifications
- 1.3 Active Area / Memory Mapping & Pixel Construction

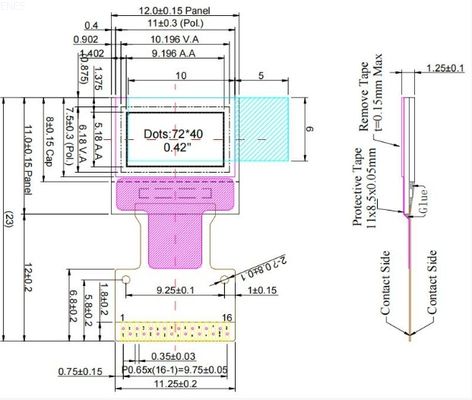

- 1.4 Mechanical Drawing
- 1.5 Pin Definition
Absolute Maximum Ratings
Optics & Electrical Characteristics
- 3.1 Optics Characteristics
- 3.2 DC Characteristics
- 3.3 AC Characteristics
  - 3.3.1.1 I2C Interface Characteristics
  - 3.3.1.2 I2C Interface with Internal Charge Pump
  - 3.3.2.1 Serial Interface Timing Characteristics: (4-wire SPI)
  - 3.3.2.2 4-wire Serial Interface with Internal Charge Pump
Functional Specification
- 4.1 Commands
- 4.2 Power down and Power up Sequence
  - 4.2.1 Power up Sequence
  - 4.2.2 Power down Sequence
- 4.3 Reset Circuit
- 4.4 Actual Application Example
  - 4.4.1 VCC Supplied Externally
  - 4.4.2 VCC Generated by Internal DC/DC Circuit
Reliability
- 5.1 Contents of Reliability Tests
- 5.2 Failure Check Standard
Outgoing Quality Control Specifications
- 6.1 Environment Required
- 6.2 Sampling Plan
- 6.3 Criteria & Acceptable Quality Level
  - 6.3.1 Cosmetic Check (Display Off) in Non-Active Area
  - 6.3.2 Cosmetic Check (Display Off) in Active Area
  - 6.3.3 Pattern Check (Display On) in Active Area
Package Specifications
Precautions When Using These OEL Display Modules
- 8.1 Handling Precautions
- 8.2 Storage Precautions
- 8.3 Designing Precautions
- 8.4 Precautions when disposing of the OEL display modules
- 8.5 Other Precautions

Active Area / Memory Mapping & Pixel Construction

Pin Definition

Contents of Reliability Tests
