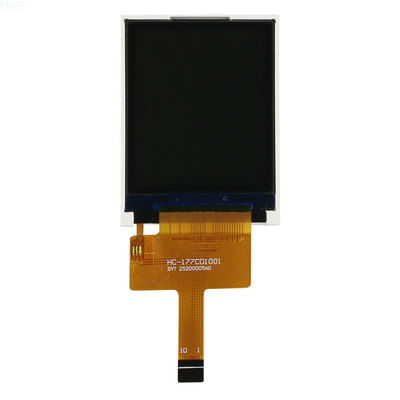

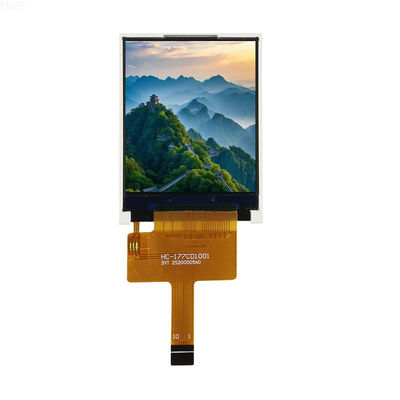

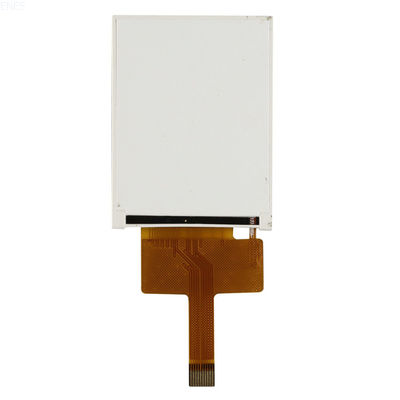

SPI Interface St7735s Small TFT LCD Display 128 X 160 Dots 1.77 Inch

Large Image : SPI Interface St7735s Small TFT LCD Display 128 X 160 Dots 1.77 Inch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-177CB1001

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.77-inch	Dimension:	34* 45.83 *2.35(mm)
Active Area:	28.03* 35.04 (mm)	Number OfDots:	128 * RGB * 160
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7735S	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	2 LEDs	Luminance:	300min /cd,350typ/Cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	Small tft lcd display , St7735s tft lcd display , 128 X 160 small tft monitor

SPI Interface ST7735S Small TFT LCD Display 128×160 Dots 1.77 Inch

Product Specifications

Attribute	Value
Size	1.77-inch
Dimension	34 × 45.83 × 2.35 (mm)
Active Area	28.03 × 35.04 (mm)
Number of Dots	128 × RGB × 160
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7735S
Interface Type	SPI
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	2 LEDs
Luminance	300min /cd, 350typ/Cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

This 1.77-inch IPS TFT LCD module with ST7735S driver IC is specifically designed for e-cigarette applications. The display offers:

Clear 128×160 resolution data display
Fast and stable communication via MCU SPI interface
Sensitive built-in touch panel for easy interaction
IPS technology for bright colors and wide viewing angles
Compact design that enhances man-machine interaction

Frequently Asked Questions

Q: Lead time (after payment is confirmed)

A: Sample: 1-10 working days
Volume: 30 working days

Q: Payment

A: T/T, L/C, Other terms of payment are negotiable.

Q: Warranty

A: 12 months warranty (Please find more details via our datasheet by item of Limited Warranty)

Q: RMA Process

A: Claimed by clients with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confirm the analysis report → Proceeding as per the Report both agreed

Important Note:

Please check both appearance and function of products prior to installation. Any damage caused by improper use or unprofessional installation is not covered under warranty.
