0.96 Inch Mini TFT Display 80 X 160 Display LCD Screen IPS ST7735S IC

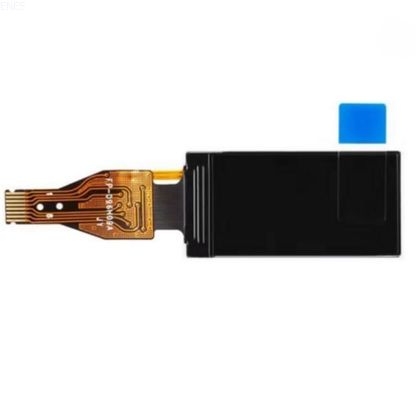

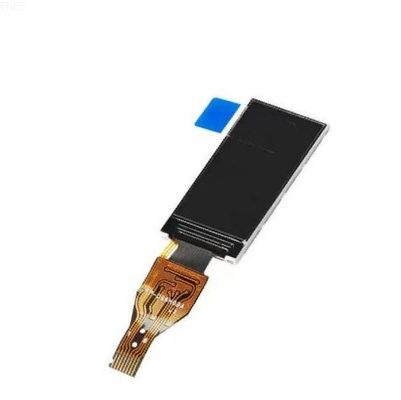

Large Image : 0.96 Inch Mini TFT Display 80 X 160 Display LCD Screen IPS ST7735S IC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T096C08

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

P/N:	T096C08	Size (inch):	0.96 Inch(Diagonal)
Resolution:	80(H)RGB X 160(V)	Dot Pitch:	0.135(H) X 0.1356(V) Mm
Active Area:	10.8(H) X 21.7(V) Mm	Module Size:	13.5(H) X 27.95(V) X1.5Max(D) Mm
Drive IC:	ST7735S	Luminance(cd/m2):	400 (TYP)
Operating Temp.:	-20℃~ + 70℃	Storage Temp.:	-30℃~+ 80℃
Highlight:	0.96in Mini TFT Display , 80 X 160 Mini TFT Display , ST7735S display lcd screen

0.96 Inch Mini TFT Display 80 X 160 Display LCD Screen IPS ST7735S IC

Product Attributes

Attribute	Value
P/N	T096C08
Size (inch)	0.96 inch(Diagonal)
Resolution	80(H)RGB x 160(V)
Dot pitch	0.135(H) x 0.1356(V) mm
Active area	10.8(H) x 21.7(V) mm
Module size	13.5(H) x 27.95(V) x1.5Max(D) mm
Drive IC	ST7735S
Luminance(cd/m2)	400 (TYP)
Operating Temp.	-20℃~ + 70℃
Storage Temp.	-30℃~+ 80℃

Product Description

This 0.96 inch in-car display is small with ultra size so it can fit into the smallest place inside the car. The 80×160 resolution provides basic information display needs. IPS technology provides full viewing angle, allowing clear visibility of screen content from any angle. The data of SPI interface are all transmitted efficiently, guaranteeing stable picture quality for a convenient and clearer reading experience.

Key Specifications

1. General Description

T096C08 is a 80RGBX160 dot-matrix TFT LCD module composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

2. Pin Definition

FPC Connector is used for the module electronics interface.

NO.	Symbol	Description
1	LEDA	LED Anode
2	GND	Power Ground
3	RESET	This signal will reset the device, Signal is active low
4	RS	Display data/command selection pin in 4-line serial interface
5	SDA	SPI interface input/output pin
6	SCL	This pin is used to be serial interface clock
7	VDD	Power Supply for Analog
8	CS	Chip selection pin, Low enable, High disable

3. Electrical Characteristics

3.1 Absolute Maximum Rating

Parameter	Symbol	Min	Max	Unit
Supply Voltage (I/O)	VDD	-0.3	4.6	V
Analog Supply Voltage	VDDIO	-0.3	4.6	V
Logic Input Voltage	VIN	-0.3	VDD+0.3	V
Operation Temperature	Top	-20	70	℃
Storage Temperature	Tst	-30	80	℃

3.2 Model Characteristics

Parameter	Symbol	Min	TYP	MAX	Unit
Voltage for LED backlight	VbL	2.9	3.0	3.1	V
Supply Voltage for Logic	VDD	2.5	2.8	3.3	V
