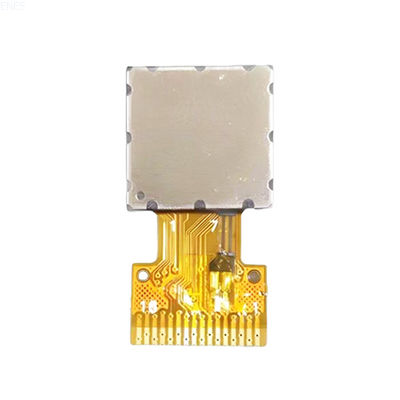

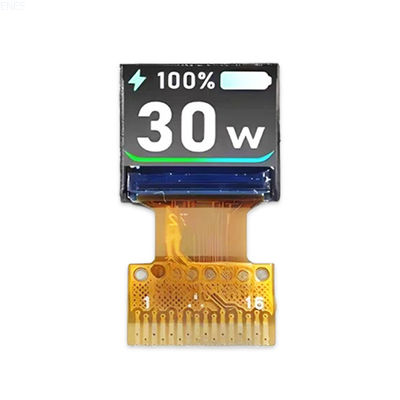

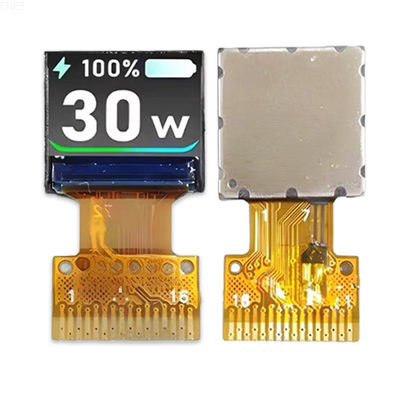

0.42'' Mini TFT Liquid Crystal Display Screen 96x54 IPS Viewing Angle 16 Pin ST7735P3

Large Image : 0.42'' Mini TFT Liquid Crystal Display Screen 96x54 IPS Viewing Angle 16 Pin ST7735P3

Product Details:

Place of Origin:	Shenzhen, China.
Brand Name:	SENS
Certification:	ROHS
Model Number:	T042B008
Document:	TFT042B008.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000/pcs
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/Month

Contact Now

Detailed Product Description

Driver IC:	ST7735P3	Interface:	4SPI
Operating Temperature:	-10~+60°c	Storage Temperature:	-20~+70°c
Module Size:	12.3212.091.5mm	Panel Active Area:	9.216*5.184mm
Viewing Direction:	ALL	NTSC:	65%Typ
Resolution:	96xRGBx54/Pixel	Display Mode:	Normally Black
Light Source:	1-LED Light
Highlight:	0.42'' mini tft display , 96x54 mini tft display , Mini TFT liquid crystal display screen

0.42'' Mini TFT Liquid Crystal Display Screen 96x54 IPS Viewing Angle 16 Pin ST7735P3

Product Specifications

Attribute	Value
Driver IC	ST7735P3
Interface	4SPI
Operating Temperature	-10~+60°C
Storage Temperature	-20~+70°C
Module Size	12.3212.091.5mm
Panel Active Area	9.216*5.184mm
Viewing Direction	ALL
NTSC	65%Typ
Resolution	96xRGBx54/Pixel
Display Mode	Normally Black
Light Source	1-LED light

Product Overview

0.42 inch Mini TFT Liquid Crystal Display Screen with a resolution of 96x54 supports IPS viewing angle and adopts 4SPI interface. The smallest color TFT screen with 16pin ST7735P3 driver IC.

Technical Details

Display Type	TFT LCD Display
Model No	T042B008
Display Size	0.42 inch
Resolution	96*54
FPC Connecting Method	16 Pin soldering FPC
Touch Panel	Without touch panel (support customization)

Key Features

High-quality industrial-grade display screen
White LED backlight source
High contrast ratio and wide viewing angle
LCD cutting section chipping ≤ 1/3 of thickness
Flat warpage ≤ 0.35 mm
Complies with RoHS directive

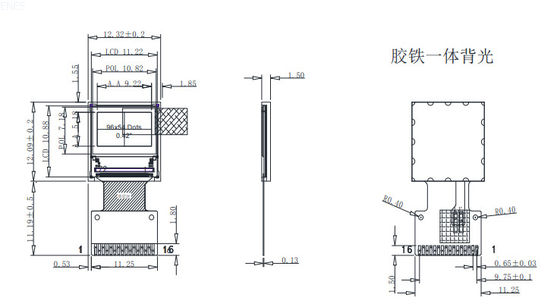

Compact structure: 12.32*12.09*1.5 mm
Extensive customization options available

Packaging Details

Put module into tray cavity
Tray stacking
Put 1 foam under the tray stack and 1 foam above
Fix the cardboard to the tray stack with adhesive tape
Put the tray stack into carton
Carton sealing with adhesive tape

Frequently Asked Questions

Q: Can I have my logo on the product?

A: Yes, our one-stop service can be customized according to customer requirements including ODM/OEM development, design, production and processing.

Q: Do you have other size models besides the 0.42-inch size?

A: Yes, we offer standard TFT LCD displays ranging from 0.42 inches to 15.6 inches with various resolution options (1024×600, 800×1280, 1200×1920, etc.), brightness specifications, and interface options (RGB, LVDS, MIPI, HDMI).

Q: What's the lead time?

A: Sample orders typically take 3-5 days when in stock. Batch production takes 4-5 weeks depending on quantity. We confirm orders after deposit receipt and notify you in advance if temporarily out of stock.

Q: Is sample verification supported?

A: Yes, you can order samples for project verification before placing a formal order.

Conclusion

Our Thin-Film Transistor Liquid Crystal Display (TFT LCD) modules feature high-quality display effects with durability and reliability, making them excellent for various industrial and commercial applications. We offer extensive customization options to meet specific display requirements. Contact us to learn more about our TFT LCD modules and how they can enhance your projects.
