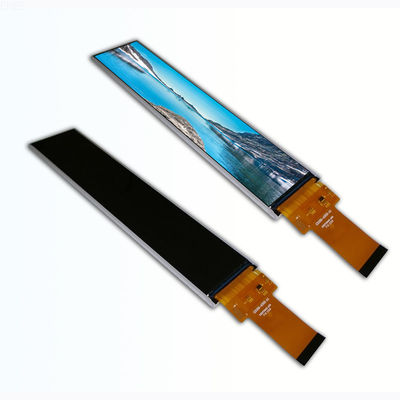

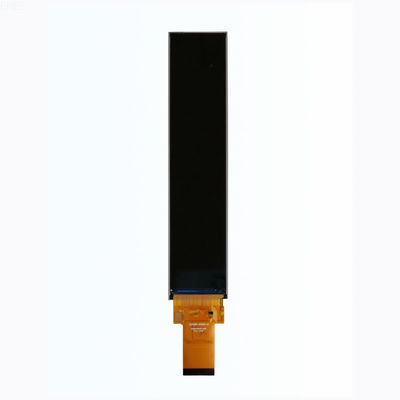

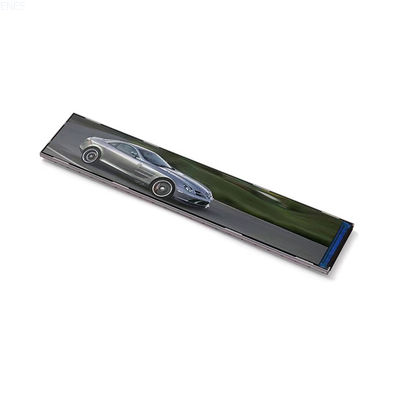

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
video play

Large Image :  6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX070-30RB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 7.0 Inch Resolution: 280(horizontal)*1424(Vertical)
Interface: MIPI Connect Type: Connector
Color Depth: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 0.12x0.12 0.12x0.12 Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: Normally Black Viewing Direction: ALL
Gray Scale Inversion Direction: ALL LCM (W X H X D) (mm): 38.20*181.47*3.5
Active Area(mm): 33.6 X 170.88 With /Without TSP: Without TSP
Weight (g): TBD LED Numbers: 8 LED
Customization: FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:

6.9 Inch tft lcd module

,

7.0 Inch tft lcd module

,

280x1424 bar tft

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
Product Specifications
Attribute Value
Size 7.0 inch
Resolution 280(horizontal)*1424(Vertical)
Interface MIPI
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Pixel pitch (mm) 0.12x0.12 0.12x0.12
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Viewing Direction ALL
Gray Scale Inversion Direction ALL
LCM (W x H x D) (mm) 38.20*181.47*3.5
Active Area(mm) 33.6 x 170.88
With /Without TSP Without TSP
Weight (g) TBD
LED Numbers 8 LED
Customization FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Product Details
  • Type: TFT
  • Supplier Type: Manufacture
  • Place of Origin: GUA
  • Brand Name: LCD MALL
  • Resolution: 280x1424
  • LCD TYPE: WXGA
  • Driver IC: T-CON
  • Interface: MIPI(LCM)+IIC(CTP)
  • Backlight LEDs: 8 chip white LED
  • Luminance: 400nits
  • Viewing Angle: ALL/IPS
  • OD Size (mm): 46.2* 199 * 4.8
  • AA Size (mm): 33.6 * 170.88
  • PIN number: 40PIN
Mechanical Drawing
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 0
Input/Output Terminals
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 1
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 2
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 3
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 4
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface 5
Frequently Asked Questions
Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, ISO9001 Certificate; RoHS Environmental Certification;
