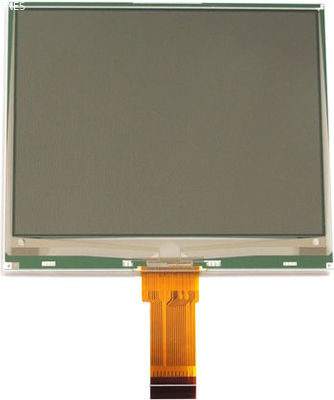

4.2'' E Paper Display With 400x300 Pixel For Price Label Display E Book

4.2'' E Paper Display With 400x300 Pixel For Price Label Display E Book

Large Image :  4.2'' E Paper Display With 400x300 Pixel For Price Label Display E Book

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: DEPT0420RWS830F17
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Detailed Product Description
Screen Size: 4.2 Inch Display Resolution: 400(H)×300(V)Pixel DPI:120
Active Area: 84.8×63.6mm Pixel Pitch: 0.212×0.212mm
Pixel Configuration: Rectangle Outline Dimension: 91 (H)×77 (V) ×1.2(D)mm
Weight: 16.1±0.3 IC: SSD1683
Highlight:

4.2'' e paper display

,

400x300 e paper display

,

Rectangle epaper monitor

4.2'' E Paper Display With 400x300 Pixel For Price Label Display E Book
Product Specifications
Attribute Value
Screen Size 4.2 inch
Display Resolution 400(H)×300(V)Pixel DPI:120
Active Area 84.8×63.6mm
Pixel Pitch 0.212×0.212mm
Pixel Configuration Rectangle
Outline Dimension 91 (H)×77 (V) ×1.2(D)mm
Weight 16.1±0.3
IC SSD1683
Product Overview

The DEPT0420RWS830F17 is an Active Matrix Electrophoretic Display (AM EPD) with interface and reference system design. This 4.2-inch display features 300×400 pixel resolution with 1-bit white, black, and red full display capabilities. The module integrates TFT-array driving electrophoresis technology with comprehensive circuitry including gate driver, source driver, MCU interface, timing controller, and power management components. Ideal for Electronic Shelf Label (ESL) systems and portable electronic devices.

Key Features
  • 300×400 pixels display resolution
  • High contrast and reflectance with ultra-wide viewing angle
  • Ultra low power consumption in pure reflective mode
  • Bi-stable display with commercial temperature range
  • Supports landscape and portrait display modes
  • Hard-coat antiglare display surface
  • Ultra low current deep sleep mode
  • On-chip display RAM and waveform storage options
  • Serial peripheral interface (SPI) available
  • Integrated voltage generation and temperature sensing
Interface Options

BS1 State MCU Interface:

  • Low state: 4-line serial peripheral interface (SPI) - 8 bits SPI
  • High state: 3-line serial peripheral interface (SPI) - 9 bits SPI

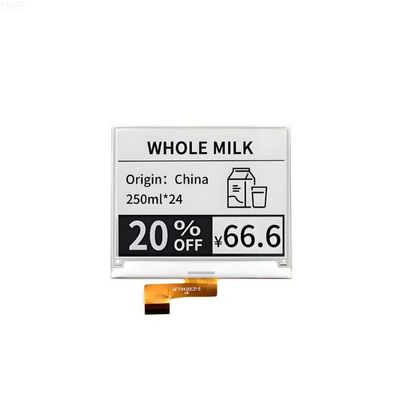

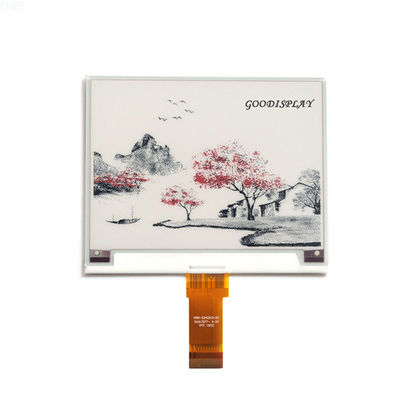

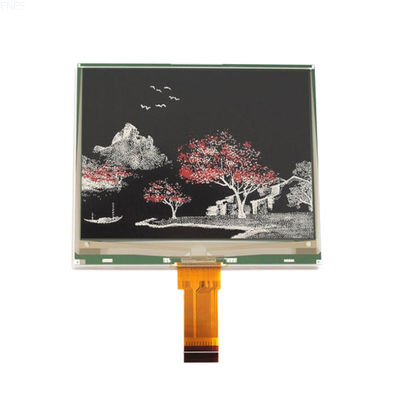

Product Images
Frequently Asked Questions
What is your company's experience and reputation in the industry?

Our company has 15 years of industry experience with a strong reputation for delivering high-quality products and excellent customer service to clients across various sectors.

Are there any certifications or standards that the product meets?

Yes, this product meets ISO9001 quality management standards and RoHS environmental certification requirements.
