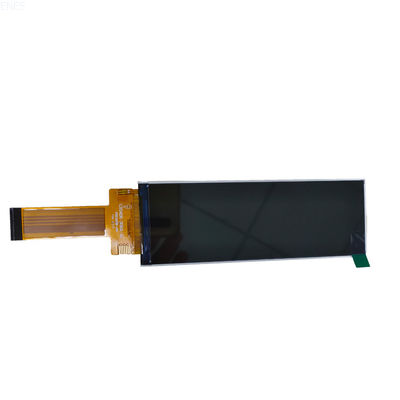

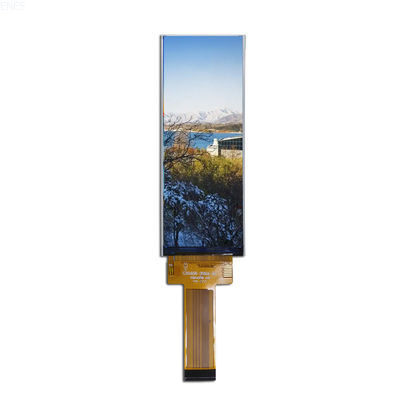

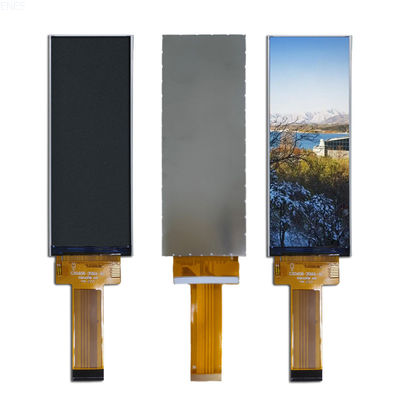

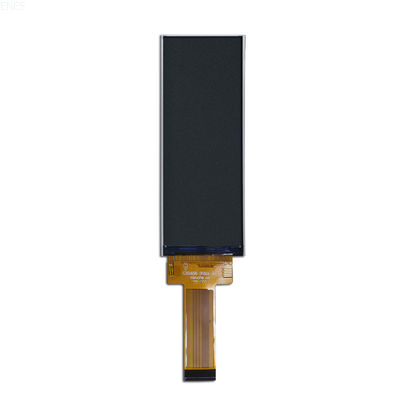

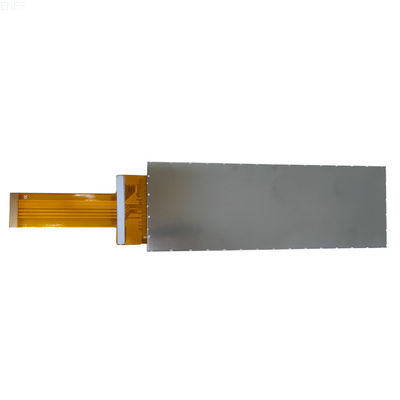

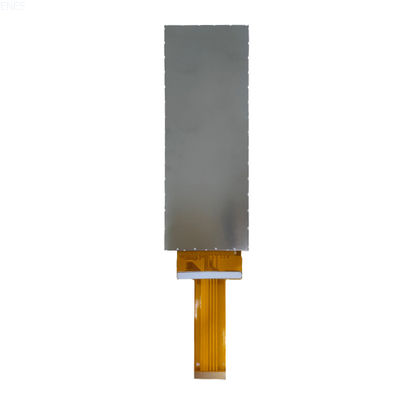

4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB

4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB
4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB
video play

Large Image :  4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX037-40RB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Panel Size: 4.58 Inch Resolution: 320(horizontal)*960(Vertical)
Interface: 2 Lane Mipi Connect Type: Connector
Color Depth: 16.7M Technology Type: A-Si
Luminance: 350cd/m2 Operating Temp: -20~70
Storage Temp: -30~80 Pixel Pitch (um): 114.9x114.9
Pixel Configuration: R.G.B. Vertical Stripe Display Mode: Normally Black
LCD Driver IC: - Viewing Direction: ALL
Gray Scale Inversion Direction: ALL LCM (W X H X D) (mm): 41.57*118.8*2.5
Active Area(mm): 36.768 X 110.304 With /Without TSP: Without TSP
LED Numbers: 8 LED Customization: FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:

4.58 Inch Bar Type TFT LCD

,

4.6in Bar Type TFT LCD

,

320x960 tft display lcd

4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB
Product Specifications
Panel Size 4.58 inch
Resolution 320(horizontal) × 960(Vertical)
Interface 2 Lane mipi
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Luminance 350cd/m²
Operating Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Pixel pitch (um) 114.9 × 114.9
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Viewing Direction ALL
Gray Scale Inversion Direction ALL
LCM Dimensions (W × H × D) 41.57 × 118.8 × 2.5 mm
Active Area 36.768 × 110.304 mm
Touch Screen Panel Without TSP
LED Numbers 8 LED
Customization Options

FPC (Shape, Pin Definition, Connector, EMI Film)

Backlight (Dimension, Using Life, LED Color, Luminance)

Touch Panel (Shape, Dimension, FPC, Touch Points)

Product Overview

The TX037-40RB-A1 4.58 inch bar type TFT LCD display offers exceptional quality and performance with its 320×960 resolution and ST7701S SPI RGB interface. This display features a 2 Lane mipi connection, 16.7M color depth, and operates across a wide temperature range from -20°C to 70°C.

We believe this product provides an unbeatable combination of quality, performance, and value. Please contact us with any questions about how this display can benefit your application.

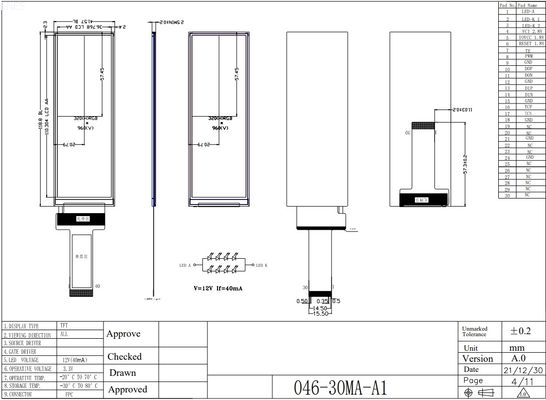

Technical Documentation
4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB 0 4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB 1 4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB 2 4.6 4.58 Inch Bar Type TFT LCD 320x960 TFT Display LCD ST7701S SPI RGB 3
Frequently Asked Questions
Q: What is your company's experience and reputation in the industry?
A: Our company has 15 years of experience with a strong reputation for delivering high-quality products and excellent customer service across various industries.
Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets ISO9001 and RoHS environmental certification standards.
