5.83'' 640X480 3 Colors Red Black White EPaper Display Electronic Tag Eink Screen

Large Image : 5.83'' 640X480 3 Colors Red Black White EPaper Display Electronic Tag Eink Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T058EDP01A

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~10 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Display Type:	EPaper Display	Model No.:	T058EDP01A
Display Size:	5.83 Inch	Display Color:	Black+White+Red
Resolution:	648x480	Driver IC:	JD79686AB
Nterface:	SPI	Viewing Angle:	>170°
Dot Pitch:	0.1833x0.1838mm	Outline Dimension:	125.40(H)x99.50 (V)x1.20(D)mm
Active Area:	118.78(H)x88.22(V)mm	FPC Connecting Method:	24 Pin Plug In FPC
Touch Panel:	Without Touch Panel,support Customization	Testing Board:	Optional
Datasheet & Initial Code:	Please Contact Service	Customization:	Welcomed
Weight:	28.6+0.5g
Highlight:	5.83'' Character LCD Module , 3 Colors Character LCD Module , 640X480 epaper display

5.83'' 640×480 3 Colors Red Black White EPaper Display Electronic Tag Eink Screen

Product Specifications

Attribute	Value
Display Type	ePaper Display
Model No.	T058EDP01A
Display Size	5.83 inch
Display Color	Black+White+Red
Resolution	648×480
Driver IC	JD79686AB
Interface	SPI
Viewing Angle	>170°
Dot Pitch	0.1833×0.1838mm

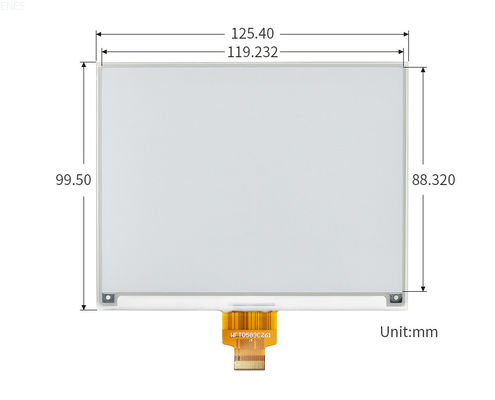

Outline Dimension	125.40(H)×99.50 (V)×1.20(D)mm
Active Area	118.78(H)×88.22(V)mm
FPC Connecting Method	24 Pin Plug in FPC
Touch Panel	Without touch panel, support customization
Testing Board	Optional
Datasheet & Initial Code	Please contact service
Customization	Welcomed
Weight	28.6±0.5g

Product Description

5.83 inch 640×480 3 Colors Red Black White ePaper Display Colorful Electronic Tag Eink Screen for Super Market Price Tag Shelf Label

Key Features

No need backlight, can keep displaying the content of last page after power off
Very low power consumption, basically power consumed while reflashing only
Super wide viewing angle (>170°)
Ultra-low current deep sleep mode
Provide serial peripheral interface
Pure reflective displaying mode

Technology Advantage

The e-ink screen uses the "microencapsulated electrophoretic display" technology to display images, and its working principle is that the dots of nanoparticles suspended in the liquid are migrated by the electric field, and the display effect is close to that of traditional printed paper through reflection under ambient light. The e-ink screen can clearly display the picture in lighting, natural light and other environments, without backlight, and the viewing Angle can reach almost 180°. Because it is comparable to the display effect of traditional paper, it is often used in applications such as readers.

Frequently Asked Questions

1. How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products. If it's not fit, we will do the necessary adjustment & customization.

2. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ).

3. What are the payment terms?

We usually accept T/T, Paypal, other terms to be negotiated.

4. What's the lead time?

Usually 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (basing on the quantity and particular product).
