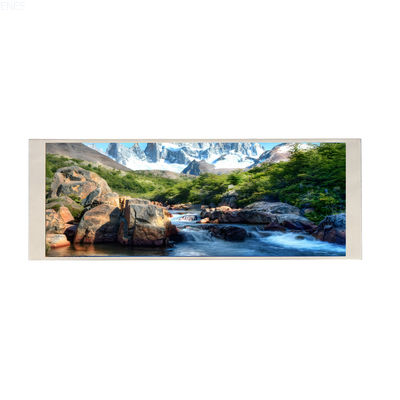

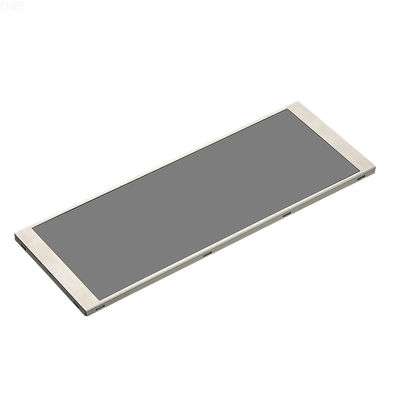

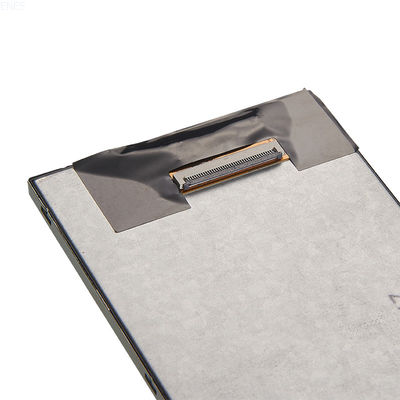

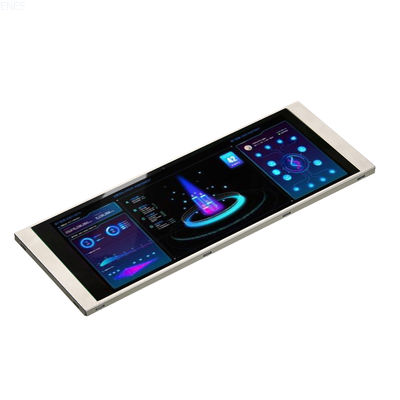

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
video play

Large Image :  6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T068601G01-24M
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 6.86inch Panel Type: IPS
Resolution: 480xRGBx1280 Display Mode: Normally Black
Number Of Colors: 16.7M Viewing Direction: ALL
NTSC: 50%Typ Contrast Ratio: 1500Typ
Luminance: 300cd/m2 Module Size: 66.41(H)x177.19(V)x4.45(D）mm
Panel Active Area: 60.22*160.59mm Pixel Pitch: 125.4(H) X 125.4(V)mm
Pixel Arrangement: RGB Vertical Stripe Driver IC: FL7707N
Light Source: 12 LEDS Light Interface: MIPI
Operating Temperature: -20~+70℃ Storage Temperature: -30~+80℃
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

6.86 Inch tft lcd display

,

480x1280 tft lcd display

,

FL7707N bar display

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
Product Specifications
Attribute Value
LCD Size 6.86inch
Panel Type IPS
Resolution 480xRGBx1280
Display Mode Normally Black
Number of Colors 16.7M
Viewing Direction ALL
NTSC 50%Typ
Contrast Ratio 1500Typ
Luminance 300cd/m2
Module Size 66.41(H)x177.19(V)x4.45(D)mm
Panel Active Area 60.22*160.59mm
Pixel Pitch 125.4(H) x 125.4(V)mm
Pixel Arrangement RGB Vertical stripe
Driver IC FL7707N
Light Source 12 LEDS light
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Details

6.86 inch bar display with 480x1280 TFT LCD Display Without or with Touch Screen LCD Backlight MIPI Interface

Key Features
  • Display Type: 6.86" TFT+TP (can customize)
  • Viewing Direction: 80/80/80/80
  • Polarizer Mode: IPS/Transmissive/NormallyBlack
  • Operating Temp: -20~70℃
  • Storage Temp: -30~80℃
  • Unmarker Tolerance: ±0.20
  • Protection: ROHS
Applications

The 6.86 inch TFT LCD module can be widely used in household appliances such as washing machine, refrigerator, audio, oven, ventilator and more.

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen 0 6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen 1
Pin Assignments
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen 2 6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen 3
Electrical Specification
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen 4
Frequently Asked Questions
Q1: Are you manufacturer?

A: Yes, we are manufacturer.

Q2: How long is your delivery time?

A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it, what should I do?

A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?

A: Yes, we do. We can design according to your requirement, MOQ usually 100-1000.

Q5: Do you accept pay 30% in advance?

A: Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.

Q6: What payment terms you accept?

A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
