40 Pin RGB To HDMI Adapter Board HDMI TFT LCD Display

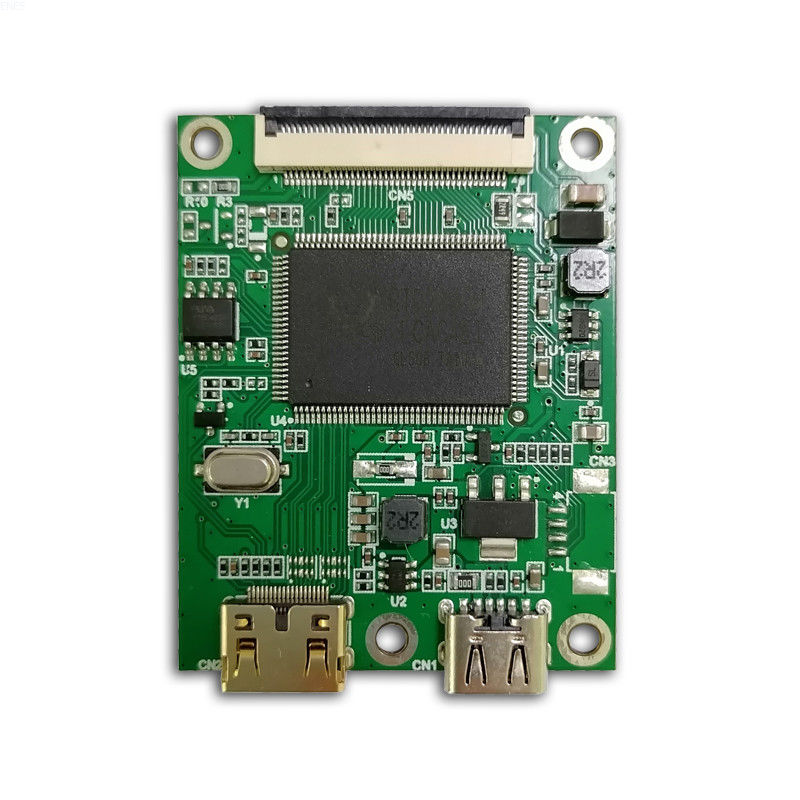

Large Image : 40 Pin RGB To HDMI Adapter Board HDMI TFT LCD Display

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	LRX_H2TTL40SPI

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Signal Input:	1 HDMI	Signal Output:	18BIT TTL Output
Power:	5V Input, Standby Power: <0.5W	CN2:	External HDMI Input Interface
CN1:	TYPEC Power Input	CN5:	TTL LCD Interface
Highlight:	40 Pin tft lcd controller board , tft lcd controller board , 40 Pin hdmi tft lcd display

40pin RGB to HDMI Adapter Board HDMI TFT LCD Display

General Description

LRX_H2TTL40SPI use for HDMI signal input display on the TTL LCD.LRX_H2TTL40SPI is a display solution driver board.

Structural Dimension Diagram

40 Pin RGB To HDMI Adapter Board HDMI TFT LCD Display 0

Interface Definition

1. CN2: MINI HDMI input interface

40 Pin RGB To HDMI Adapter Board HDMI TFT LCD Display 1

2.CN5: TYPEC Power interface

40 Pin RGB To HDMI Adapter Board HDMI TFT LCD Display 2

General Precautions

Keep the board away from strong electrostatic.

Disconnect main power if power of panel is incorrect, otherwise you would destroyed the LCD module.

Avoid dropping metal in the board while it is working.

Do not push or pull the connector while the board is working.

Do not disassemble the module.

If the surface of the main board is dirty, clean it with soft (not wet) cloth.
