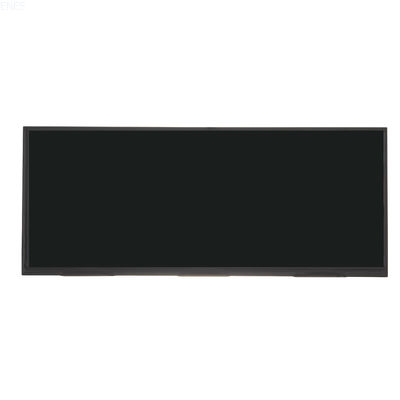

12.3 Inch 1920x720 LVDS Stretched Bar LCD Display For Car Odometer
Product Specifications
| Attribute |
Value |
| LCD Size |
12.3 inch |
| LCM Dimension |
307(W) × 125.5(H) × 7.7(T)mm |
| LCD Active Area |
292.03 × 109.51mm |
| Number Of Dots |
1920 × RGB × 720 |
| LCD Type |
a-Si TFT |
| Viewing Direction |
ALL |
| Interface Type |
LVDS |
| Operating Temperature |
-30℃ to 80℃ |
| Storage Temperature |
-30℃ to 85℃ |
| Backlight Type |
48 LEDs |
| Custom Service |
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
Product Overview
The 12.3 Inch 1920x720 Stretched Bar LCD Display is a high-performance TFT LCD solution specifically designed for automotive odometer applications. This advanced display combines exceptional image quality with robust durability to meet the demanding requirements of modern vehicle instrumentation.
With an active display area of 292.03 × 109.51mm, this LCD provides ample space for crisp, high-resolution content. The 1920 × RGB × 720 resolution ensures sharp visuals, while the LVDS interface guarantees reliable data transmission.
Key Features
- Wide operating temperature range (-30℃ to 80℃) for automotive environments
- Omnidirectional viewing angle (85/85/85/85) for clear visibility from any position
- Energy-efficient 48-LED backlight system with consistent brightness
- Robust construction with a-Si TFT technology for long-term reliability
- Customization options including touch panels and interface configurations
Frequently Asked Questions
Q1: Are you manufacturer?
A: Yes, we are manufacturer.
Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
Q3: If the products can't work after receiving it, what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.
Q4: Do you accept OEM design?
A: Yes, we do. We can design according to your requirement, MOQ usually 100-1000.
Q5: Do you accept pay 30% in advance?
A: Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.
Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
