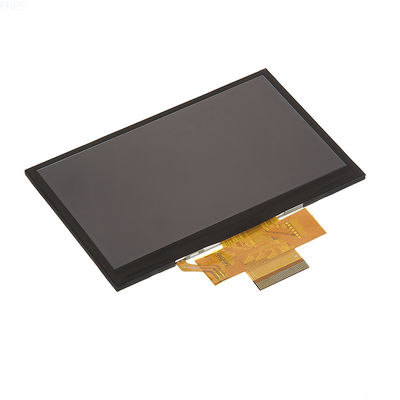

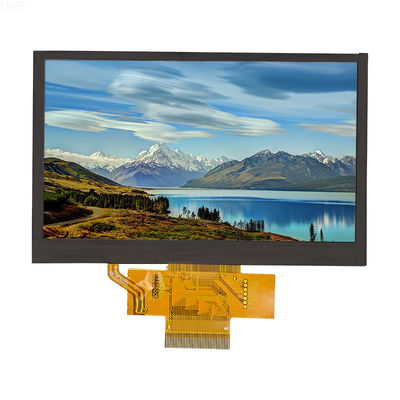

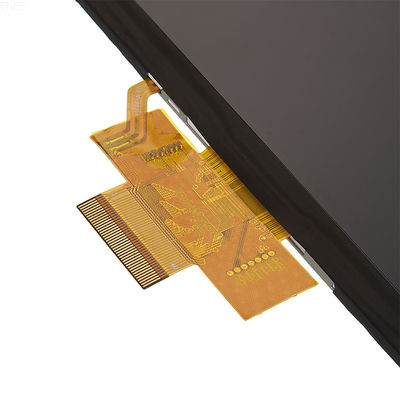

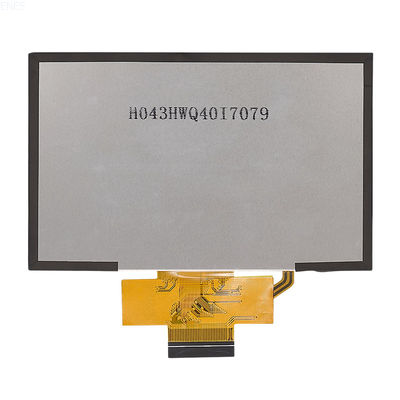

4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module

4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module
4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module
video play

Large Image :  4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T043HWQ40I7079
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~10 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 4.3 Inch Touch Screen: No Touch (customizable Touch)
Display Format: 480 (RGB) × 272 Interface: 40pin 24-bit RGB
Color Depth: 16.7M Technology Type: A-Si
Display Spec: 0.198 X 0.198 Display Mode: Normally Black
Driver IC: SC7283 Surface Treatment: HC
Viewing Direction: ALL LCM (W X H X D) (mm): 105.40*67.15*2.90
Active Area(mm): 95.04 X 53.86 LED Numbers: 12LEDs
Operating Temp: -30°C~+85°C Storage Temp: -30°C~+85°C
Operating Voltage: VCC=3.3V TYP Luminance: 700 Nits
Highlight:

480×272 Wide Temperature LCD

,

RGB Wide Temperature LCD

,

4.3in tft lcd module

4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module
Product Specifications
Attribute Value
LCD Size 4.3 inch
Touch Screen No touch (customizable touch)
Display Format 480 (RGB) × 272
Interface 40pin 24-bit RGB
Color Depth 16.7M
Technology type a-Si
Display Spec 0.198 x 0.198
Display Mode Normally Black
Driver IC SC7283
Surface Treatment HC
Viewing Direction ALL
LCM (W x H x D) (mm) 105.40*67.15*2.90
Active Area(mm) 95.04 x 53.86
LED Numbers 12LEDs
Operating Temp -30°C~+85°C
Storage Temp -30°C~+85°C
Operating Voltage VCC=3.3V TYP
Luminance 700 nits
Product Description

4.3-inch Display 480×272 RGB Interface Wide Temperature LCD Screen TFT-LCD Module

This 4.3-inch TFT IPS LCD module delivers exceptional performance with its RGB interface support, ensuring clear picture quality at 480×272 resolution with bright, full colors. IPS technology provides excellent visual effects and wide viewing angles. The module's wide temperature performance makes it adaptable to various environments, capable of withstanding both high and low temperatures. Ideal for industrial control systems and outdoor instruments, this display module offers reliable, high-quality visual performance and interactive experience for equipment.

4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module 0
Frequently Asked Questions
Q: How can I find the right product?
A: Please send us your requirements, we will recommend our standard products. If they don't fit, we will make necessary adjustments and customizations.
Q: How to customize the product?
A: Customization process: Project scope clarification → Fill ESEN Requirement Form → Engineering analysis → Cost evaluation → Customer confirmation → Provide drawing → Customer confirmation → Sampling → Customer approval → Mass production.
Q: Do you accept sample orders or small quantity orders?
A: Yes, you can place sample orders for testing first, and small quantity orders for pilot production (no less than MOQ).
Q: What are the payment terms?
A: We usually accept T/T, L/C, with other terms negotiable.
Q: What's the lead time?
A: Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and product specifications).
4.3 Inch Display 480×272 RGB Wide Temperature LCD Screen TFT LCD Module 1
