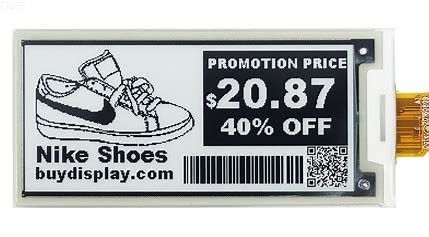

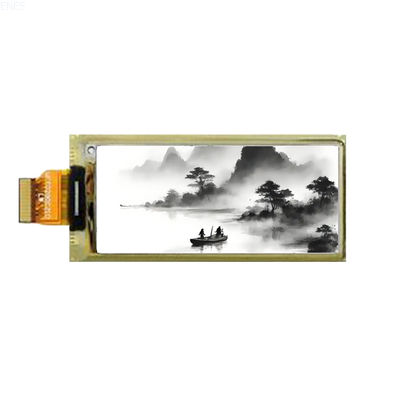

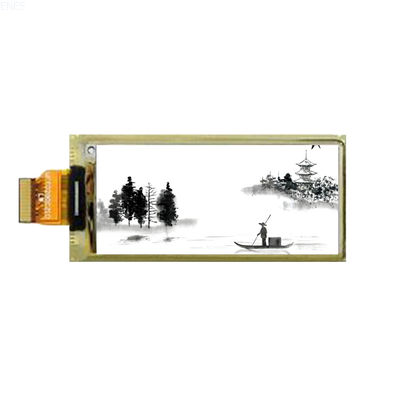

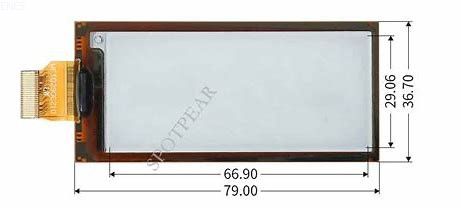

2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle

Over View

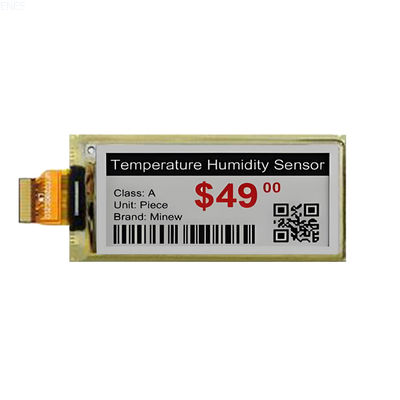

EDEP0290RHS75BF6 V1.2 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display image at 1-bit white,black and red full display capabilities. The 2.9inch active area contains 296×128 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Features

◆296×128 pixels display

◆High contrast High reflectance

 ◆Ultra wide viewing angle Ultra low power consumption

◆Pure reflective mode

◆Bi-stable display

◆Commercial temperature range

◆Landscape portrait modes

◆Hard-coat antiglare display surface

◆Ultra Low current deep sleep mode

◆On chip display RAM

◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available

◆On-chip oscillator

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

◆12C signal master interface to read external temperature sensor

◆Built-in temperature sensor

•
•
• Input/output Pin Assignment
•
•
•
