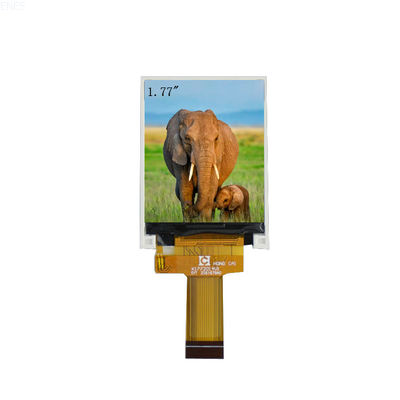

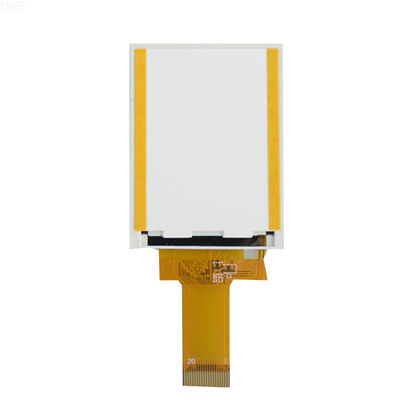

St7735S LCD Mini TFT Display 1.77 Inch 128 X 160 SPI Interface MCU

Large Image : St7735S LCD Mini TFT Display 1.77 Inch 128 X 160 SPI Interface MCU

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-177B2014

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.77-inch	Dimension:	34.70（W）* 46.70（H） *2.30(T)
Active Area:	28.03* 35.04	Number OfDots:	128 * RGB * 160
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7735S	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	2 LEDs	Luminance:	180min /cd~200typ/Cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	St7735S Mini TFT Display , LCD Mini TFT Display , 128 X 160 small tft display

ST7735S LCD Mini TFT Display - 1.77 Inch 128×160 SPI Interface MCU

Product Specifications

Attribute	Value
Size	1.77-inch
Dimension	34.70(W) × 46.70(H) × 2.30(T)
Active Area	28.03 × 35.04
Number of Dots	128 × RGB × 160
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7735S
Interface Type	MCU
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Backlight Type	2 LEDs
Luminance	180min/cd to 200typ/Cd
Custom Service	FPC, CTP, RTP, pin definition, packing, HD-MI board

Product Description

This 1.77-inch TFT LCD module with ST7735S driver IC is specifically designed for e-cigarette applications. The display offers clear 128×160 resolution data visualization with fast and stable communication through MCU SPI interface.

Key Features:

High-quality 1.77-inch TFT LCD module
128×160 resolution for clear display
MCU SPI interface for stable communication
Optional touch panel for enhanced interaction
IPS technology for bright colors and wide viewing angles
Compact design optimized for e-cigarette applications

Frequently Asked Questions

Notes:

Please check both appearance and function of products prior to installation. Any damage caused by improper use or unprofessional installation is not covered under warranty.

Lead time (after payment is confirmed):

Sample: 1-10 working days
Volume: 30 working days

Warranty:

12 months warranty (Please find more details via our datasheet by item of Limited Warranty)
