1.77 Inch LCD Mini TFT Display 128 X RGB X 160 ST7735 Driver IC SPI Interface

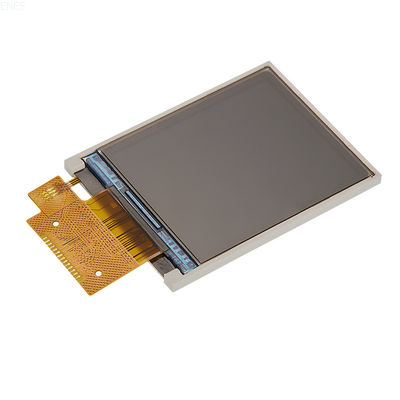

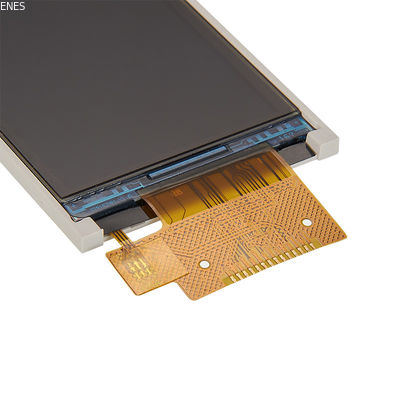

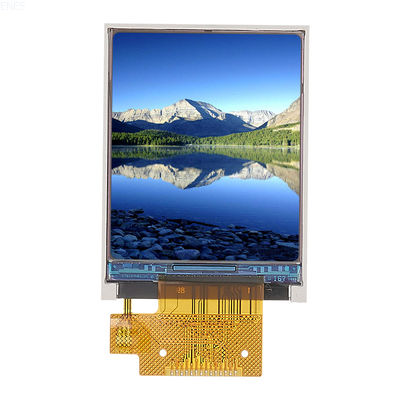

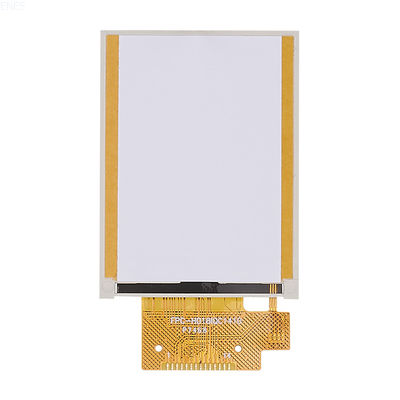

Large Image : 1.77 Inch LCD Mini TFT Display 128 X RGB X 160 ST7735 Driver IC SPI Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T0180IQC14T2510

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	Size 500x380x200, 120pcs/box
Delivery Time:	3-4 weeks
Payment Terms:	T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	1.77 Inch	Display Format:	128 (RGB) ×160
Interface:	4 SPI	Color Depth:	262 K
Technology Type:	A-Si	Driver IC:	ST7735S
Surface Treatment:	HC	Viewing Direction:	6 O’clock
Gray Viewing Direction:	12 O’clock	LCM (W X H X D) (mm):	34(W ) ×45.83(H)×2.3(T)
Active Area(mm):	29.03(W) ×36.14(H) Mm	With /Without TSP:	Without TSP
Weight (g):	TBD	LED Numbers:	2 LEDs
Operation Temperature:	-20°C TO 70°C	Storage Temperature:	-30°C TO 80°C
Highlight:	1.77 Inch Mini TFT Display , LCD Mini TFT Display , ST7735 small tft screen

1.77 Inch LCD Mini TFT Display 128 X RGB X 160 ST7735 Driver IC SPI Interface

Product Specifications

Attribute	Value
LCD Size	1.77 inch
Display Format	128 (RGB) ×160
Interface	4 SPI
Color Depth	262 K
Technology type	a-Si
Driver IC	ST7735S
Surface Treatment	HC
Viewing Direction	6 O'clock
Gray Viewing Direction	12 O'clock
LCM Dimensions (W x H x D) (mm)	34(W) × 45.83(H) × 2.3(T)
Active Area (mm)	29.03(W) × 36.14(H)
With/Without TSP	Without TSP
Weight (g)	TBD
LED Numbers	2 LEDs
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Description

1.77 Inch TFT LCD 128 X RGB X 160 Resolution ST7735 Driver IC SPI Interface With Customized FPC And TP.

Note 1: Viewing direction is following the data which measured by optics equipment.

Note 2: Requirements on Environmental Protection: RoHS

Note 3: LCM weight tolerance: +/- 5%

Mechanical Drawing

Backlight Circuit

Precautions for Use of LCD Modules

Storage Precautions

When storing the LCD modules, avoid exposure to direct sunlight or to the light of fluorescent lamps.
The LCD modules should be stored under the storage temperature range. If the LCD modules will be stored for a long time, the recommend condition is: Temperature: 0℃ - 40℃, Relative humidity: ≤80%
The LCD modules should be stored in the room without acid, alkali and harmful gas.

Transportation Precautions

The LCD modules should be no falling and violent shocking during transportation, and also should avoid excessive press, water, damp and sunshine.
