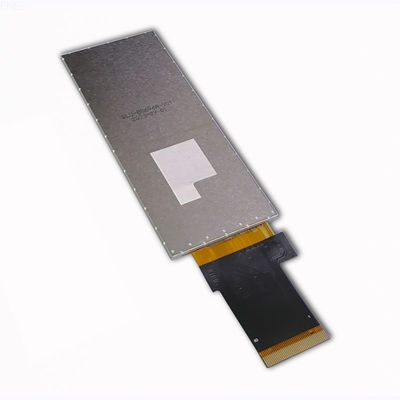

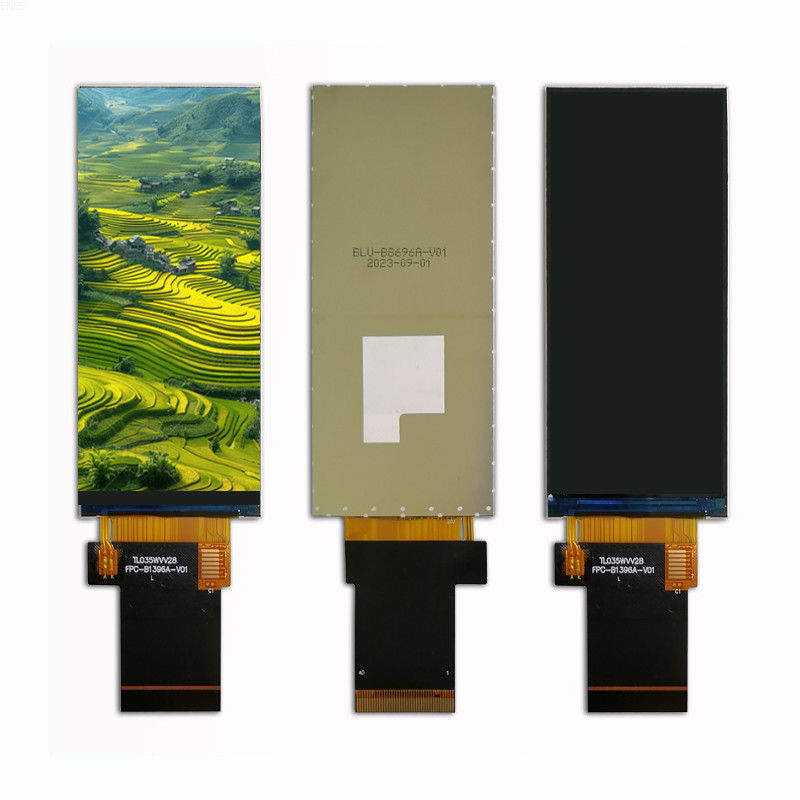

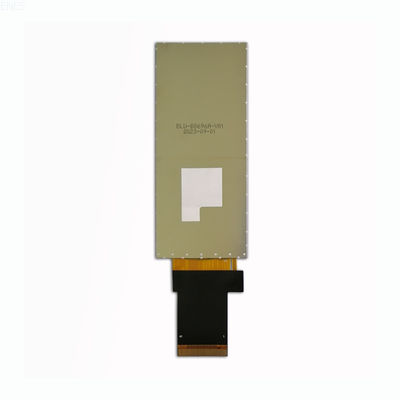

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S
3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S
video play

Large Image :  3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX03540RH-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~15 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Panel Size: 3.5 Inch Number Of Pixels: 340(RGB)×800
LCD Type: A-Si TFT Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: IPS/Transmissive/Normally Black Viewing Direction: All
H XV X T (mm): 36.67(H) ×88.45(V)×1.65(T) Active Area(mm): 33.97 (H)×81(V)
With /Without Touch Screen: Without Match Connector Type: 0.5 PITCH 40PIN
Backlight Type: White LED Interface: 3SPI+18RGB
Number Of Color: 262K Driver IC: ST7701S
Custom Service: Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:

340x800 capacitive touch screen

,

3.5'' capacitive touch screen

,

RGB capacitive touch panel

3.5 Inch 340x800 Resolution SPI RGB Interface Customizable CTP Capacitive Touch Screen ST7701S

This is our 3.5-inch LCD screen, featuring a customizable capacitive touch screen. With a resolution of 340x800, the image is clear and bright, making it easy to connect and adapt to systems with RGB and SPI interfaces. The TP technology enables it to support various and sensitive touch methods. This touch screen is a reliable and user-friendly solution that enhances convenience and functionality for your devices, whether it's DIY projects, embedded systems, or even small industrial applications. With its perfect size, it fits into designs with limited space without compromising performance.

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S 0

Pin Assignment

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S 1

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S 2

Block Diagram

3.5'' 340x800 Capacitive Touch Screen SPI RGB Interface Custom CTP ST7701S 3

FAQ

1. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

2. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.

3.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

4.What’s your order process?
evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
