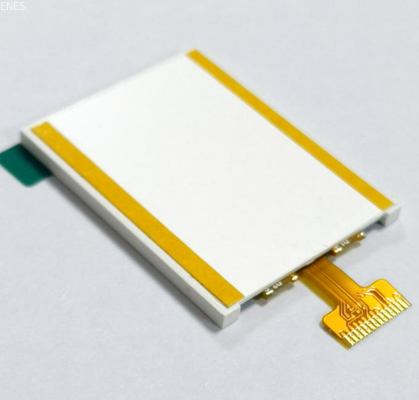

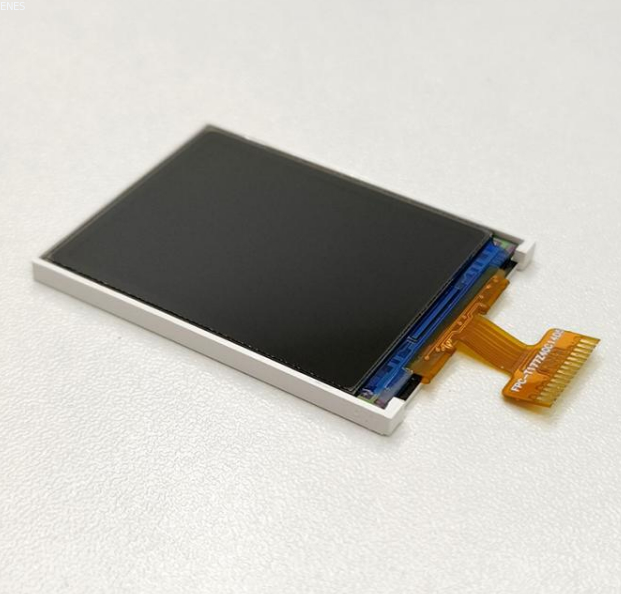

1.77 Inch SPI TFT LCD Module 128x160 Resolution with Optional Touch

Large Image : 1.77 Inch SPI TFT LCD Module 128x160 Resolution with Optional Touch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TFT177DG

Payment & Shipping Terms:

Minimum Order Quantity:	2000 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	15~20 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

Custom Service:

Provide Customized Services

Highlight:

1.77 inch SPI TFT LCD module

128x160 resolution TFT display

touch screen mini TFT

Anti-Glare 1.77 Inch SPI TFT LCD Module

The TFT177DG is a 1.77-inch TFT LCD module with 128*160 resolution, designed for vertical mode display. Featuring an 8-bit MPU interface, it's ideal for handheld devices, medical equipment, and consumer electronics.

Key Specifications

Product	1.77 Inch TFT Display
Resolution	128*160
Touch Screen	Optional
Interface	SPI
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Certification	ISO9001:2015 / ISO1400:2015
Compliance	REACH & RoHS Compliant

Technical Features

ST7735 IC (compatible with ILI9163V IC)
Power supply voltage range: 2.6V to 3.3V (typical 2.8V)
Anti-glare surface for optimal visibility in bright environments
Viewing direction: 12:00
Surface luminance: 200 Cd/m²
LED lifetime: 40,000 hours

Pin Configuration

No.	Symbol	Function
1	NC	No connection
2	GND	System ground
3	BL_K	Backlight LED Cathode
4	BL_A	Backlight LED Anode
5	GND	System ground
6	RESET	Reset Signal pin ("Low" is enable)
7	RS	Data or command select pin
8	SDA	Serial data input/output PIN
9	SCK	Serial interface Clock input
10	IOVCC	Power supply(1.8)
11	VCC	Power supply(2.8)
12	CS	Chip Selected ("Low" is enable)
13	GND	System ground
14	NC	No Connection

Application Scenarios

Portable Consumer Electronics

Wearable devices: Smartbands, health monitors
Handheld gadgets: Miniature gaming consoles, portable audio players

Industrial Control & Automation

HMI (Human-Machine Interface) panels
Test & measurement equipment displays

IoT & Smart Home

Smart thermostats & climate controllers
Connected device dashboards

Automotive & Marine Aftermarket

Secondary information displays
OBD-II scanner interfaces

Medical & Laboratory Devices

Portable medical monitors
Diagnostic equipment interfaces

Frequently Asked Questions

Q1: What is the exact active area size of the display?

A: The active viewing area is typically ~35.8mm (W) x ~44.8mm (H) for a 1.77-inch diagonal screen with a 128x160 resolution.

Q2: Why should I choose an SPI interface over a parallel one?

A: SPI is ideal for applications with limited microcontroller GPIO pins, using only 3-4 data pins plus power.

Q3: Which controllers are these displays typically based on?

A: Commonly driven by ST7735S or ILI9163 controllers, widely supported by open-source libraries.

Q4: Does the "Touch Screen Optional" mean I can add it later?

A: No, you must choose at the time of purchase whether you want the module with or without the touch panel.

Q5: What type of touch technology is used?

A: For this display, the touch screen is a Resistive Touch Panel (RTP), a cost-effective solution.
