Product Description:
The Mini TFT Display is a versatile SPI LCD module that is designed to meet the needs of various application scenarios, including Portable Consumer Electronics, Industrial Control & Automation, IoT & Smart Home, Automotive & Marine Aftermarket, and Medical & Laboratory Devices. This TFT LCD display features a resistive touch panel (RTP), offering a cost-effective touch solution for users.
FAQ Q1: The active viewing area of this TFT LCD touch display is typically ~35.8mm (W) x ~44.8mm (H) for a 1.77-inch diagonal screen with a resolution of 128x160. This ensures clear and detailed visuals for your projects.
FAQ Q5: The touch screen of this display is a Resistive Touch Panel (RTP), providing an affordable touch interface option for users. This makes it suitable for a wide range of applications where touch interaction is needed.
Features:
-
Product Name: Mini TFT Display
-
FAQ Q3: Commonly driven by ST7735S or ILI9163 controllers, widely supported by open-source libraries.
-
Technical Features:
-
ST7735 IC (compatible with ILI9163V IC)
-
Power supply voltage range: 2.6V to 3.3V (typical 2.8V)
-
Anti-glare surface for optimal visibility in bright environments
-
Viewing direction: 12:00
-
Surface luminance: 200 Cd/m²
-
LED lifetime: 40,000 hours
-
Resolution: 128*160
-
FAQ Q4: No, you must choose at the time of purchase whether you want the module with or without the touch panel.
-
Interface: SPI
Technical Parameters:
|
Product Name
|
1.77 Inch SPI TFT LCD Module 128x160 Resolution with Optional Touch
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Storage Temperature
|
-30°C to +80°C
|
|
Touch Screen
|
Optional
|
|
Interface
|
SPI
|
|
Resolution
|
128*160
|
|
Technical Features
|
ST7735 IC (compatible with ILI9163V IC), Power supply voltage range: 2.6V to 3.3V (typical 2.8V), Anti-glare surface for optimal visibility in bright environments, Viewing direction: 12:00, Surface luminance: 200 Cd/m², LED lifetime: 40,000 hours
|
|
Product Category
|
Mini TFT Display
|
Applications:

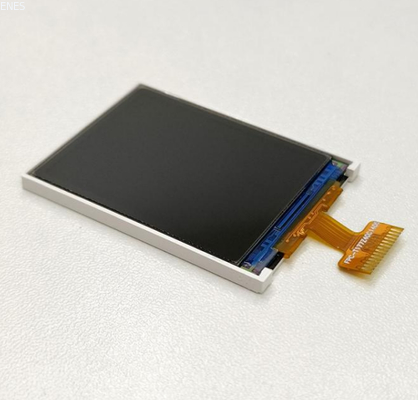

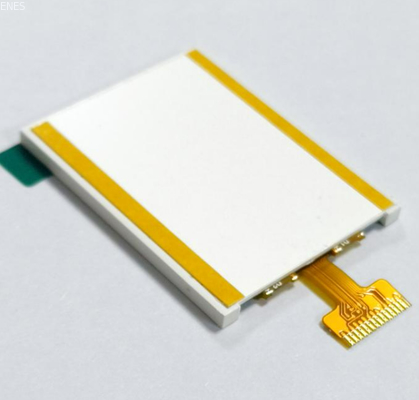

ESEN Mini TFT Display (Model: TFT177DG) is a versatile TFT LCD screen suitable for various application scenarios. With a resolution of 128*160, this SPI TFT LCD display provides clear and vibrant visuals for different purposes.
Whether you are in need of a reliable display for Portable Consumer Electronics, Industrial Control & Automation systems, IoT & Smart Home devices, Automotive & Marine Aftermarket products, or Medical & Laboratory Devices, the ESEN Mini TFT Display is a perfect fit.
When it comes to purchasing this product, the Minimum Order Quantity is 2000 PCS. The Payment Terms accepted include L/C and T/T, and the Price is negotiable based on your order requirements. With a Supply Ability of 500K per month, you can rely on ESEN to fulfill your bulk orders promptly.
For quality assurance, the Mini TFT Display is ISO9001/ISO14001 certified and originates from Shenzhen, China. The Delivery Time for your orders typically ranges from 15 to 20 working days. The Packaging Details ensure safe transit with cartons, cardboard, EPE, and blister trays.
Operating within a temperature range of -20°C to +70°C, this TFT LCD screen from ESEN offers durability and performance in various environments. It also provides the option of a touch panel, allowing you to choose the desired configuration at the time of purchase.
Support and Services:
Our Product Technical Support team is dedicated to assisting customers with any issues related to the Mini TFT Display. Our experts are available to provide guidance on installation, troubleshooting, and maintenance to ensure optimal performance of the product.
In addition to technical support, we offer a range of services for the Mini TFT Display, including customization options, repair and replacement services, and software updates. Our goal is to provide comprehensive support to meet the needs of our customers and help them maximize the value of their investment in our product.
Packing and Shipping:
Product Packaging and Shipping:
Our Mini TFT Display is carefully packaged to ensure safe delivery to your doorstep. Each display is wrapped in protective bubble wrap and placed in a sturdy cardboard box to prevent any damage during shipping.
We offer fast and reliable shipping options to ensure that you receive your Mini TFT Display in a timely manner. Once your order is processed, you will receive a tracking number so you can monitor the status of your shipment.
FAQ:
Q: What is the brand name of the Mini TFT Display?
A: The brand name of the Mini TFT Display is ESEN.
Q: What is the minimum order quantity for the Mini TFT Display?
A: The minimum order quantity for the Mini TFT Display is 2000 PCS.
Q: What are the accepted payment terms for purchasing the Mini TFT Display?
A: The accepted payment terms for purchasing the Mini TFT Display are L/C and T/T.
Q: What is the supply ability of the Mini TFT Display per month?
A: The supply ability of the Mini TFT Display is 500K units per month.
Q: Where is the Mini TFT Display manufactured?
A: The Mini TFT Display is manufactured in Shenzhen, China.
