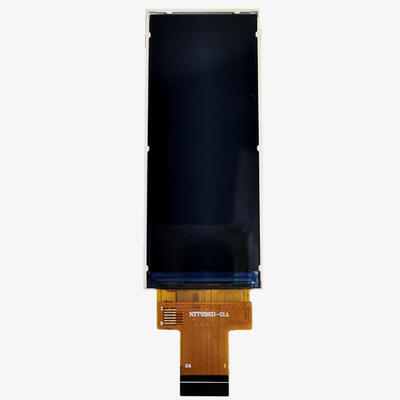

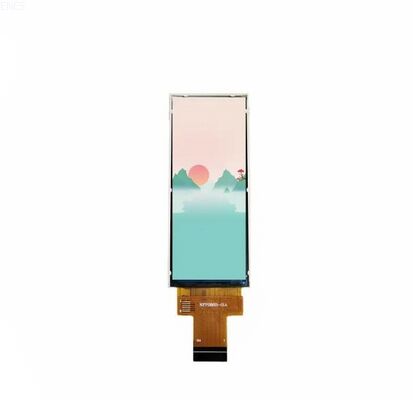

2.86-inch IPS Wide Angle TFT LCD Display Module with 376×960 Dots Resolution and MIPI Interface

Z286-3796KBWIG01-C24 is a small-sized 2.86-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 376×960 pixels, The display module is built-in with ST7701S controller IC, supports MIPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 350 cd/m² (typical value), and contrast of 1200(typical value).

This 2.86 inches TFT- LCD display module is portrait mode, and the panel adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature. It is very suitable for applications such as wearable devices, handheld devices, security monitoring system. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

2.86-inch IPS TFT-LCD Display Module (Z286-3796KBWIG01-C24) - Big Performance on a Small Screen

This small 2.86-inch TFT-LCD module features a vertical screen design with a resolution of 376 x 960. TFT-LCD module features a vertical screen design with a resolution of 376 x 960, giving it an outstanding picture detail in its size. Whether it's icons, text or images, it delivers clean, clear visuals, making it especially suitable for wearable devices and handheld terminals that require high display accuracy.

The panel uses IPS technology to achieve a viewing angle of 80° from left to right, up to down, and basically from all directions without color cast or darkening. The natural and highly saturated color performance makes the overall viewing experience much better than that of a normal TN screen, making it ideal for devices that require multiple viewers or multiple angles of operation.

The module has a built-in ST7701S driver chip and supports the MIPI interface, which provides fast transmission speeds and good compatibility, making it easier for engineers to do system integration. With a brightness of 350 cd/m² and a contrast ratio of 1200:1, the module maintains good readability both indoors and outdoors, and does not look gray under bright light.

It has a wide power supply range of 2.4V to 3.3V, which is suitable for different power solutions. It also has an operating temperature range of -20°C to 70°C and an even wider storage temperature range of -30°C to 80°C for stable operation in industrial environments or outdoor equipment.

Overall, the 2.86-inch IPS display module's small size, good image quality and high reliability make it ideal for applications such as wearable devices, smart rings, handheld instruments, smart home control panels, and security and surveillance equipment.

• Wide range of display: Including Monochrome OLED,TFT,CTP;
• Display solutions: Including make tooling,customized FPC,backlight and size;Technical support and design-in

• A deep and comprehensive understanding of the end applications;
• Cost and performance advantage analysis of various display types;
• Explanation and cooperation with customers to decide the most suitable display technology;
• Working on the continuous improvements at process technologies, product quality, cost saving, delivery schedule, and so on.

1. Q: 1. Can I have a sample order?

   A: Yes, we welcome sample order to test and check quality.

2. Q: 2. What is the lead time for sample?

   A: Current sample needs 1-3 days, customized sample needs 15-20 days.

3. Q: 3. Do you have any MOQ limit?

   A: Our MOQ is 1PCS.

4. Q: 4.How long is the warranty?

   A:12 Months.

5. Q: 5. what express do you often use to send the samples?

   A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 5-7 days to arrive.

6. Q: 6. What's your acceptable payment term?

   A: Our usually payment term is T/T. Others can be negotiated.
