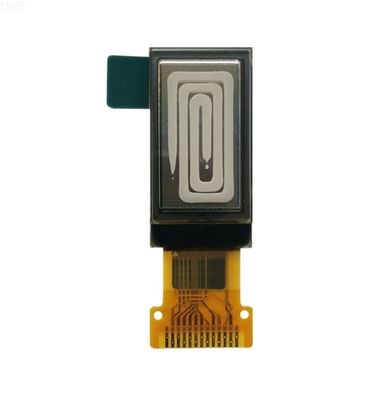

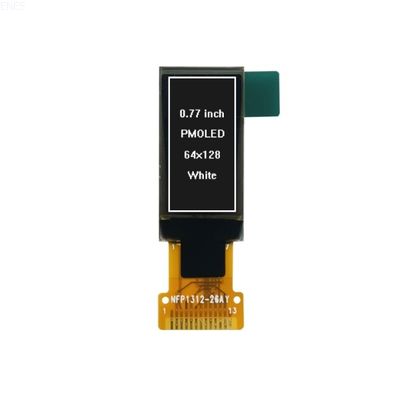

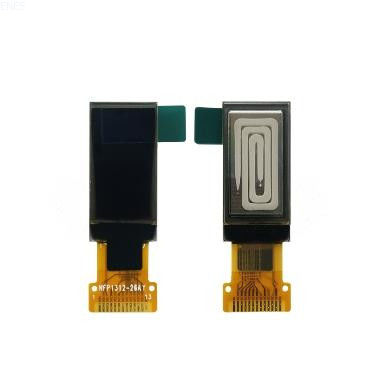

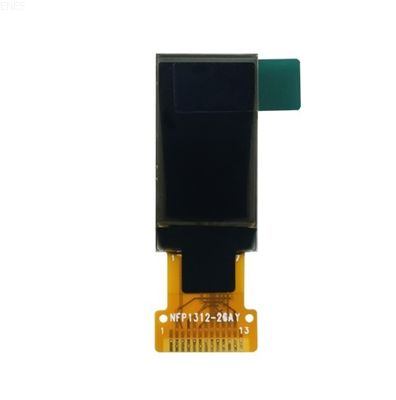

0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small

0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small
0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small
video play

Large Image :  0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX077PM6428TSWCG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 3-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Display Mode: Passive Matrix Display Color: Monochrome (White)
Drive Duty: 1/128 Duty Outline Drawing: According To The Annexed Outline Drawing
Number Of Pixels: 64 X 128 Panel Size: 12.13 X 23.6 X 1.22 (mm)
Active Area: 9.26 X 17.26 (mm) Pixel Pitch: 0.135 X 0.145 (mm)
Pixel Size: 0.115 X 0.125 (mm) Driver IC: S S D1312
FP C Numbe: NFP1312-26 Interface: 4-wire SP
Luminance: 320cd/m2 Viewing Angle: IPS
FPC Connector: 13 Pin Soldering FPC
Highlight:

64x128 mono oled display

,

0.77'' mono oled display

,

Super Small pmoled screen

0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen
Product Specifications
Attribute Value
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/128 Duty

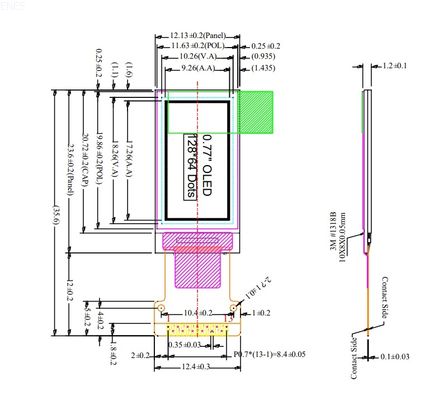

Outline Drawing According to the annexed outline drawing
Number of Pixels 64 x 128
Panel Size 12.13 x 23.6 x 1.22 (mm)
Active Area 9.26 x 17.26 (mm)

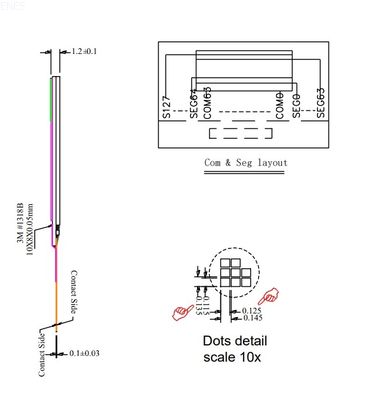

Pixel Pitch 0.135 x 0.145 (mm)
Pixel Size 0.115 x 0.125 (mm)
Driver IC S S D1312
FP C Number NFP1312-26
Interface 4-wire SPI
Luminance 320cd/m2
Viewing Angle IPS
FPC Connector 13 Pin soldering FPC
Product Description

TX077PM6428TSWCG01 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

Serial Interface Timing Characteristics: (4-wire SPI) (VDD - VSS = 1.65V to 2.4V, Ta = 25°C)

0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small 0
0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small 1
0.77'' 64x128 White Mono OLED Display SPI I2C SSD1312 PMOLED Screen Super Small 2
Special Tips: When designing main board, please add Electronic Switch circuit, otherwise, it may cause leak current.
Precautions
  • When an OEL display module is operated for a long time with fixed pattern, it may remain as an after image or slight contrast deviation may occur. Normal state can be restored by interrupting operation and leaving unused for a while.
  • To protect OEL display modules from performance drops by static electricity, avoid touching pins, electrodes, and pattern layouts such as the FPC.
  • The OEL driver is exposed and may malfunction if exposed to light. Design the product and installation method to shield the OEL driver from light during both usage and inspection processes.
  • This OEL display module stores the operation state data by the commands.
Frequently Asked Questions
1. What are your order terms?
  • Small MOQ accepted
  • Competitive price and short lead-time
  • ISO9001 and RoHS certificated factory supplied
  • Professional technicians and QC team test all products before shipment
  • Dedicated sales team provides immediate service
2. What can we do for you?

Customize service is available.

3. What is the lead time of products?

7-10 days for goods in stock, 3-4 weeks for mass production goods.

4. Payment methods?

T/T and PayPal.

5. How long is the warranty period?

Usually 1 year without damage by human action.
