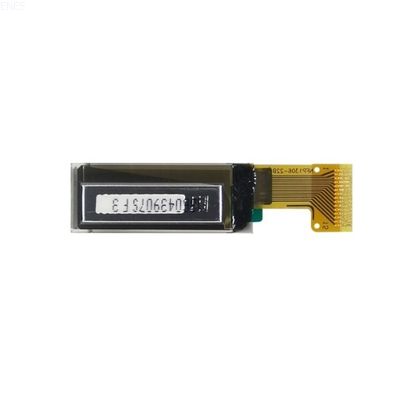

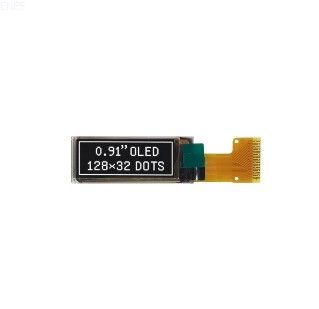

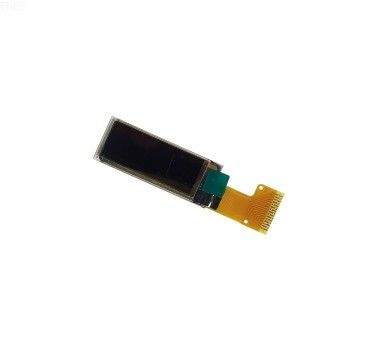

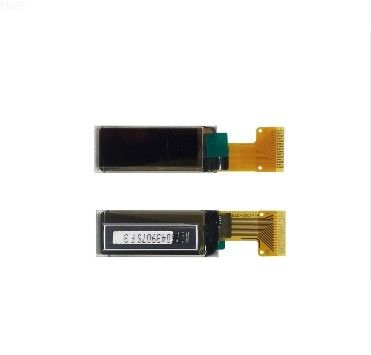

0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome

0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome

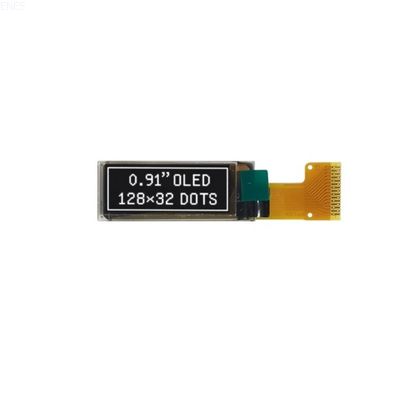

Large Image :  0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX091PM-12832TSWFG04
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 3-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Detailed Product Description
Size: 0.91 Inch Display Mode: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/32 Duty

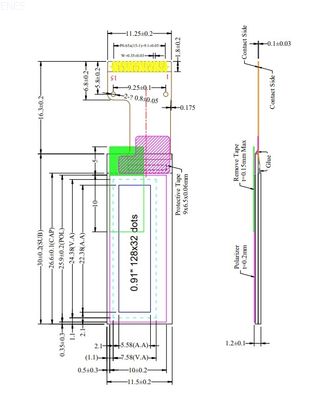

Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 128 X 32
Panel Size: 30.0 X 11.5x 1.2 (mm) Active Area: 22.38 X 5.58 (mm)
Pixel Pitch: 0.175 X0.175 (mm) Pixel Size: 0.155 X 0.155 (mm)
Driver IC: S S D1306 FP C Numbe: NFP1306-137
Interface: 170cd/m2 FPC Connecting Mode: 14 Pin Soldering FPC
Highlight:

128x32 mono oled

,

0.91'' mono oled

,

14 Pin micro oled display

0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome
Product Specifications
Attribute Value
Size 0.91 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/32 Duty
Number of Pixels 128 x 32
Panel Size 30.0 x 11.5 x 1.2 (mm)
Active Area 22.38 x 5.58 (mm)
Pixel Pitch 0.175 x 0.175 (mm)
Pixel Size 0.155 x 0.155 (mm)
Driver IC SSD1306
FPC Number NFP1306-137
Interface 170cd/m²
FPC Connecting Mode 14 Pin Soldering FPC
Product Overview

0.91 inch 128×32 monochrome OLED display module with SSD1306 driver IC, featuring white PMOLED technology in a COG package. The module includes a 14-pin soldering FPC interface and operates with 4-wire SPI timing characteristics.

0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome 0
Active Area / Memory Mapping & Pixel Construction
0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome 1
Pixel Construction Details
0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome 2
Pin Definition Diagram
Power Management
Power Up Sequence
  1. Power up VDD
  2. Send Display off command
  3. Initialization
  4. Clear Screen
  5. Power up VCC/VBAT
  6. Delay 100ms (When VCC is stable)
  7. Send Display on command
0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome 3
Power Down Sequence
  1. Send Display off command
  2. Power down VCC/VBAT
  3. Delay 100ms (When VCC/VBAT reaches 0)
  4. Power down VDD
0.91'' 128x32 Mono OLED Screen SSD1306 Interface 14 Pin White Monochrome 4
Important Notes:
  • ESD protection circuit connects VDD and VCC - VCC becomes lower than VDD when VDD is ON and VCC is OFF
  • VCC/VBAT should be kept float (disable) when OFF
  • Power pins (VDD, VCC, VBAT) must never be pulled to ground
  • VDD should not be powered down before VCC/VBAT
Reset Circuit Specifications

When RES# input is low, the chip initializes with display OFF, 128×64 display mode, normal segment mapping, cleared shift register data, and default contrast settings.

Usage Precautions
  • Avoid static patterns for extended periods to prevent afterimages
  • Do not touch pins/electrodes/FPC patterns to prevent ESD damage
  • Shield driver IC from light exposure to prevent malfunction
  • Include electronic switch circuit in main board design to prevent leak current
