7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display

7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display
7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display
video play

Large Image :  7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: DEPG750RWU790F30
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Screen Size: 7.5 Inch Display Resolution: 800(H)×480(V)Pixel DPI:124
Active Area: 163.2×97.92mm Pixel Pitch: 0.204×0.204 Mm

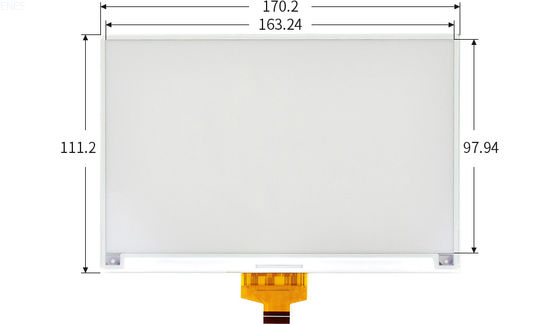

Pixel Configuration: Rectangle Outline Dimension: 170.2(H)×111.2 (V) ×1.20(D)mm
Weight: 43.9±0.5 IC: UC8179C
Highlight:

IPS electronic paper display

,

LCD electronic paper display

,

800x480 epaper display

7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display
Product Specifications
Attribute Value
Screen Size 7.5 inch
Display Resolution 800(H)×480(V)Pixel DPI:124
Active Area 163.2×97.92mm
Pixel Pitch 0.204×0.204 mm
Pixel Configuration Rectangle
Outline Dimension 170.2(H)×111.2 (V) ×1.20(D)mm
Weight 43.9±0.5
IC UC8179C
Product Description
7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display For Price Tags To Show E-books
Overview

DEPG750RWU790F30 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 7.5 inch active area contains 480×800 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Features
  • 480×800 pixels display
  • High contrast High reflectance
  • Ultra wide viewing angle Ultra low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Landscape portrait modes
  • Hard-coat antiglare display surface
  • Ultra Low current deep sleep mode
  • On chip display RAM
  • Waveform can stored in On-chip OTP or written by MCU
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  • I 2 C signal master interface to read external temperature sensor
  • Built-in temperature sensor
7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display 0 7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display 1 7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display 2
Input/output Pin Assignment
7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display 3 7.5 Inch 800x480 Wide Temperature IPS TFT LCD Electronic Paper Display 4
Frequently Asked Questions
Q: Are you manufactory or trade company?
A: We are manufactory in China. Our factory located in Dongguan, and office located in Shenzhen
Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea colle.
Q: Can you design the lcd in acccordance with our demand?
A: Sure. We have professional team to meet all your demand.
Q: How to place orders?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax, Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1.Product information-Quantity,part number
2.Delivery time required.
3.Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4.Forwarder's contact details if you have any in China.
Q: How long of mass production?
A: 25-30 business days. It depends on different order quantities and part number.
