320×240 3.5'' Customized LCD Panel HX8238D CT Without TSP Standard TFT LCD Display

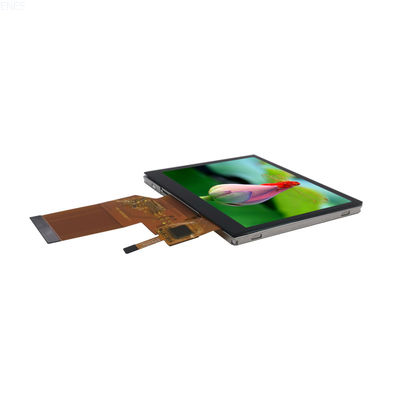

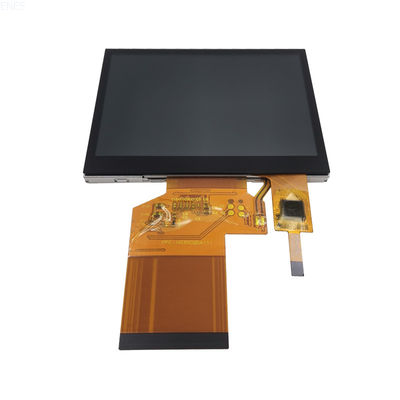

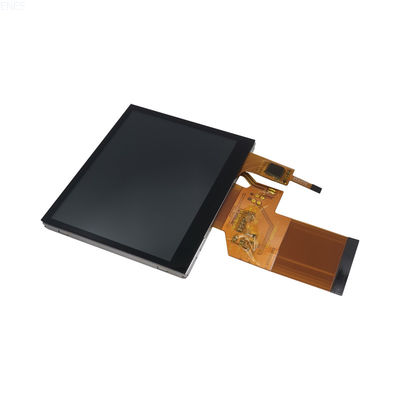

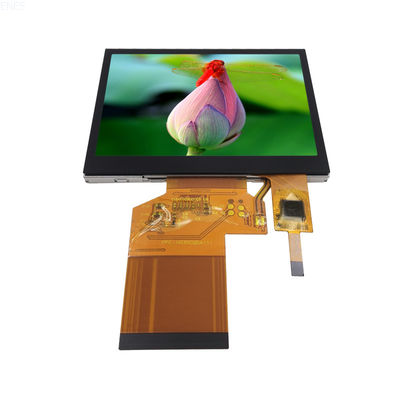

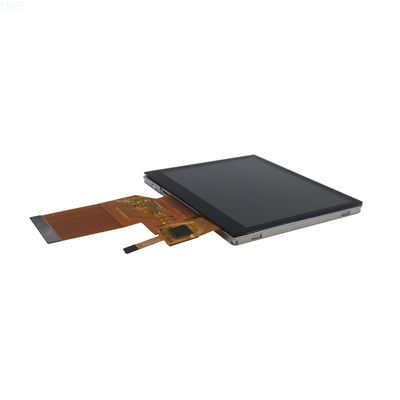

Large Image : 320×240 3.5'' Customized LCD Panel HX8238D CT Without TSP Standard TFT LCD Display

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T035CQ54E3511-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1000/PCS
Price:	Please enquiry
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	3.5inch	Display Format:	320 (RGB) × 240
Operating Temp:	-20°C~+70°C	Storage Temp:	-30°c~+80°c
Interface:	24-bit RGB/SERIAL RGB/CCIR656/CCIR601	Color Depth:	16.7M
Technology Type:	A-Si	Display Spec.:	0.073 X 0.219
Luminance:	350cd/m2	Driver IC:	HX8238D
Surface Treatment:	Haze 20%	Viewing Direction:	12 O’clock
Gray Viewing Direction:	6 O’clock	LCM (W X H X D) (mm):	76.9063.93.26
Active Area(mm):	70.08 X 52.56	LED Numbers:	6 LEDs
Display Mode:	Normally White
Highlight:	3.5in Customized LCD Panel , 320×240 Customized LCD Panel , Standard tft lcd display

320×240 3.5'' Customized LCD Panel HX8238D CT Without TSP Standard TFT LCD Display

Product Specifications

LCD Size	3.5inch
Display Format	320 (RGB) × 240
Operating Temperature	-20°C~+70°C
Storage Temperature	-30°C~+80°C
Interface	24-bit RGB/SERIAL RGB/CCIR656/CCIR601
Color Depth	16.7M
Technology Type	a-Si
Display Specification	0.073 x 0.219
Luminance	350cd/m²
Driver IC	HX8238D
Surface Treatment	Haze 20%
Viewing Direction	12 O'clock
Gray Viewing Direction	6 O'clock
LCM Dimensions (W×H×D)	76.90×63.9×3.26 mm
Active Area	70.08 × 52.56 mm
LED Numbers	6 LEDs
Display Mode	Normally White

Product Details

3.5-inch 320×240 ALL HX8238D CT Without TSP Standard TFT LCD Display with advanced interface configuration options.

Interface Configuration Table

SEL2	SEL1	SEL0	Format	Operating Frequency
0	0	0	Parallel-RGB data format (stripe type color filter)	6.5MHz
0	0	1	Serial-RGB data format	19.5MHz
0	1	0	CCIR 656 data format (640RGB)	24.54MHz
0	1	1	CCIR 656 data format (720RGB)	27MHz
1	0	0	YUV mode A data format (Cr-YCb-Y)	24.54MHz
1	0	1	YUV mode A data format (Cr-YCb-Y)	27MHz
1	1	0	YUV mode B data format (Cb-Y.CrY)	27MHz
1	1	1	YUV mode B data format (Cb-Y.CrY)	24.54MHz
