4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel

All Products
TFT LCD Display (56)
Mini TFT Display (6)
TFT LCD Controller Board (1)
HDMI TFT LCD Display (14)
High Brightness TFT Display (9)
Customized LCD Panel (15)
Wide Temperature LCD (2)
Bar Type TFT LCD (7)
Round TFT LCD Display (7)
PCAP Touch Panel (8)
Resistive Touch Panel (11)
OLED LCD Display (34)
Graphic LCD Module (2)
Character LCD Module (1)
COG LCD Module (8)
China ESEN HK LIMITED certification
China ESEN HK LIMITED certification
Excellent service gives us confidence in your products.

—— Henry

In the process of cooperation, the technical team responded quickly and solved the various problems we encountered in a timely manner, so that our production process can be carried out smoothly, and we look forward to more cooperation in the future.

—— Ford

After-sales service team is very professional, regular visits and technical support, so that we have no worries.

—— Marco

A reliable partner for our company.

—— Mia

I'm Online Chat Now

4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel

4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel
4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel
video play

Large Image :  4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX399-40RB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 3.99 Inch Resolution: 400(horizontal)*960(Vertical)
Interface: 3SPI+18BIT RGB Connect Type: Connector
Color Depth: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 32.65x97.95 Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: Normally Black Viewing Direction: ALL
LCD Driver IC: ST7701S Gray Scale Inversion Direction: ALL
LCM (W X H X D) (mm): 42.5*102.08*1.9 Active Area(mm): 39.18 X 94.032
With /Without TSP: Without TSP Weight (g): TBD
FPC Connecting Method: 40 Pin Plug In FPC LED Numbers: 8 LED
Customization: FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:

IPS bar type tft

,

400x960 bar type tft

,

3.99'' lcd screen touch panel

4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel
Product Specifications
Attribute Value
Size 3.99 inch
Resolution 400(horizontal)*960(Vertical)
Interface 3SPI+18BIT RGB
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Pixel pitch (mm) 32.65x97.95
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Viewing Direction ALL
LCD Driver IC ST7701S
Gray Scale Inversion Direction ALL
LCM (W x H x D) (mm) 42.5*102.08*1.9
Active Area(mm) 39.18 x 94.032
With /Without TSP Without TSP
Weight (g) TBD
FPC Connecting Method 40 Pin Plug in FPC
LED Numbers 8 LED
Customization FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Product Description

4.0 Inch 400x960 IPS Bar TFT LCD Module Screen SPI+RGB 3.99inch Long Strip LCD Screen Touch Panel Optional with ST7701S Controller - High-Brightness Panel Optimization

  • 3.99" IPS MIPI-DSI TFT LCD Display with 400x960 Resolution
  • MIPI-DSI High-Speed Interface with reduced EMI and simplified wiring
  • Optional Resistive/Capacitive Touchscreen with Built-in EMI Shielding
  • High-brightness LED backlight (500-600 cd/m² typical brightness)
  • Sunlight visible with excellent color reproduction and viewing angles
  • Powered by integrated ST7701S driver IC for reliable performance
  • Compatible with Android motherboards/RK motherboards
  • FFC (Flexible Flat Cable) connection for convenient installation
  • RoHS compliant with strict environmental and safety standards
Customization Options

We offer comprehensive customization services to meet your specific requirements:

  • Ribbon Cable/FPC: Custom length, position, pin arrangement, and connectors
  • Touchscreen: Capacitive or resistive options with adjustable thickness/shape
  • Interface: HI, USB, SPI, VGA, and other interface integration
  • Cover Glass: Custom-cut with optical bonding available

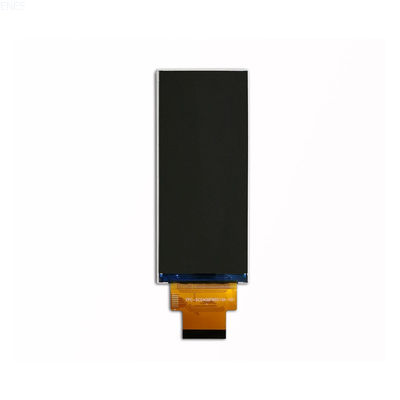

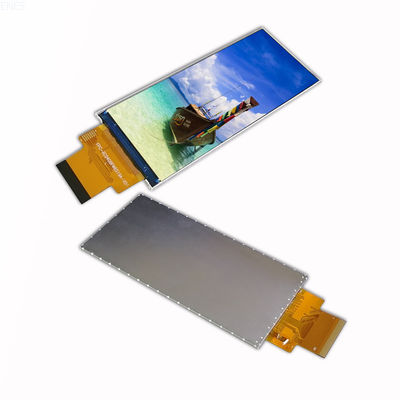

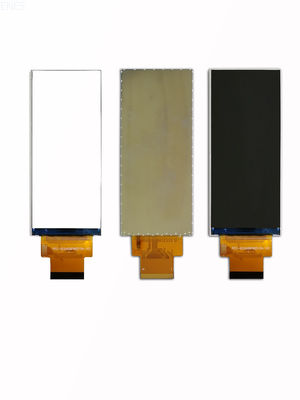

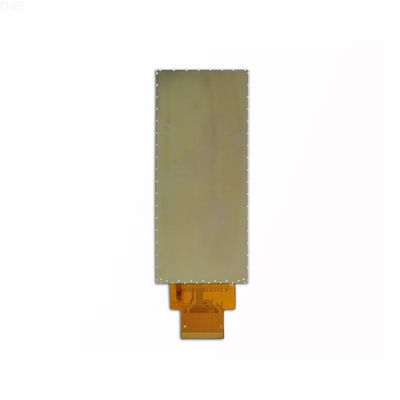

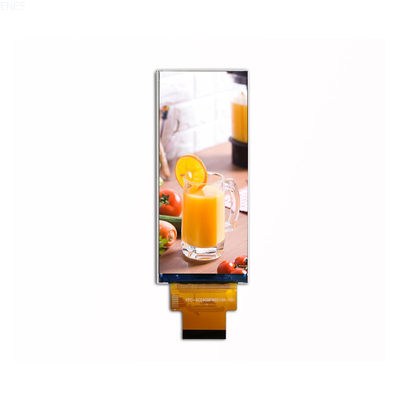

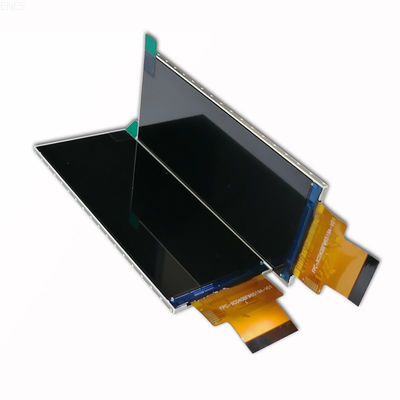

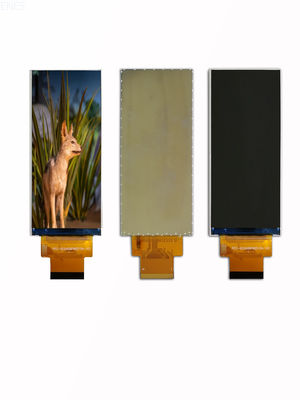

Product Images
4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel 0 4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel 1 4'' 400x960 IPS Bar Type TFT SPI RGB 3.99'' Long Strip LCD Screen Touch Panel 2
Frequently Asked Questions
What is your company's experience and reputation in the industry?

Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

Are there any certifications or standards that the product meets?

Yes, our product meets several industry certifications and standards, including ISO9001 Certificate and RoHS Environmental Certification.

How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products. If they don't fit, we will do the necessary adjustments & customization.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ).

What are the payment terms?

We usually accept T/T, Paypal, other terms to be negotiated.

What's the lead time?

Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (based on the quantity and particular product).
