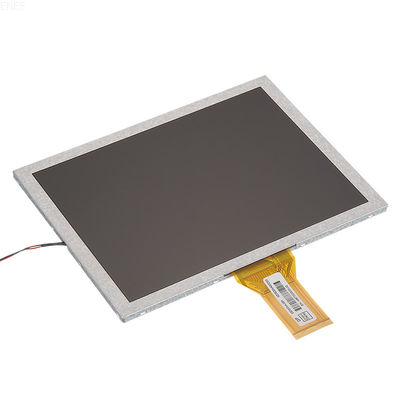

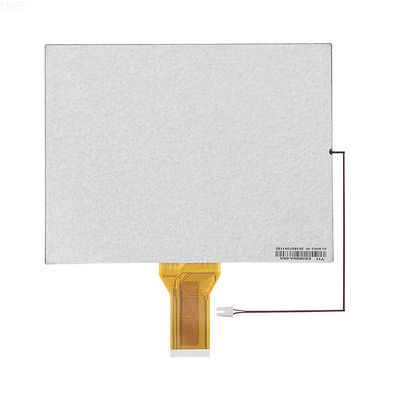

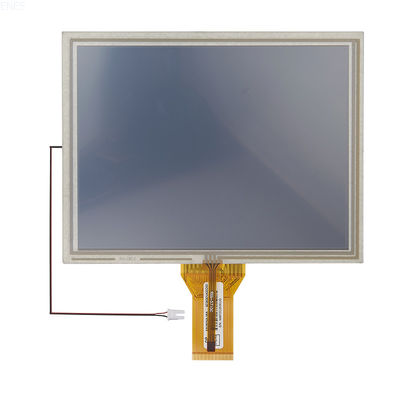

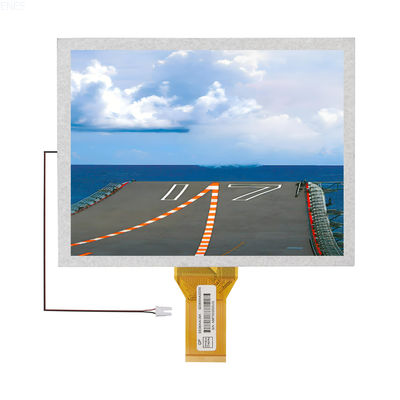

8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module

8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module
8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module
video play

Large Image :  8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T080SWV60E3501-LCM
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Type: 8 Inch Operating Temperature: -20--+70(℃)
Storage Temperature: -30--+80(℃) Resolution: 800(horizontal)*480(Vertical)
Interface: 50PIN RGB Connect Type: Connector
Color Depth: 16.7M Technology Type: A-Si
Display Spec. Pixel Pitch (mm): 0.0736×3(H) X 0.207(V) Pixel Configuration: R.G.B. Vertical Stripe
Driver IC: -- Display Brightness: 600 Cd/m2
Viewing Direction: 12 O’clock Gray Viewing Direction: 6 O’clock
LCM (W X H X D) (mm): 192.8*116.9*6.4 Active Area(mm): 176.64 X 99.36
With /Without TSP: Without LED Numbers: 27 LEDs
Module Type: 8”TFT +CTP+PCB Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

800×600 8 inch display

,

TFT 8 inch display

,

RGB Interface industrial lcd screen

8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module
Product Specifications
Attribute Value
LCD Type 8 inch
Operating temperature -20--+70(℃)
Storage temperature -30--+80(℃)
Resolution 800(horizontal)*480(Vertical)
Interface 50PIN RGB
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Display Spec. Pixel pitch (mm) 0.0736×3(H) x 0.207(V)
Pixel Configuration R.G.B. Vertical Stripe
Display Brightness 600 Cd/m2
Viewing Direction 12 O'clock
Gray Viewing Direction 6 O'clock
LCM (W x H x D) (mm) 192.8*116.9*6.4
Active Area(mm) 176.64 x 99.36
With /Without TSP Without
LED Numbers 27 LEDs
Module Type 8”TFT +CTP+PCB
Product Description

The T080SWV60E3501-LCM LCD display module features an 8-inch display with 800×600 resolution and RGB interface, delivering high-quality visuals for industrial applications. This sunlight-readable display offers vivid 16.7M color depth and operates reliably in extreme temperatures from -20 to +70℃.

Customization Options: Available customizations include FPC, capacitive/resistive touch panels, pin definitions, packaging, and HDMI boards. Contact us for specific requirements.

8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module 0 8 Inch Display 800×600 RGB Interface Industrial LCD Screen TFT LCM LCD Module 1
Applications

This versatile LCD module is ideal for:

  • Industrial control systems and medical equipment
  • Outdoor digital signage and advertising displays
  • Transportation systems and vending machines
  • Retail price displays and museum exhibits
  • Gaming machines and kiosk applications
Pin Configuration
No. Symbol Description
1 GND Power ground
2 AVDD Power for Analog circuit
3 VCC Power for Digital circuit
4-11 R0-R7 Red data
12-19 G0-G7 Green data
