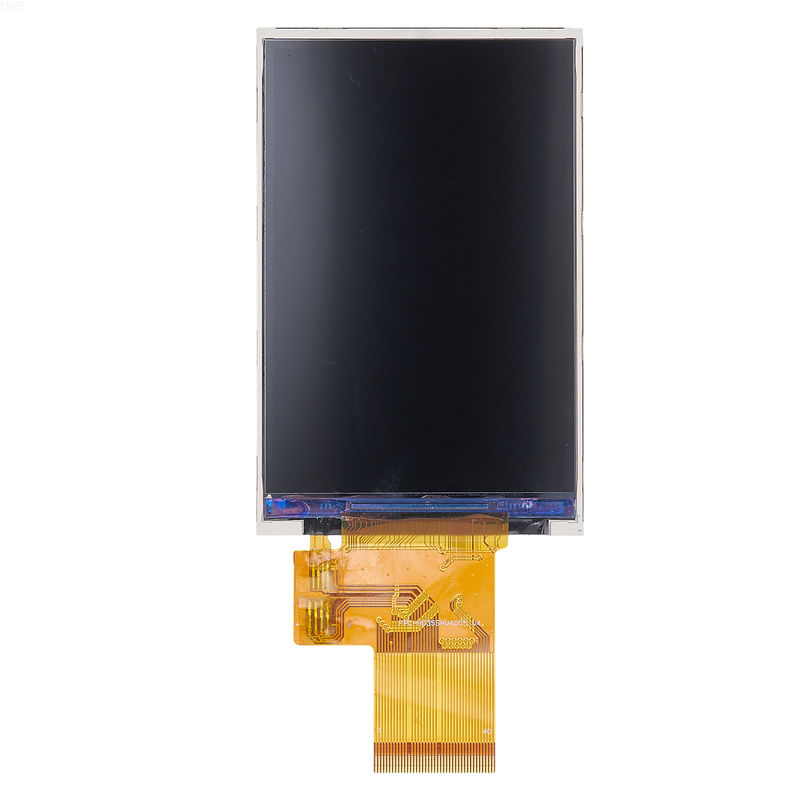

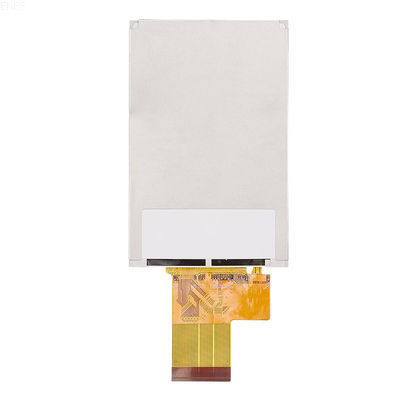

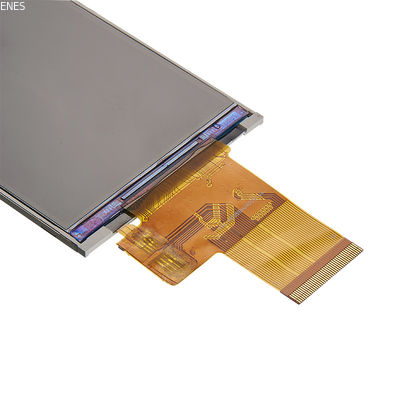

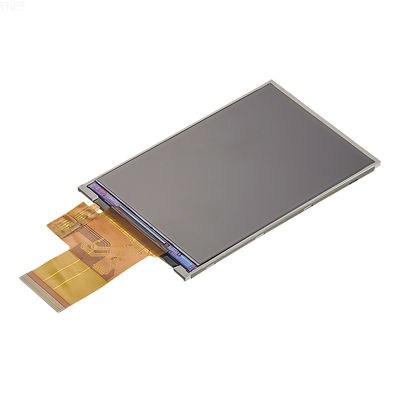

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT
3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT
video play

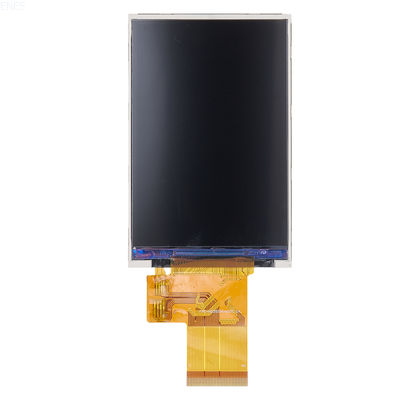

Large Image :  3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T035SHV40I3505-T
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~10 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 3.5inch Resolution: 320(horizontal)*480(Vertical)
Interface: MCU Interface Connect Type: Connector
Color Depth: 262K Technology Type: A-Si
Pixel Pitch: 0.153x 0.153(mm) Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: Normally Black Driver IC: ILI9488
Surface Treatment: HC Viewing Direction: ALL
LCM: 54.94*85.5*3.7(mm) Active Area: 48.96 X 73.44(mm)
LED Numbers: 6 LEDs Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board，different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:

340x420 Customized LCD Panel

,

3.5'' Customized LCD Panel

,

ILI9488 standard tft

3.5-inch 340x420  Driver IC ILI9488  Touch Panel Standard TFT LCD Display ALL

This is our custom 3.5-inch touch panel. Screen: 340x480 with clear and bright images, easy to connect and adapt to systems with USB and MCU interface interfaces. TP (Touch plus Panel) technology can be used from different and sensitive touch ways. This touch screen is a reliable, user-friendly solution for your device, whether you use it for DIY projects, embedded systems, or even small industrial applications, adding convenience and functionality to your device. Perfect size for space-limited design without compromising performance.
3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT 0

Electrical Characteristics

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT 1

Note 1: Each LED : IF =20 mA, VF =3.2V.

Note 2: Optical performance should be evaluated at Ta=25℃ only.

Note 3: If LED is driven by high current, high ambient temperature & humidity condition. The life time of LED will be reduced.Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT 2

Figure : LED connection of backlight

Block Diagram

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT 3

customizable



3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT 4
