3.97'' Customized LCD Panel 480x800 IPS Panel MIPI Interface ST7701S Driver IC

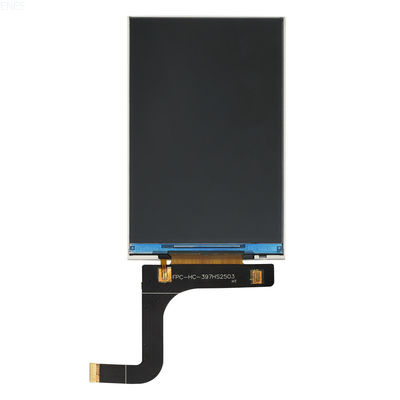

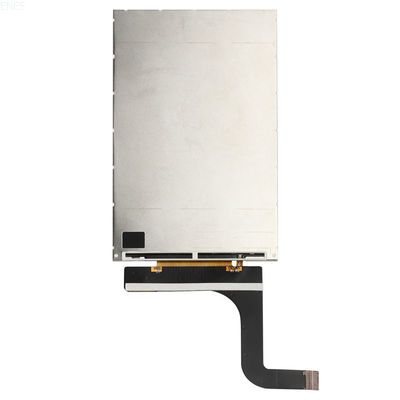

Large Image : 3.97'' Customized LCD Panel 480x800 IPS Panel MIPI Interface ST7701S Driver IC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T397BS2503

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~10 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	3.97-INCH	Brightness:	400cd/m2
Dimension:	57.14（W）* 96.85（H） * 1.85(T)	Active Area:	51.84 * 86.40
Number OfDots:	480 * RGB * 800	LCD Type:	A-Si TFT
Viewing:	Free	IC:	ST7701S
Interface Type:	MIPI	Operating Temperature:	-10℃~ 60℃/-30--+85(℃)
Storage Temperature:	-20℃~ 70℃ /-40--+90(℃)	Backlight Type:	8 LEDs
Viewing Angle:	ALL	Touch Screen:	Customizable Touch
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board，different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:	3.97'' Customized LCD Panel , 480x800 Customized LCD Panel , ST7701S tft lcd module display

3.97'' Customized LCD Panel 480×800 IPS Panel with MIPI Interface and ST7701S Driver IC

Product Specifications

Attribute	Value
Size	3.97-INCH
Brightness	400cd/m²
Dimension (mm)	57.14 (W) × 96.85 (H) × 1.85 (T)
Active Area (mm)	51.84 × 86.40
Resolution	480 × RGB × 800
LCD Type	a-Si TFT
Driver IC	ST7701S
Interface Type	MIPI
Operating Temperature	-10℃ to +60℃/-30℃ to +85℃
Storage Temperature	-20℃ to +70℃/-40℃ to +90℃
Backlight Type	8 LEDs
Viewing Angle	All Directions
Touch Screen	Customizable touch options

Customization Options

Flexible Printed Circuit (FPC) customization
Capacitive (CTP) or Resistive (RTP) touch panels
Custom pin definitions
Special packaging solutions
HD-MI board integration
Multiple color options
Custom shapes and cutouts
Logo printing and branding
Special features: through holes, transparent windows
Surface treatments: silk printing, anti-UV ink
Optical bonding options: colorful OCA

Product Overview

This 3.97-inch IPS TFT LCD module delivers bright, sharp full-color images with 480×800 resolution. The MIPI interface ensures high-speed data transmission with low power consumption, while IPS technology provides wide viewing angles with consistent image quality from all directions.

The compact design facilitates easy integration into various applications including mobile devices and handheld terminals, offering both superior visual performance and convenient installation.

Installation Guidelines

Window Design: Recommended to be 0.5mm smaller than the POL side to prevent exposing the POL white edge.

For Pure Screen Applications: Double-sided tape on the LENS should not contact the TP directly.

Case Design: Foam should extend 0.3MM (minimum) into the glass side to prevent light leakage.

Pin Assignments

Order Process

Project evaluation and quotation

Customer confirmation

100% prepayment of tooling fee and sample cost

Technical drawings provided within 3 working days

Customer drawing approval

Sample production (2-3 weeks)

Sample testing and iterative modifications

30% advance payment for production

Batch manufacturing
