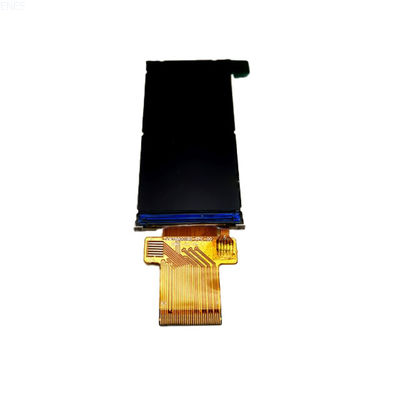

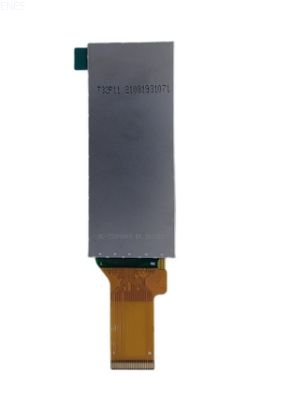

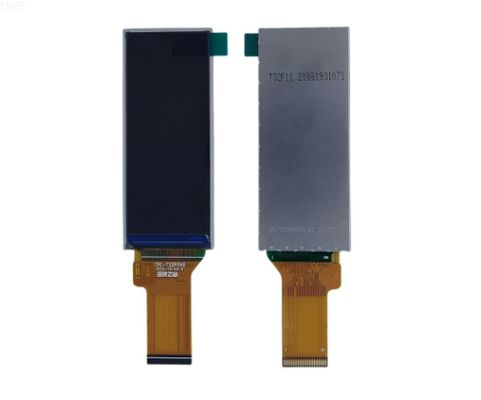

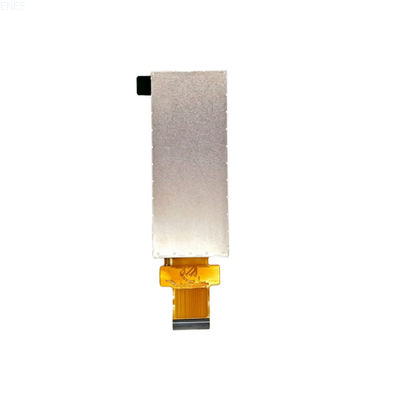

2.86 inch Vertical IPS LCD TFT Bar Display Module 350 cd/m² Brightness for Vehicle Recorders Smart Watches Wrist-Worn Phones ST7701S

Large Image : 2.86 inch Vertical IPS LCD TFT Bar Display Module 350 cd/m² Brightness for Vehicle Recorders Smart Watches Wrist-Worn Phones ST7701S

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	E286-3796KBWIG01-C24
Document:	E286-3796KBWIG01-C24-.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	US$ 2.6（can be negotiated）
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

LCD Size:	2.86inch(Diameter)	Display Mode:	Normally Black
Resolution:	376(H)RGB X 960(V)	Dot Pitch:	0.028(H) X 0.108(V) Mm
Active Area:	26.51(H) X 67.68(V) Mm	Module Size:	31.2(H) X 76.6(V) X2.13(D) Mm
Color Arrangement:	RGB Vtertical Stripe	Interface:	MIPI Interface
Drive IC:	ST7701S	Luminance(cd/m2):	350 (TYP)
Viewing Direction:	All View	Backlight:	4 White LED
Operating Temp.:	-20℃~ + 70℃	Storage Temp.:	-30℃~+ 80℃
Weight:	1.2 G
Highlight:	2.86-inch 350cd/m² High-Bright IPS Display , Vertical Bar Design for Wearables & Automotive , SPI-Driven Ultra-Low Power Operation

2.86 inch Vertical IPS LCD TFT Bar Display Module 350 cd/m² Brightness for Vehicle Recorders Smart Watches Wrist-Worn Phones ST7701S

Product Specifications

Attribute	Value
LCD Size	2.86inch(Diameter)
Display Mode	Normally black
Resolution	376(H)RGB x 960(V)
Dot pitch	0.028(H) x 0.108(V) mm
Active area	26.51(H) x 67.68(V) mm
Module size	31.2(H) x 76.6(V) x2.13(D) mm
Color arrangement	RGB Vertical stripe
Interface	MIPI Interface
Drive IC	ST7701S
Luminance(cd/m2)	350 (TYP)
Viewing Direction	All View
Backlight	4 White LED
Operating Temp.	-20℃~ + 70℃
Storage Temp.	-30℃~+ 80℃
Weight	1.2 g

Product Description

2.86 inch Vertical IPS LCD TFT Bar Display Module 350 cd/m² Brightness for Vehicle Recorders Smart Watches Wrist-Worn Phones.

Introduction

This 2.86" TFT LCD display module E286-3796KBWIG01-C24 is a transmissive type color active matrix TFT (Thin Film Transistor) Liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. The resolution of a 2.86" contains 370(RGB)x960 dots and can display up to 16.7M colors.

Mechanical Drawing

Special Features

Long-strip shape
Narrow bezel design
All view direction
Relatively thin and light structure

Applications

This 2.86" TFT LCD display module E286-3796KBWIG01-C24 can be applied in many industries, including:

Consumer Electronics
Health & Personal Care
Mobile Electronics
Home Appliances
Sports & Outdoors
Security Products
Electronic Components
Machinery & Parts
Auto Parts & Accessories

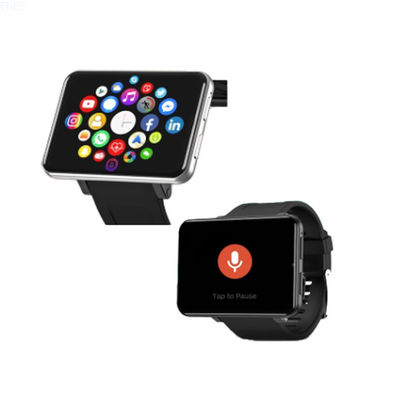

Typical application products include Dictionary Pens, Dashcam Recorders, Beauty Devices, Listening Treasure, CCD camera, Smart phone, Pulse Oximeters, Smart Watch, Translation Machine, Game Console, Handheld POS Machine, and Translation Pen.

Experienced R&D Department
Large Product Line
Production Capacity
ODM (Original Designing & Manufacturing)
OBM (Own Branding Manufacturing)
Buyer's Specifications Accepted
Reliability: ISO9001 and ISO14001 factory certifications
Small MOQ accepted
Competitive price and short lead-time
TFT LCM and assemblies, OLED modules and assemblies, Customized module solutions

Package Specifications

Item	Quantity
Module	480 per Primary Box
Holding Trays (A)	15 per Primary Box
Total Trays (B)	16 per Primary Box (Including 1 Empty Tray)
Primary Box (C)	1~4 per Carton (4 as Major / Maximum)

Frequently Asked Questions

Q: When can I get the quotation?

A: We usually quote within 12 hours after we got your inquiry. If it is very urgent, please call us or contact us via email, Skype or WhatsApp.

Q: What is your warranty?

A: We provide one year warranty.

Q: May I buy samples from you?

A: Yes! You are welcome to place sample order to test our high quality and service.

Q: How to place bulk order?

A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?

A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo, direct line, air mail according to customers' request.

Q: What about the quality of your product?

A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfaction.

Q: Can you provide OEM service?

A: Yes! We can provide professional OEM service.

Q: Do you have any after-sales service?

A: Yes! Our product has professional after-sales service dept. Follow up R.M.A. Items service and upload product firmware and app for you download. If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly.
