RGB Display LCD TFT 320x480 Color LCD Display Module With ST7796S 3.5 Inch

Large Image : RGB Display LCD TFT 320x480 Color LCD Display Module With ST7796S 3.5 Inch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-350CJ4008

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

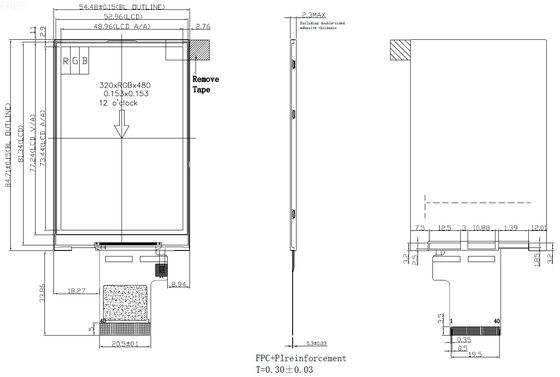

Size:	3.5 Inch	Dimension:	55.48（W）* 84.71（H） * 2.30(T)
Active Area:	48.96* 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7796S	Interface Type:	RGB
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	400/cd~450/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	RGB display lcd tft , 320x480 display lcd tft , ST7796S color lcd display module

RGB Display LCD TFT 320x480 Color LCD Display Module With ST7796S 3.5 Inch

Product Specifications

Attribute	Value
Size	3.5 inch
Dimension	55.48（W）* 84.71（H） * 2.30(T)
Active Area	48.96* 73.44 mm
Number Of Dots	320 * RGB * 480
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7796S
Interface Type	RGB
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	6 LEDs
Luminance	400/cd~450/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

This 3.5 inch TFT LCD display module features a 320x480 resolution with ST7796S driver IC, available in both touch and non-touch configurations. Our professional manufacturing ensures high-quality displays suitable for industrial, medical, automotive, and office electronic equipment applications.

Our Service Commitment

Comprehensive technical support available throughout your development process
Rigorous quality control including aging tests and 100% visual/electrical inspection before shipment
Advance notification of product upgrades with perfect backward compatibility
12-month product warranty for your peace of mind
