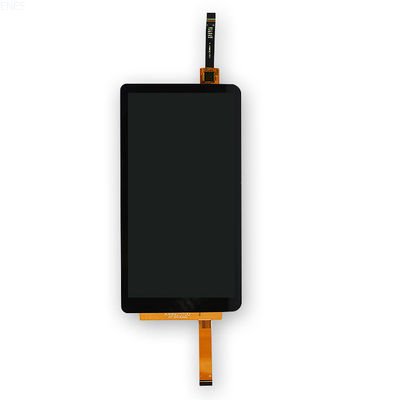

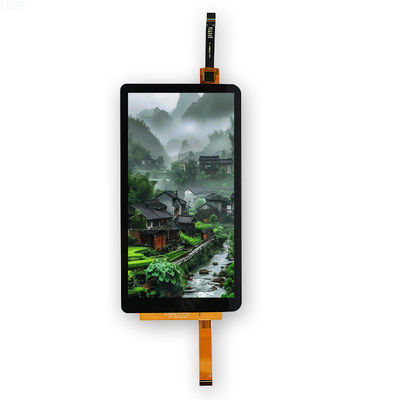

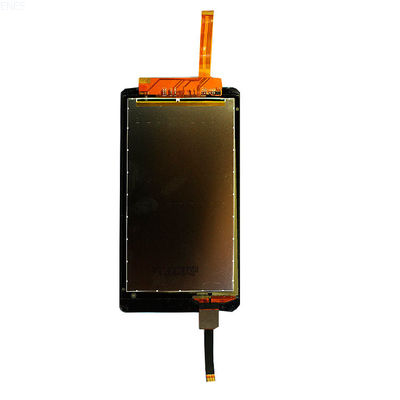

5.0 4.99'' 720 X 1280 IPS MIPI ILI9881D TFT LCD Module View Angle Capacitive Touch Panel

Large Image : 5.0 4.99'' 720 X 1280 IPS MIPI ILI9881D TFT LCD Module View Angle Capacitive Touch Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T499H25100 -CPT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

Size:	4.99 Inch	Dimension:	65.3（W）* 119.3（H） * 1.75(T)
Active Area:	62.1 * 110.4 Mm	Number OfDots:	720 * RGB * 1280
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ILI9881D	CTP IC:	GT5688(GG)，RX13*TX22
Interface Type:	MIPI	Operating Temperature:	-20℃~ 70℃
Storage Temperature:	-30℃~ 80℃	Backlight Type:	12 LEDs
Luminance:	1000/cd	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	720 X 1280 tft lcd module , ILI9881D tft lcd module , 4.99'' capacitive touch panel

5.0 4.99'' 720 X 1280 IPS MIPI ILI9881D TFT LCD Module with Capacitive Touch Panel

Product Specifications

Attribute	Value
Size	4.99 inch
Dimension	65.3(W) × 119.3(H) × 1.75(T) mm
Active Area	62.1 × 110.4 mm
Number Of Dots	720 × RGB × 1280
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	ILI9881D
CTP IC	GT5688(GG), RX13×TX22
Interface Type	MIPI
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Backlight Type	12 LEDs
Luminance	1000 cd/m²
Custom Service	FPC, CTP, RTP, pin definition, packing, HD-MI board

Product Details

High-performance 5.0 inch 720×1280 IPS MIPI ILI9881D TFT LCD module featuring wide viewing angles and capacitive touch panel technology.

Mechanical Drawing

Module Assembly Drawing

Touch Panel Blueprint

Why Choose Our TFT LCD Modules?

Competitive Pricing: Factory-direct pricing with superior quality assurance

Technical Expertise: Specialized R&D team offering customized solutions and support

Global Reliability: Products distributed to over 40 countries with stable supply chain

24/7 Support: Professional after-sales team available for immediate assistance

Quality Guaranteed: 100% brand new panels with traceable serial numbers
