12.1 Inch 1280x800 TFT LCD Display LVDS Interface 16.7M Color LCD Module

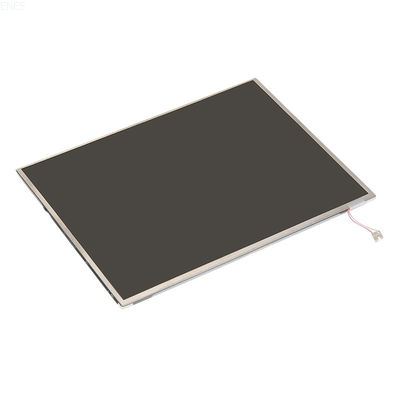

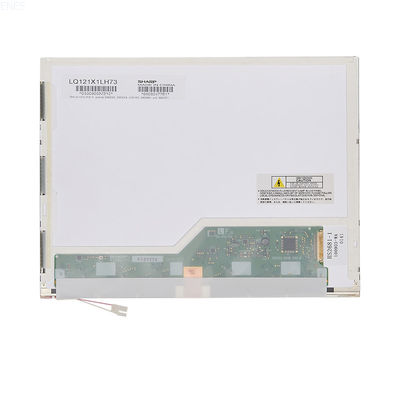

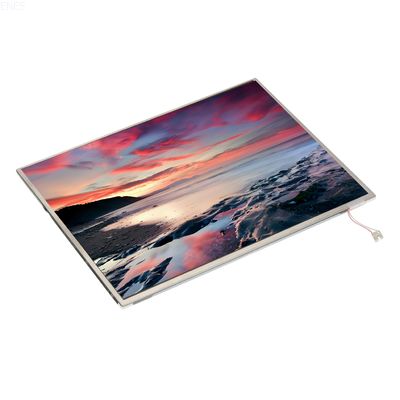

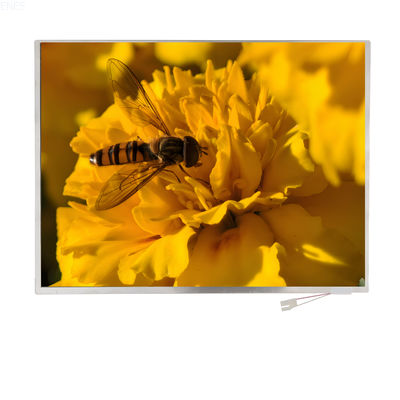

Large Image : 12.1 Inch 1280x800 TFT LCD Display LVDS Interface 16.7M Color LCD Module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T121XG01

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	12.1 Inch	Resolution:	1024(horizontal)*768(Vertical)
Interface:	LVDS	Connect Type:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Display Spec. Pixel Pitch (mm):	TBD	Pixel Configuration:	R.G.B.-Stripe
Display Mode:	Normally Black	Driver IC:	TBD
Surface Treatment:	HC	Viewing Direction:	Full View
Gray Scale Direction:	Free	LCM (W X H X D) (mm):	260.52048.6
Active Area(mm):	245.76x 184.32	With /Without TSP:	Without TSP
LED Numbers:	44LEDs	Operating:	-20 ~ +70 ℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	1280x800 tft lcd display , 12.1in tft lcd display , 16.7M color lcd module

12.1 Inch 1280x800 TFT LCD Display LVDS Interface 16.7M Color LCD Module

Product Specifications

Attribute	Value
Size	12.1 inch
Resolution	1024(horizontal)*768(Vertical)
Interface	LVDS
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Pixel Configuration	R.G.B.-Stripe
Display Mode	Normally Black
Viewing Direction	Full View
LCM Dimensions (W x H x D)	260.52048.6 mm
Active Area	245.76x 184.32 mm
Touch Panel	Without TSP (customizable)
LED Numbers	44LEDs
Operating Temperature	-20 ~ +70 ℃

Product Overview

The T121XG01 is a 12.1-inch vertical screen TFT LCD module designed for demanding industrial and commercial applications. Featuring high-resolution IPS technology with 1024×768 pixel clarity, this display offers exceptional performance in various environments.

Key Features

85/85/85/85° wide viewing angle for distortion-free viewing from all directions
1000cd/m² high brightness for excellent visibility in strong light conditions
Transmissive normally black mode with LED backlight technology
Wide temperature operation range (-20℃ to +70℃)
Storage temperature range of -30℃ to +80℃
Low power consumption design extends device lifespan

Mechanical Drawing

Input/Output Terminals

LCM connector pin assignment (CN1): STARCONN 076B20-0048RA-G4 or JAE FI-SEB20P-HFE (or equivalent)

Absolute Maximum Ratings

Applications

The T121XG01 provides high-quality display solutions for multiple industries:

Industrial Control: Clear data visualization in complex environments
Medical Imaging: Accurate presentation of diagnostic images
In-Vehicle Systems: Reliable performance under vibration and temperature changes
Smart Retail: High brightness for promotional displays and interactive terminals

Customization Options

ESEN offers comprehensive customization services including:

Touch panel integration (resistive or capacitive)
Brightness adjustments for specific environments
Interface adaptation for seamless system integration
Specialized packaging and pin definitions

Frequently Asked Questions

Is there a Touch Panel (Touch Screen) on the display?

We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

What about payment terms?

PayPal and credit card can be accepted for sample, T/T paid for mass order. Advance payment percentage can be discussed.

How long can I get the goods?

Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days; Large batch delivery takes 20-30 working days.

Can I trust the quality?

Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome factory inspections.
