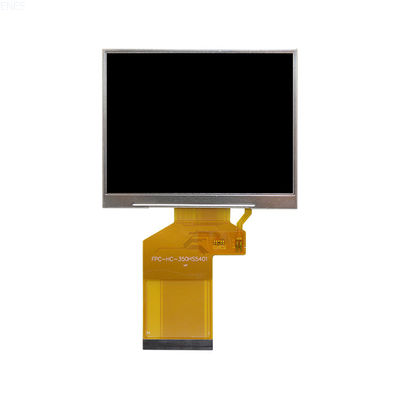

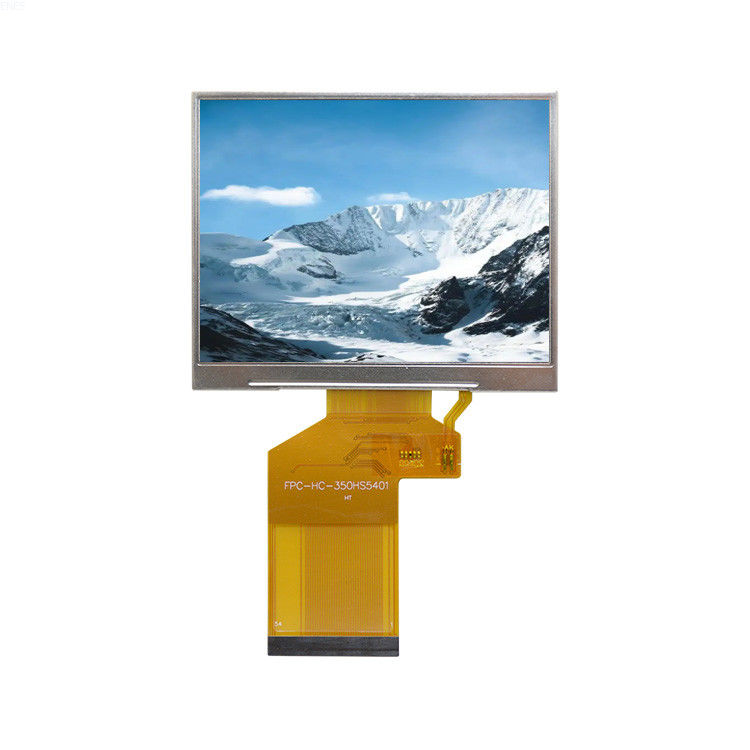

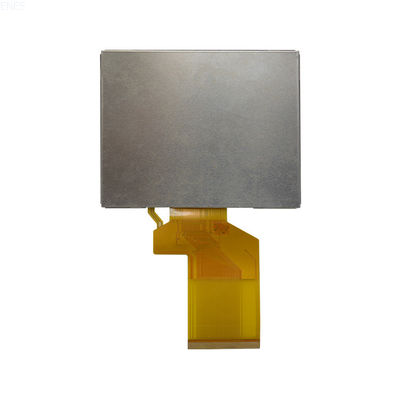

3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface

3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface
3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface
video play

Large Image :  3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T-350HS5401
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 400K/mth
Contact Now
Detailed Product Description

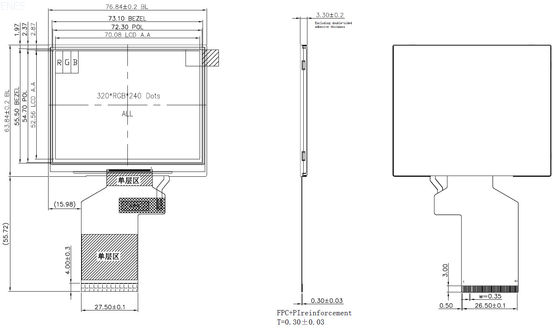

Size: 3.5 Inch Dimension: 76.84（W）* 63.84（H） * 3.30(T)
Active Area: 70.08 * 52.56 Mm Number OfDots: 320 * RGB * 240
LCD Type: A-Si TFT Viewing Direction: ALL
Driver IC: ST7272A Interface Type: RGB
Operating Temperature: -20℃~ 70℃ Storage Temperature: -30℃~ 80℃
Backlight Type: 6 LEDs Luminance: 600/cd
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

ST7272A High Brightness TFT Display

,

320x240 High Brightness TFT Display

,

RGB Interface tft lcd displays

 3.5inch 320x240 ST7272A  TFT LCD Display  Tft Screen Panel With RGB Interface



Product Description

ChengHao Display model T-350HS5401 is a color active matrix thin film transistor (TFT)liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 3.5 (Square screen) inch diagonally measured active display area with 320*3(RGB)*240 resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface 0

1.Pin Assignments

3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface 1

2.Electro-Optical Characteristics

3.5 Inch 320x240 ST7272A High Brightness TFT Display With RGB Interface 2

Note : Color chromaticty is for LCD only.
