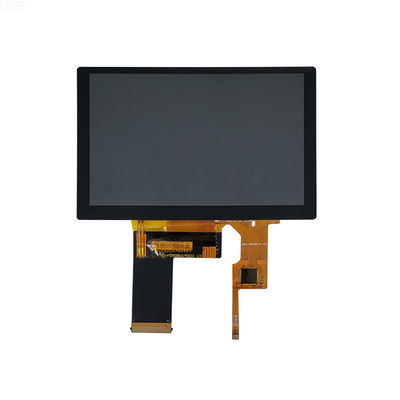

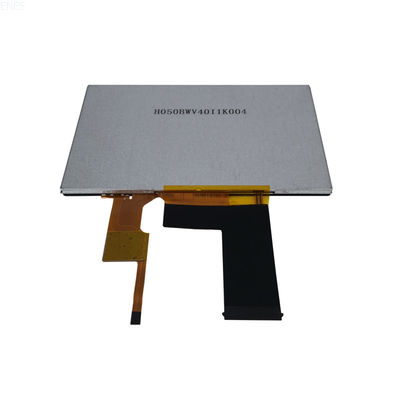

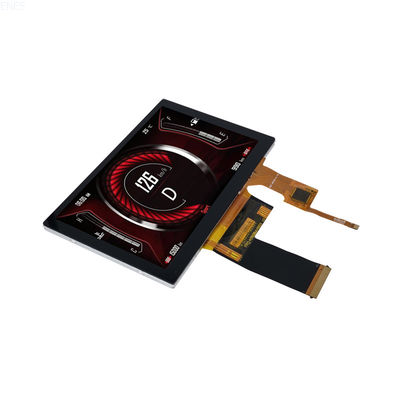

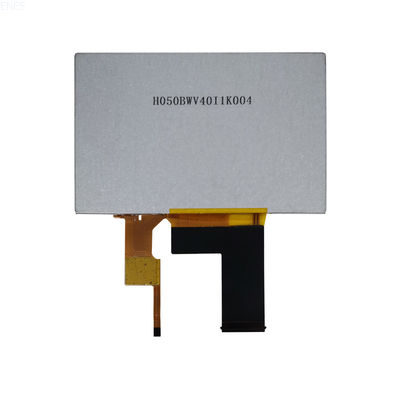

5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen

5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen
5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen
video play

Large Image :  5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T050BWV40I1K004-CT
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 500K/mth
Contact Now
Detailed Product Description
Size: 5.0inch Resolution: 800(horizontal)*480(Vertical)
Interface: RGB-24bit Connector: RGB
Color Depth: 16.7M Technology Type: A-Si
Pixel Pitch (mm): 0.045 X 0.135 Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: Normally Black LCD IC: ILI5960+ILI6122
Viewing Direction: ALL Gray Scale Inversion Direction: FREE
LCM (W X H X D) (mm): 120.7*75.9*3 Active Area(mm): 108 X 64.80
With /Without TSP: Without LED Numbers: 18LEDs
Luminance: 600/cd Operating Temperature: -20℃~ 70℃
Storage Temperature: -30℃~ 80℃ Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

5'' TFT LCD Display

,

800x480 TFT LCD Display

,

ILI6122 Capacitive Touch Screen

5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen
Product Specifications
Attribute Value
Size 5.0inch
Resolution 800(horizontal)*480(Vertical)
Interface RGB-24bit
Connector RGB
Color Depth 16.7M
Technology type a-Si
Pixel pitch (mm) 0.045 x 0.135
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
LCD IC ILI5960+ILI6122
Viewing Direction ALL
Gray Scale Inversion Direction FREE
LCM (W x H x D) (mm) 120.7*75.9*3
Active Area(mm) 108 x 64.80
With /Without TSP Without
LED Numbers 18LEDs
Luminance 600/cd
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Overview

The T050BWV40I1K004-CT is a high-quality 5" TFT LCD display module featuring IPS technology with 800x480 resolution for sharp, high-quality images. This versatile display is ideal for applications requiring color views such as smart coffee machines and industrial equipment.

Key Features
  • High Brightness: 600 cd/m² luminance for excellent visibility in various lighting conditions
  • Wide Viewing Angles: 80/80/80/80 (All viewing angles)
  • Durable Construction: Operates in -20℃ to +70℃ environments
  • Certified Quality: RoHS, CE, and FCC certified
  • Customizable: Available with various customization options
5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen 0 5'' 800x480 Dots IPS LCD IC ILI5960 ILI6122 TFT LCD Display Capacitive Touch Screen 1
Technical Specifications
  • Module No.: T050BWV40I1K004-CT
  • LCD Type: 5" TFT, IPS
  • Active Area: 108(W)×64.8(H)mm
  • Resolution: 800 x 480 dots
  • Module Size: 120.7(W)×75.8(H)×4.35(T) mm
  • FPC Pin Number: 40 pins
  • Backlight: 18 White LEDs in serial
  • Display Type: IPS/Transmissive / Normally Black
  • Life Time: 20,000 hours
Frequently Asked Questions
What is the maximum luminance of the T050BWV40I1K004-CT?

The maximum luminance is 600 cd/m².

What temperature range can the display operate in?

Operating temperature range is -20℃ to +70℃.

What certifications does the product have?

RoHS, CE, and FCC certificates.

What is the warranty period?

One-year warranty period.

What is the minimum order quantity?

MOQ is 1 piece.
