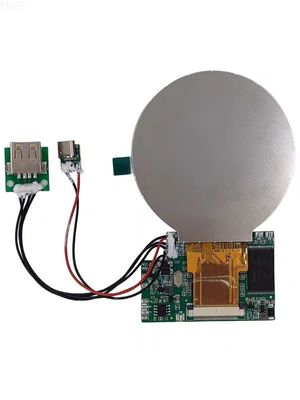

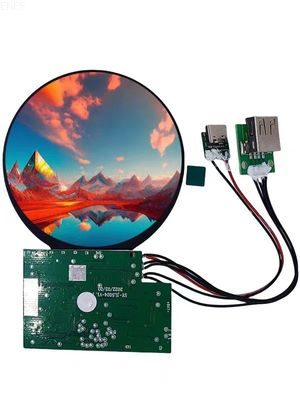

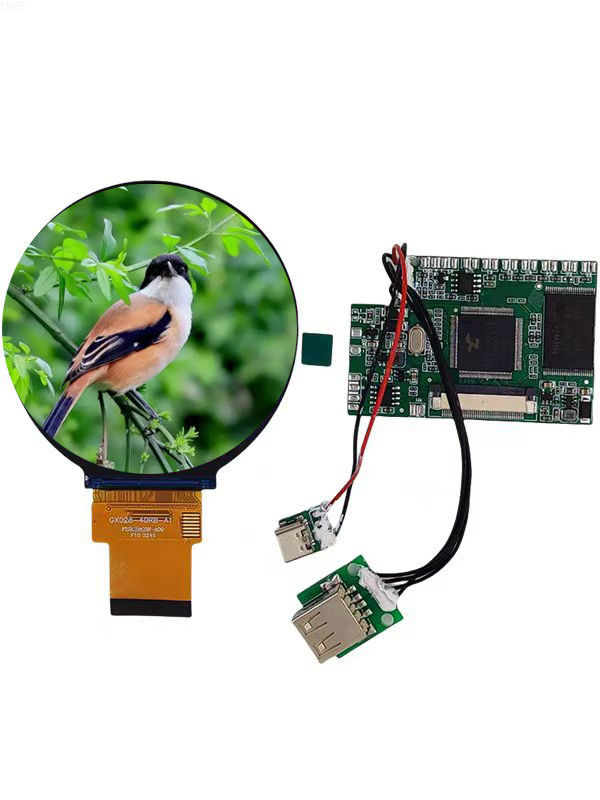

ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface

ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface
ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface
video play

Large Image :  ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX028-40RB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 2.76 Inch Display Mode: Normally Black
Resolution: 480(RGB)x480 Pixel Pitch: 0.1497(H) X 0.1462(V)
Pixel Arrangement: RGB Vertical Stripe Viewing Direction: Free
Module Outline Dimension: 73.03 (H)*76.48 (V)*2.3(D) LCD AA: 70.128 (H)* 70.128 (V)
TP VA: -- Colors: 16.7M
Surface Lumiannce: 300/cd Driver IC: ST7701SN
Interface: USB Backlight: White LED
Operating Temperature: -20℃~ +60℃ Storage Temperature: -30℃~ +80℃
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

IPS tft lcd display

,

ST7701S tft lcd display

,

2.8in tft lcd module

ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface
Product Specifications
Attribute Value
LCD size 2.76 inch
Display Mode Normally Black
Resolution 480(RGB)x480
Pixel pitch 0.1497(H) x 0.1462(V)
Pixel Arrangement RGB Vertical Stripe
Viewing direction Free
Module outline dimension 73.03 (H)*76.48 (V)*2.3(D)
LCD AA 70.128 (H)* 70.128 (V)
Colors 16.7M
Surface Lumiannce 300/cd
Driver IC ST7701SN
Interface USB
Backlight White LED
Operating Temperature -20℃~ +60℃
Storage Temperature -30℃~ +80℃
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Key Features
  • High Resolution: 480(RGB) x 480 pixels for sharp and vibrant visuals
  • Compact Size: 2.8-inch display, ideal for compact and portable devices
  • Wide Viewing Angle: Full 85° viewing angle in all directions (U/D/L/R) for versatile viewing
  • Versatile Interface: Supports RGB 24-bit + USB interface for flexible connectivity
  • Durable Performance: Operating temperature range from -30°C to +80°C
  • Bright & Clear: 300 cd/m² brightness with LED backlight
ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface 0 ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface 1 ST7701S Driver IC IPS TFT LCD Display 2.8in 480x480 Resolution USB Interface 2
Free Services
  • Free Connectors for Sample Order
  • 50% Discount for Tooling Charge
  • Free Modification for Tooling of CTP / FPC / Backlight
  • Free Tooling for Order ≥3000pcs Within 1 Year VIP
  • Free Tooling for FPC
  • Free Samples for Standard Products
  • Free Testing Board for New Projects
  • Custom backlight/CTP mold fee
Frequently Asked Questions
  • What kinds of display does TSD have?
    TSD specializes in manufacturing TFT LCD display, Monochrome LCD display, Touch Screen, customized LCD panel, COB and COG display.
  • How can I find the right product?
    Please send us your requirements or datasheet, we will recommend our standard products. If it's not fit, we will do the necessary adjustment & customization.
  • Do you accept sample order or small quantity order?
    Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ).
  • What are the payment terms?
    We usually accept T/T, Paypal, other terms to be negotiated.
  • What's the lead time?
    Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
Important Handling Instructions
  • Since LCM has been assembled and adjusted with a high degree of precision, avoid applying excessive shocks to the module or making any alterations or modifications to it
  • Do not alter, modify or change the shape of the tab on the metal frame
  • Do not make extra holes on the printed circuit board, modify its shape or change the positions of components to be attached
  • Do not damage or modify the pattern writing on the printed circuit board
  • Absolutely do not modify the zebra rubber strip (conductive rubber) or heat seal connector
  • Except for soldering the interface, do not make any alterations or modifications with a soldering iron
  • Do not drop, bend or twist the LCM
