7.0'' 1024 X 600 HDMI TFT LCD Display MIPI Serial Port Interface IPS Smart

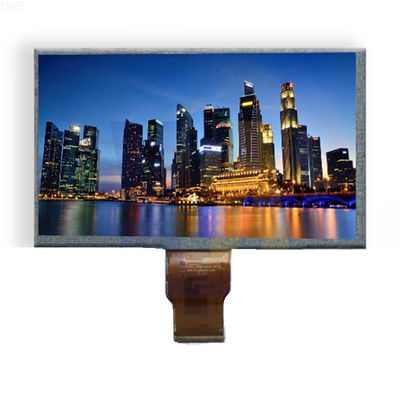

Large Image : 7.0'' 1024 X 600 HDMI TFT LCD Display MIPI Serial Port Interface IPS Smart

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX070IPS-2650RB-HDMI

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Type:	7 Inch	Dimensional Outline:	163.8(W)x97(H)x2.6(D)
Active Area:	154.2144(W)x 85.92(H)	Pixel Size:	50.2(W)xRGBx143.2(H)
Resolution:	1024(RGB)x600	Luminance:	300~500cd/m2
Surface Treatment:	Glare	Display Color:	16.7M
Viewing Direction:	IPS	Operating Temperature:	-20--+70/-30--+85(℃)
Storage Temperature:	-30--+80/-40--+90(℃)	Active Area(WxH):	Drawing
Backlight:	3*7-LEDs (white)	Data Transfer:	MIPI
Voltage:	2.8V To 3.3V	Interface:	I2C/USB

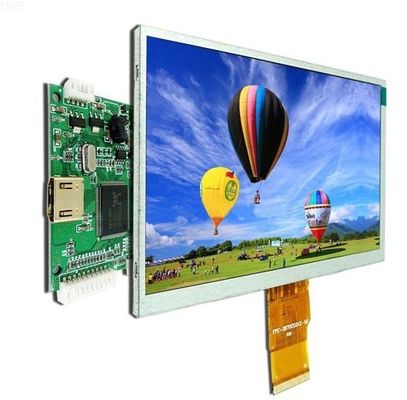

Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	1024 X 600 HDMI TFT LCD Display , 7.0'' HDMI TFT LCD Display , Smart lcd display module

7.0'' 1024 X 600 HDMI TFT LCD Display MIPI Serial Port Interface IPS Smart

Product Specifications

Attribute	Value
LCD Type	7 inch
Dimensional outline	163.8(W)x97(H)x2.6(D)
Active area	154.2144(W)x 85.92(H)
Pixel size	50.2(W)xRGBx143.2(H)
Resolution	1024(RGB)x600
Luminance	300~500cd/m²
Surface Treatment	Glare
Display color	16.7M
Viewing Direction	IPS
Operating temperature	-20--+70/-30--+85(℃)
Storage temperature	-30--+80/-40--+90(℃)
Backlight	3*7-LEDs (white)
Data Transfer	MIPI
Voltage	2.8V to 3.3V
Interface	I2C/USB
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

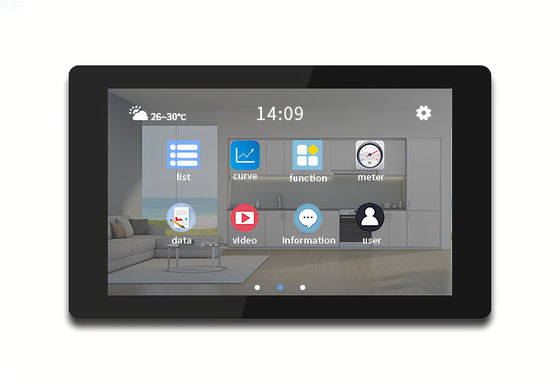

This 7-inch IPS smart LCD module delivers exceptional brightness with a high resolution of 1024x600, presenting clear and vibrant images. Featuring a powerful chip and UART serial port for efficient data transmission between devices, it offers touch operation capability with IPS technology for ultra-wide viewing angles. Ideal for industrial control systems, smart terminals, and various applications that demand superior display performance.

Key Advantages

Custom UI design & hardware/software development support
Compatible with different STM32 main controllers
Supports LINUX & RTOS systems
Excellent screen refresh rate
Dynamic display effects

Frequently Asked Questions

How can I find the right product?

Please send us your requirements or datasheet. We will recommend our standard products, and if they don't fit, we'll make necessary adjustments and customizations.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity orders as pilot production (no less than MOQ).

What are the payment terms?

We usually accept T/T, PayPal, with other terms available for negotiation.

What's the lead time?

Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and specific product requirements).
