12.3 inch Display 1920x720 Sunlight Readable 1200nits Industrial Grade IPS 178° LVDS Capacitive Touch High-Bright WLED Operation MODEL NAMETFT Display Module with CTP

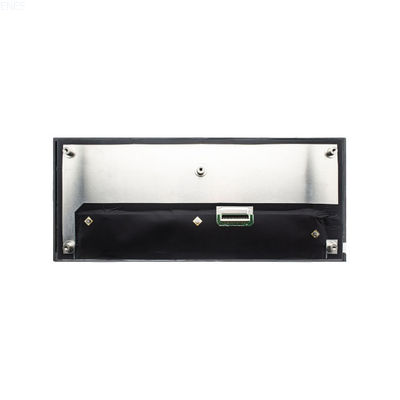

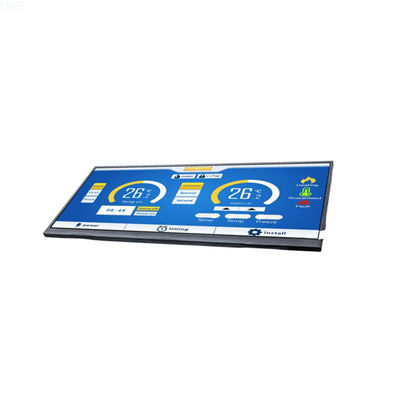

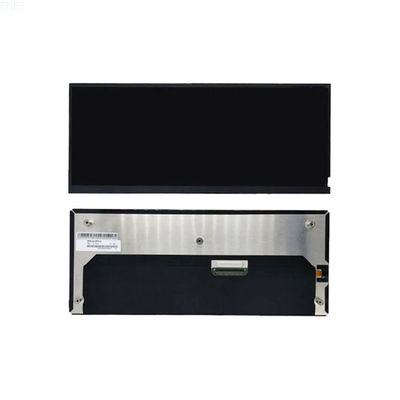

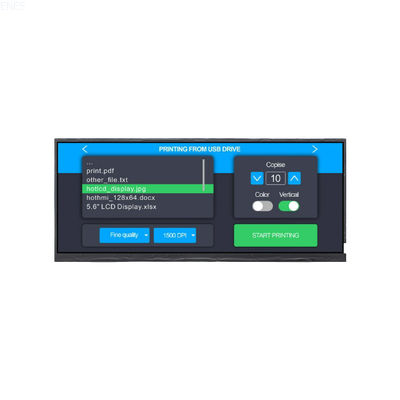

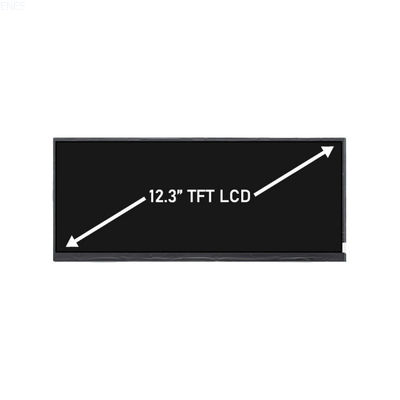

Large Image : 12.3 inch Display 1920x720 Sunlight Readable 1200nits Industrial Grade IPS 178° LVDS Capacitive Touch High-Bright WLED Operation MODEL NAMETFT Display Module with CTP

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T123WF01
Document:	T123WF01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	US$ 21.5（can be negotiated）
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

LCD Size:	12.3inch	LCM Dimension:	307（W）* 125.5（H） * 7.7(T)mm
LCD Active Area:	292.03* 109.51mm	Number OfDots:	1920* RGB * 720pixel
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	--	Interface Type:	LVDS
Operating Temperature:	-30℃~ 80℃	Storage Temperature:	-30℃~ 85℃
Backlight Type:	48 LEDs	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

12.3-inch Sunlight Readable Industrial TFT Display Module

T123WF01 high-brightness IPS LCD with capacitive touch panel, designed for automotive and industrial applications requiring durability and extreme environment performance.

Technical Specifications

Attribute	Value
LCD Size	12.3inch
LCM Dimension	307(W) × 125.5(H) × 7.7(T)mm
LCD Active Area	292.03 × 109.51mm
Resolution	1920(RGB) × 720pixel
LCD Type	a-Si TFT
Viewing Direction	ALL
Interface Type	LVDS
Operating Temperature	-30℃ to 80℃
Storage Temperature	-30℃ to 85℃
Backlight Type	48 LEDs
Custom Service	FPC, CTP, RTP, pin definition, packing, HD-MI board

Product Overview

Industrial-grade 12.3-inch TFT-LCD module designed for outdoor high-brightness and vehicle-mounted applications. Features a-Si TFT-LCD technology with sRGB color, wide temperature range (-30 to 85°C operating, -40 to 90°C storage), high brightness (1200nits), white LED backlight, and ultra-wide screen format with display flip capability.

Key Features

Ultrawide Form Factor & High Resolution

8:3 aspect ratio (1920×720) ideal for dashboard layouts and data-dense interfaces
Pixel density: ~167 PPI with RGB vertical stripe arrangement

Environmental Adaptability

Wide temperature range: -30°C to 85°C (industrial-grade)
Sunlight readability: 1200nits brightness with anti-glare coatings
Vibration resistance: 2.9G (28.4m/s²)

High-Reliability Interfaces

LVDS interface for high-speed data transfer (up to 2 Gbps) with low EMI
Shock and dust resistant construction

Optical Performance

IPS technology with 178° viewing angles
High contrast ratio (1,100:1 to 1,500:1) for deep blacks

Customization Options

Capacitive or resistive touch panel options
Long-term supply guarantee (5+ years)
RoHS compliant

Mechanical Drawings

Primary Applications

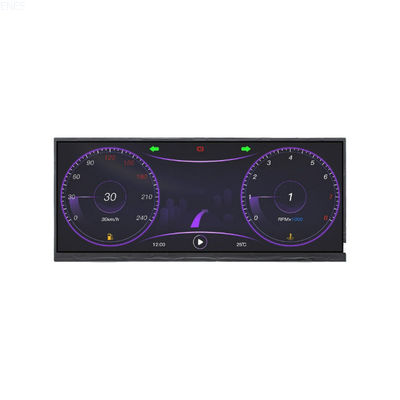

Automotive Instrument Clusters: Digital dashboards for real-time driving data display with customizable themes
Industrial HMIs: Control systems for manufacturing lines and machinery monitoring
Medical Devices: Patient vital displays requiring high reliability
Outdoor Advertising: High-brightness displays for direct sunlight visibility
Embedded Systems: Server racks and IoT controllers with space constraints

Frequently Asked Questions

Q: When can I get the quotation?

A: We usually quote within 12 hours after receiving your inquiry. For urgent requests, please contact us directly.

Q: What is your warranty?

A: We provide a one-year warranty.

Q: Can I purchase samples?

A: Yes, sample orders are welcome to test our product quality and service.

Q: How to place bulk orders?

A: 1) Provide model number, quantity, and requirements
2) We issue Proforma Invoice
3) Production begins after payment
4) Delivery as specified

Q: What shipping methods do you offer?

A: DHL, UPS, FedEx, TNT, EMS, air cargo, and sea cargo options available.

Q: What about product quality?

A: Rigorous QC processes including incoming, in-process, and final quality control with 100% testing.

Q: Do you provide OEM service?

A: Yes, we offer professional OEM services.

Q: Do you have after-sales service?

A: Yes, we provide technical support and RMA services with firmware/application updates.
