3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

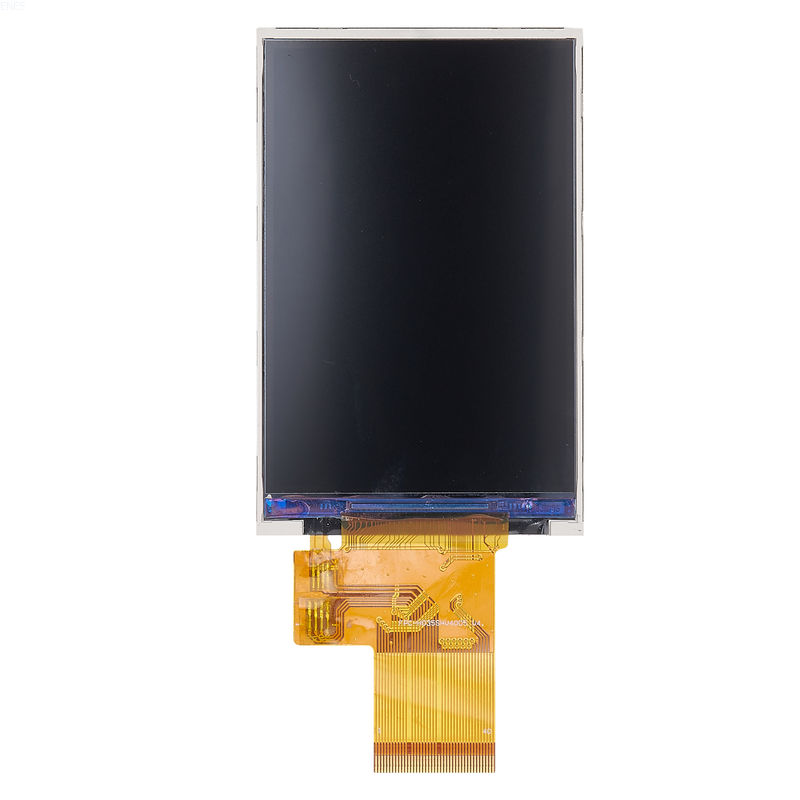

Large Image : 3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T035SHV40I3505-T

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~10 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	3.5inch	Resolution:	320(horizontal)*480(Vertical)
Interface:	MCU Interface	Connect Type:	Connector
Color Depth:	262K	Technology Type:	A-Si
Pixel Pitch:	0.153x 0.153(mm)	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	Driver IC:	ILI9488
Surface Treatment:	HC	Viewing Direction:	ALL
LCM:	54.9485.53.7(mm)	Active Area:	48.96 X 73.44(mm)
LED Numbers:	6 LEDs	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board，different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:	340x420 Customized LCD Panel , 3.5'' Customized LCD Panel , ILI9488 standard tft

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

Product Specifications

Attribute	Value
Size	3.5inch
Resolution	320(horizontal)*480(Vertical)
Interface	MCU interface
Connect type	connector
Color Depth	262K
Technology type	a-Si
Pixel pitch	0.153x 0.153(mm)
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally Black
Driver IC	ILI9488
Surface Treatment	HC
Viewing Direction	ALL
LCM	54.9485.53.7(mm)
Active Area	48.96 x 73.44(mm)
LED Numbers	6 LEDs
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board, different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.

Product Description

This 3.5-inch touch panel features a 340x480 resolution screen with clear and bright images. Designed for easy connection and adaptation to systems with USB and MCU interface interfaces. The TP (Touch plus Panel) technology supports different and sensitive touch methods.

This touch screen provides a reliable, user-friendly solution for various applications including DIY projects, embedded systems, and small industrial applications. Its compact size makes it perfect for space-limited designs without compromising performance.

Electrical Characteristics

Note 1: Each LED: IF =20 mA, VF =3.2V.

Note 2: Optical performance should be evaluated at Ta=25℃ only.

Note 3: If LED is driven by high current, high ambient temperature & humidity condition, the life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.
