4.3 Inch High Brightness TFT Display RGB 480x272 Normal Black IPS SC7283

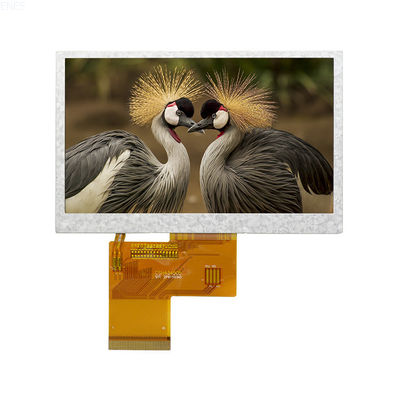

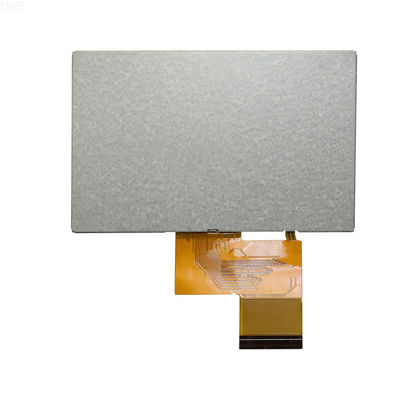

Large Image : 4.3 Inch High Brightness TFT Display RGB 480x272 Normal Black IPS SC7283

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T43H4505

Payment & Shipping Terms:

Minimum Order Quantity:	1000/PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~10 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	4.3 TFT	Brightness:	500 Cd/m2
LCM Dimension:	105.5（W）* 67.2（H） * 2.9(T)	LCD Active Area:	95.04 * 53.86
Number OfDots:	480 * RGB * 272	LCD Type:	A-Si TFT
Viewing Direction:	ALL	Driver IC:	ST7283
Interface Type:	RGB	Operating Temperature:	-20℃~ 70℃
Storage Temperature:	-30℃~ 80℃	Backlight Type:	10 LEDs
Highlight:	480x272 High Brightness TFT Display , RGB High Brightness TFT Display , SC7283 4.3 inch tft lcd display

4.3 Inch High Brightness TFT Display RGB 480x272 Normal Black IPS SC7283

Product Specifications

Attribute	Value
Size	4.3 TFT
Brightness	500 cd/m²
LCM Dimension	105.5(W) × 67.2(H) × 2.9(T) mm
LCD Active Area	95.04 × 53.86 mm
Number Of Dots	480 × RGB × 272
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	ST7283
Interface Type	RGB
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Backlight Type	10 LEDs

Product Description

4.3-inch RGB 480×272 TFT Normal Black IPS SC7283 High Brightness TFT Display

Module size: 105.5(W) × 67.2(H) × 2.9(T) mm | 480 × RGB × 272 Dots | Driver: SC7283

Features 4-wire resistive touch screen, WHITE LED backlight, top view, wide temperature range, transmissive polarizer, 500 NITS brightness, and RoHS compliance.

Operating Guidelines

Important Handling Instructions

The display panel is made of glass and polarizer. As glass is fragile, it tends to break or chip during handling, especially on the edges. Avoid dropping or jarring the module.
If the display panel is damaged and liquid crystal substance leaks out, do not ingest. If contact occurs with skin or clothing, wash immediately with soap and water.
Do not apply excessive force to the display surface or adjoining areas as this may cause color variation. Avoid bare hand contact to prevent staining and insulation degradation.
The polarizer is soft and easily scratched. Handle carefully and avoid contact with hard objects. After low-temperature testing, warm modules gradually before exposing to room temperature.
For cleaning, gently wipe with a soft dry cloth. For stubborn contamination, use isopropyl alcohol or ethyl alcohol. Do not scrub hard.
Avoid using solvents other than those specified as they may damage the polarizer.

The resistive touch panel senses touch by measuring contact location on the glass. It operates independently of temperature and humidity and is simple to integrate without requiring a separate controller chip.

The transmissive polarizer is ideal for displays with constant backlight operation, providing maximum brightness with efficient power consumption.
