0.85'' 128 X 128 IPS Super Small Square TFT LCD Screen Display SPI 4 Wire Mini LCD Module Panel

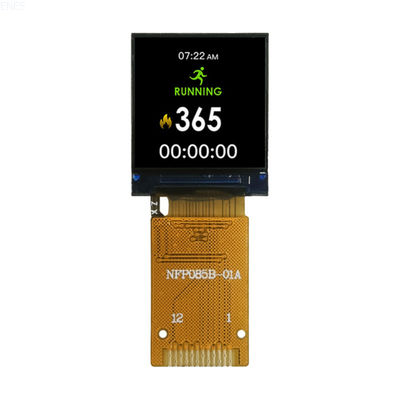

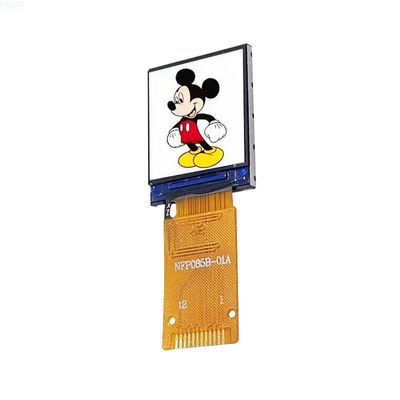

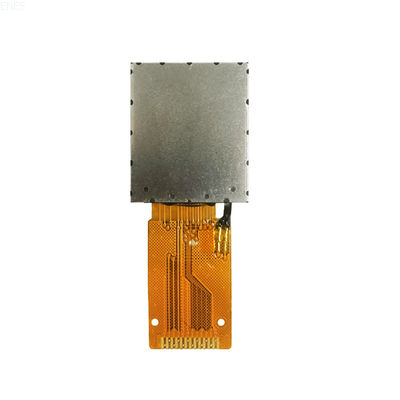

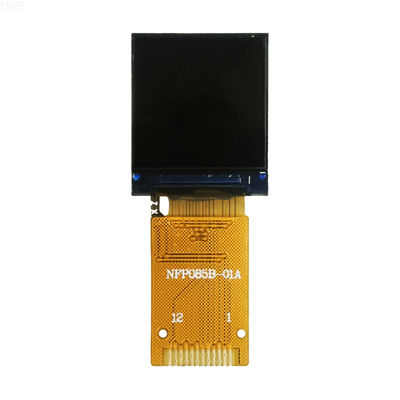

Large Image : 0.85'' 128 X 128 IPS Super Small Square TFT LCD Screen Display SPI 4 Wire Mini LCD Module Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ENSN
Certification:	ISO9001/ISO14001
Model Number:	T085-1212TBWIG42-H12
Document:	Z085-1212TBWIG42-H12 Model ...1).pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000/pcs
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	0.85 Inch	Resolution:	128*128mm
Driver LC:	GC9107	Viewing Angle:	IPS Full Viewing Angle
Interface:	SPl 4 Lines	Luminance:	330
LCM Dimension:	17.58(H)x20.82(V)x1.5(D)mm	Active Area:	15.2064(H)x15.2064(V)mm
FPC Connecting Mode:	12 Pin Soldering FPC	Touch Panel:	Without Touch Panel
Testing Board:	Optional	Datasheet & Initial Code:	Please Contact Service
Customization Service:	FPC(Shape,Pin Definition,Connector,EMl Film)Backlight(Dimension,Using Life,LED Color,Luminance)Customize Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:	Square lcd screen display , TFT lcd screen display , 128 X 128 lcd module panel

0.85'' 128 X 128 IPS Super Small Square TFT LCD Screen Display SPI 4 Wire Mini LCD Module Panel

Product Specifications

Attribute	Value
Size	0.85 inch
Resolution	128*128mm
Driver IC	GC9107
Viewing Angle	IPS Full Viewing Angle
Interface	SPI 4 Lines
Luminance	330
LCM Dimension	17.58(H)x20.82(V)x1.5(D)mm
Active Area	15.2064(H)x15.2064(V)mm
FPC Connecting Mode	12 Pin Soldering FPC
Touch Panel	Without Touch Panel
Testing Board	Optional
Customization Service	FPC (Shape, Pin Definition, Connector, EMI Film) Backlight (Dimension, Using Life, LED Color, Luminance) Customize Touch Panel (Shape, Dimension, FPC, Touch Points)

Product Details

0.85 Inch 128*128 IPS Super Small Square TFT LCD Screen Display SPI 4Wire Mini LCD Module Panel GC9107 with 12 Pin Soldering FPC.

Pin Description

NO	Symbol	Description
1	GND	Power Ground
2	LEDK	LED Cathode
3	LEDA	LED Anode
4	VDD	Power Supply for Analog
5	GND	Power Ground
6	D/C	Display data/command selection pin in 4-line serial interface
7	CS	Chip selection pin; Low enable, high disable
8	SCL	Serial interface clock
9	SDA	SPI interface input/output pin. The data is latched on the rising edge of the SCL signal
10	RESET	Reset signal (active low) to properly initialize the chip
11	GND	Power Ground

Technical Notes

Display Type: 0.85" TFT
Viewing direction: ALL
Polarizer mode: Transmissive/normally black
Driver IC: GC9107
Operating temperature: -20°C ~ 70°C
Storage temperature: -30°C ~ 80°C
Back light: 1 chip-white LED: 20mA, 3.0V
LCM Luminance: 330 C/M² (TYP)
Unmarked tolerance: ±0.2
Recommended window area of the case is 0.3mm larger than the LCD A.A area
Product complies with ROHS standards

Backlight LCD Module

The backlight of our TFT LCD Module is made of white LED, providing a bright and clear display that ensures excellent visibility in various lighting conditions.

Handling Precautions

Safety

Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal contacts skin or clothing, wash immediately with soap and water.

Handling Instructions

The LCD panel is made of plate glass - avoid mechanical shock or excessive force
The polarizer is easily damaged - handle carefully to avoid scratches
Avoid touching the module surface with bare hands to prevent contamination
Maintain space between LCD panels and other components
Use a cover board (such as acrylic) to protect the LCD panel surface
Avoid environments where condensation occurs to prevent electrode disconnection
Do not leave module in direct sunlight to prevent IC malfunction
