5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

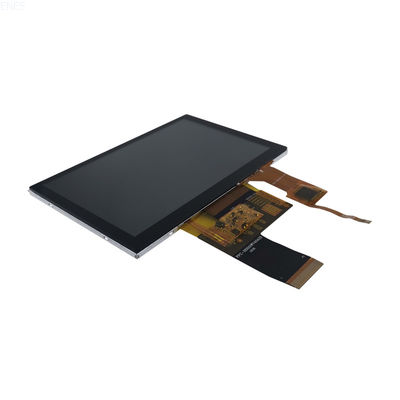

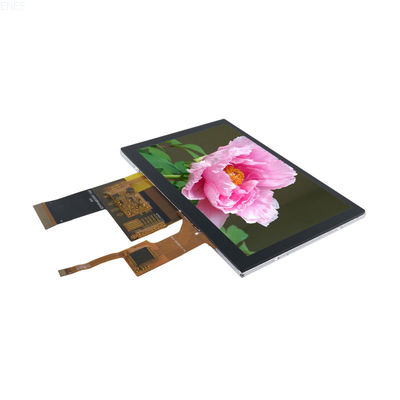

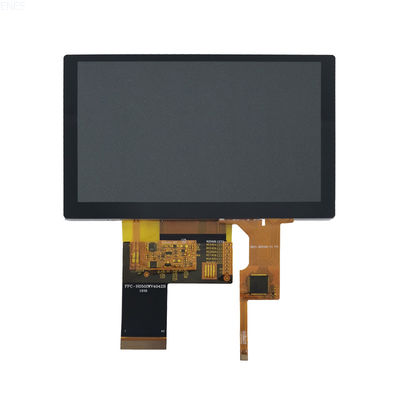

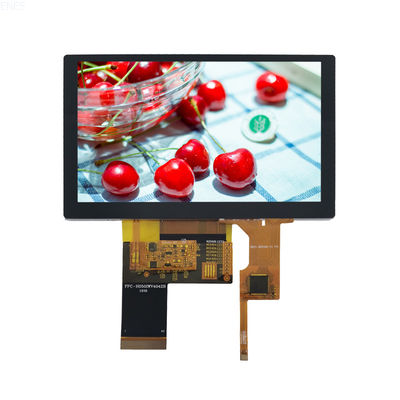

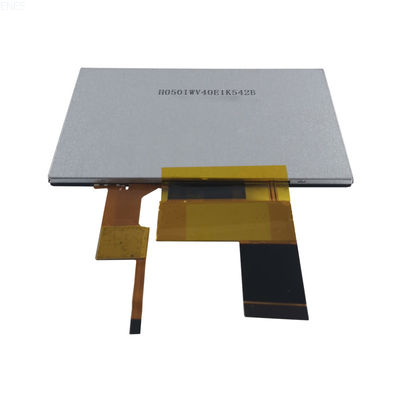

Large Image : 5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T050IWV40E1K542-CT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	5.0inch	Resolution:	800(horizontal)*480(Vertical)
Interface:	RGB-24bit	Connector:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Pixel Pitch (mm):	0.045 X 0.135	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	LCD IC:	ILI5960+ILI6122
Pin:	40Pin	Viewing Direction:	ALL (80/80/80/80)
Gray Scale Inversion Direction:	6 O’clock	LCM (W X H X D) (mm):	120.775.93
Active Area(mm):	108 X 64.80	With /Without TSP:	Without
LED Numbers:	18LEDs	Luminance:	500/cd
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

5.0 Inch 800×480 IPS ALL Resolution 40 Pin ILI5960 LCD Screen

Product Specifications

Attribute	Value
Size	5.0inch
Resolution	800×480 (H×V)
Interface	RGB-24bit
Color Depth	16.7M
Technology type	a-Si
Pixel pitch (mm)	0.045 × 0.135
Display Mode	Normally Black
LCD IC	ILI5960+ILI6122
Pin	40Pin
Viewing Direction	ALL (80/80/80/80)
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

Key Features

High-quality IPS panel with all-viewing direction capability
40-pin interface for reliable connections
800×480 resolution for clear image display
Wide operating temperature range (-20℃ to 70℃)
16.7M color depth for vibrant display

Technical Notes

Display Type: 5.0" TFT
Viewing Direction: All Viewing Direction
LCD Drive IC: ILI5960+ILI6122
Protection: ROHS compliant
Unmarked Tolerance: ±0.20

Quality Assurance

High-quality A-regulated raw materials for LCD panel and Driver IC
Brand new polarizers and backlight film materials
Strict quality control with 98.5% through rate
5-stage testing process including aging test at 60℃
Customer online defect rate as low as 0.3%

Custom Services

Available customization options include FPC, capacitive touch panel (CTP), resistive touch panel (RTP), pin definition, packing, and HD-MI board integration.

Tag:

Contact Person: Mr. james

Tel: 13924613564

Fax: 86-0755-3693-4482
