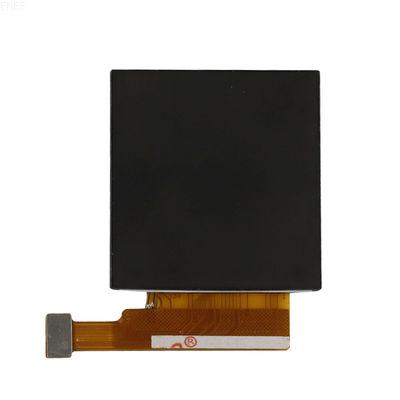

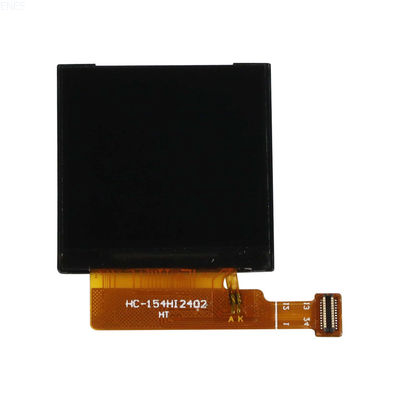

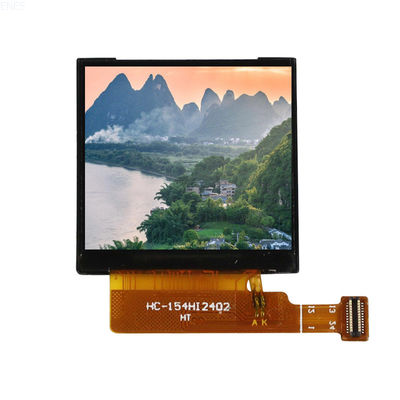

1.54 Inch 240x240 IPS Square Watch TFT LCD Screen Module ST7789V SPI LCD Display Touch Panel Optional

Large Image : 1.54 Inch 240x240 IPS Square Watch TFT LCD Screen Module ST7789V SPI LCD Display Touch Panel Optional

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-154HI2402

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	8~12 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.54TFT	Dimension:	31.52（W）* 33.72（H） *1.90(T)
Active Area:	27.72* 27.72	Number OfDots:	240 * RGB * 240
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ST7789V	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	3 LEDs	Luminance:	Customizable
Interface Pins:	24PIN SPI/MCU	With /without TsP:	Without TP/with CTP
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

1.54 inch 240x240 IPS Square Watch TFT LCD Screen Module ST7789V SPI LCD Display Touch Panel Optional

Screen uses 3 lines and 2 channels

Electrical Specification

DC Characteristics

Item	Symbol	Min	Typ	Max	Unit
TFT gate on voltage	VGH	--	15	--	V
TFT gate off voltage	VGL	--	-10	--	V
TFT common electrode Voltage	Vcom	--	-1	--	V

AC Characteristics

Refer to the SPEC of ST7789V

Typical Operation Conditions

Item	Symbol	Min.	Typ.	Max.	Unit

Analog Supply Voltage	VCI	2.5	2.8	3.3	V
Digital Supply Voltage	VDD	2.5	2.8	3.3	V
I/O Supply Voltage	IOVCC	1.65	1.8/2.8	3.3	V
Input High Voltage	VIH	0.8*IOVCC	-	IOVCC	V
Input Low Voltage	VIL	0	-	0.2*IOVCC	V
Output High Voltage	VOH	0.8*IOVCC	-	-	V
Output Low Voltage	VOL	-	-	0.2*IOVCC	V

Backlight Circuit Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
LED Current	IB	--	45	60	mA
LED Voltage	Vf	2.8	3.0	3.2	V
CIE	X	0.265	0.295	0.325
CIE	Y	0.26	0.29	0.32
Brightness of LCM	L	--	--	--	cd/m2
