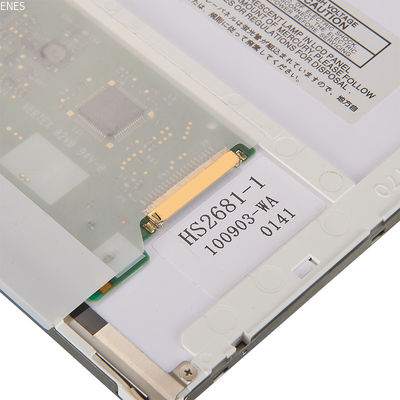

12.1 Inch TFT LCD 1024x768 Resolution LVDS Interface with Customized FPC and TP

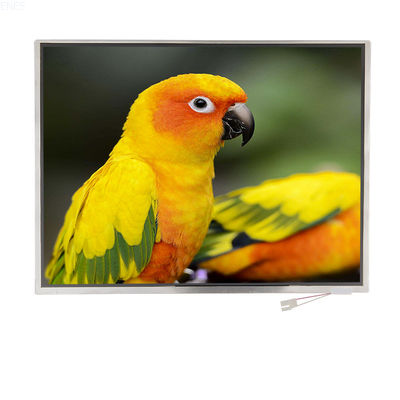

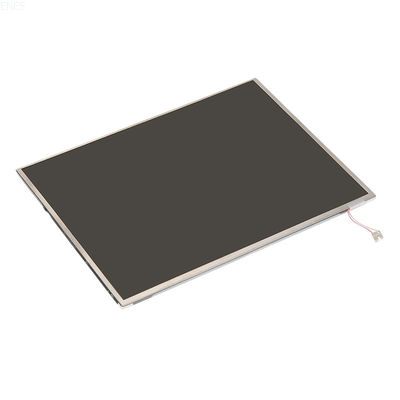

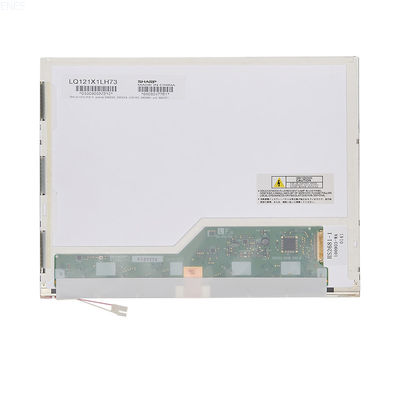

Large Image : 12.1 Inch TFT LCD 1024x768 Resolution LVDS Interface with Customized FPC and TP

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T121XG01

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	12.1 Inch	Resolution:	1024(horizontal)*768(Vertical)
Interface:	LVDS	Connect Type:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Pixel Configuration:	R.G.B.-Stripe	Display Mode:	Normally Black
Surface Treatment:	HC	Viewing Direction:	Full View
Gray Scale Direction:	Free	LCM (W X H X D) (mm):	260.52048.6
Active Area(mm):	245.76x 184.32	LED Numbers:	44LEDs
Custom Service:	Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.

Input/Output Terminals

LCM connector pin assignment (CN1) : STARCONN 076B20-0048RA-G4 or JAE FI-SEB20P-HFE (or equivalent)

Mechanical Drawing

Optical Characteristics

Items		Symbol	Condition	Min.	Typ.	Max.	Unit	Remark
Viewing angles		fθ_T	Center CR≥10	80	85	-	Degree.	Note2
		fθ_B		80	85	-
		fθ_L		80	85	-
		fθ_R		80	85	-
Contrast Ratio		CR	Θ =0	600	900	-	-	Note1, Note3
Response Time		T_ON	25°C	-	20	30	ms	Note1, Note4
		T_OFF		-	25	35
Chromaticity	White	X_W	Backlight is on	0.316	0.318	0.320	-	Note1, Note5
		Y_W		0.364	0.366	0.368	-
	Red	X_R		0.649	0.651	0.653	-
		Y_R		0.330	0.332	0.335	-
	Green	X_G		0.286	0.288	0.385	-
		Y_G		0.560	0.562	0.564	-
	Blue	X_B		0.136	0.138	0.140	-
		Y_B		0.123	0.125	0.127	-
Uniformity		U		75	80	-	%	Note1, Note6
NTSC					61.2		%	Note5
Luminance		L			500			Note1, Note7

Test Conditions:

1. IF= 60mA(one channel),the ambient temperature is 25°C

2. The test systems refer to Note 1 and Note 2.

Note 1:Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Environmental / Reliability Tests

No	Test Item	Condition	Remarks
1	High Temperature Opeartion	Ts= +70℃, 240hrs	Note 1 IEC60068-2-2, GB2423. 2-89
2	Low Temperature Opeartion	Ta= -20℃, 240hrs	Note 2 IEC60068-2-1 GB2423.1-89
3	High Temperature Storage	Ta= +80℃, 240hrs	IEC60068-2-2 GB2423. 2-89
4	Low Temperature Storage	Ta= -30℃, 240hrs	IEC60068-2-1 GB/T2423.1-89
5	High Temperature & Humidity Storage	Ta= +60℃, 90% RH max, 160 hours	IEC60068-2-3 GB/T2423.3-2006
6	Thermal Shock (Non-operation)	-30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle	Start with cold temperature,end with high temperature IEC60068-2-14, GB2423.22-87
7	Electro Static Discharge (Opeartion)	C=150pF, R=330 Ω, 5 points/panel Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~ 35℃, 30% ~ 60%, 86Kpa ~ 106Kpa)	IEC61000-4-2 GB/T17626.2-1998
8	Vibration (Non-operation)	Frequency range: 10~55Hz, Stroke: 1.mm Sweep: 10Hz~55Hz~10Hz 2 hours for each direction of X .Y. Z. (package condition)	IEC60068-2-6 GB/T2423.5-1995
9	Shock (Non-operation)	60G 6ms, ± X, ±Y , ± Z 3 times for each direction	IEC60068-2-27 GB/T2423.5-1995
10	Package Drop Test	Height: 80 cm, 1 corner, 3 edges, 6 surfaces	IEC60068-2-32 GB/T2423.8-1995
