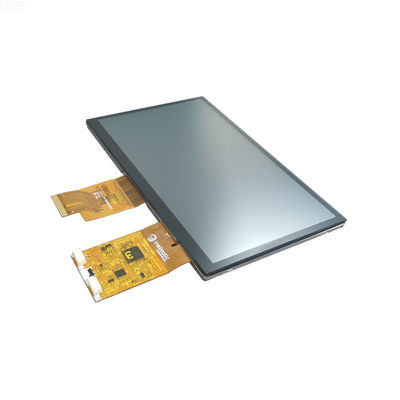

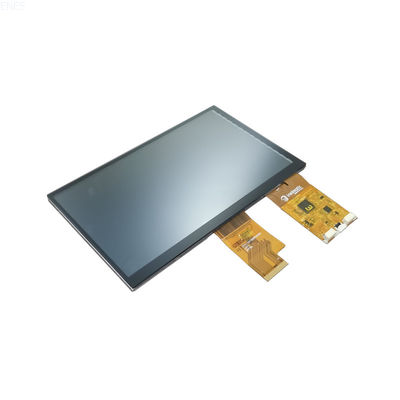

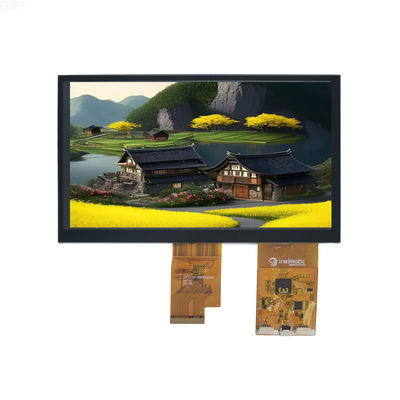

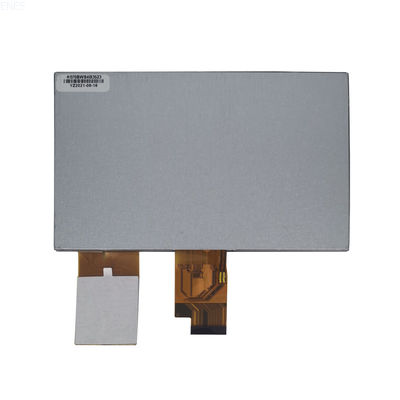

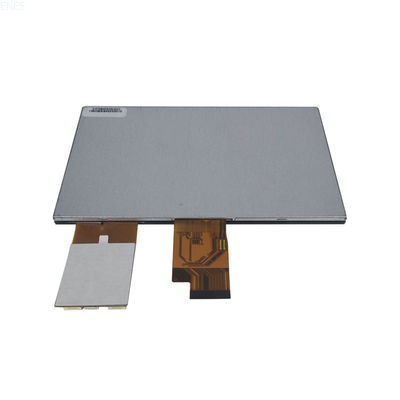

7 Inch IPS LVDS 1024x600 Resolution Interface LCD Touch Screen for Smart Home

Large Image : 7 Inch IPS LVDS 1024x600 Resolution Interface LCD Touch Screen for Smart Home

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T070B W S40I3523

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	7.0 Inch	Number Of Pixels:	1024×RGB (3) ×600
Active Area:	154.21(H)x85.92(V) Mm	Pixel Pitch:	0.1506(H)×0.1432(V) Mm
Outline Dimension:	164.9(W)×100(H)×2.8(D)	Number Of Colors:	16.7M
Display Mode:	Normally Black	LCD IC:	HX8282-A02+HX8696-A01
Viewing Direction:	ALL	Display Format:	RGB Vertical Stripe
Luminance (cd/m^2):	350(TYP.) (Customizable)	Contrast Ratio:	800(TYP.)
Surface Treatment:	Anti-Glare	Interface:	LVDS
Touch Structure:	G+G, G+F, P+G, G+F+F	Glass Brand:	AGC, Gorilla, BOE, CTC, Inolux, Etc.
Backlight:	White LED	Operating Temperature:	-20--+70/-30--+85(℃)
Storage Temperature:	-30--+80/-40--+90(℃)	Custom Service:	Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.

7 Inch IPS LVDS 1024x600 Resolution Interface LCD Touch Screen for Smart Home

Product Specifications

Attribute	Value
Panel Size	7.0 inch
Number of Pixels	1024×RGB (3) ×600
Active Area	154.21(H)x85.92(V) mm
Pixel Pitch	0.1506(H)×0.1432(V) mm
Outline Dimension	164.9(W)×100(H)×2.8(D)
Number of Colors	16.7M
Display Mode	Normally Black
LCD IC	HX8282-A02+HX8696-A01
Viewing Direction	ALL
Display Format	RGB vertical stripe
Luminance (cd/m²)	350(TYP.) (Customizable)
Contrast Ratio	800(TYP.)
Surface Treatment	Anti-Glare
Interface	LVDS
Touch Structure	G+G, G+F, P+G, G+F+F
Glass Brand	AGC, Gorilla, BOE, CTC, Inolux, etc.
Backlight	White LED
Operating Temperature	-20--+70/-30--+85(℃)
Storage Temperature	-30--+80/-40--+90(℃)
Custom Service	Different colors, shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.

Product Description

This 7-inch IPS LCD touchscreen is designed specifically for smart home applications. Featuring 1024×600 resolution, it provides clear visibility for smart home control interfaces. IPS technology ensures wide viewing angles, allowing clear visibility from any position.

The LVDS interface enables high-speed data transfer, while USB connectivity simplifies integration with external devices. The I2C interface provides stable communication, delivering a simple and comfortable interactive experience for smart home systems.

Electrical Characteristics

Customization Options

ESEN offers comprehensive customization services for capacitive touch panels:

Custom sizes, resolutions, colors, and shapes
Logo printing, through holes, transparent windows, and silk printing
Air bonding (tape bonding) and optical bonding (OCA bonding, OCR bonding)
AG, AF, AR coating on cover lens surfaces
Anti-UV design options

Frequently Asked Questions

What kinds of display does ESEN have?

ESEN specializes in manufacturing TFT LCD displays, Monochrome LCD displays, Touch Screens, customized LCD panels, COB and COG displays.

How can I find the right product?

Please send us your requirements or datasheet. We will recommend standard products or make necessary adjustments for customization.

Do you accept sample order or small quantity order?

Yes, sample orders for testing and small quantity pilot production orders (no less than MOQ) are accepted.

What are the payment terms?

We typically accept T/T and PayPal, with other terms negotiable.

What's the lead time?

Sample orders typically ship in 3-5 days if in stock. Mass production takes 4-5 weeks (depending on quantity and product specifics).
