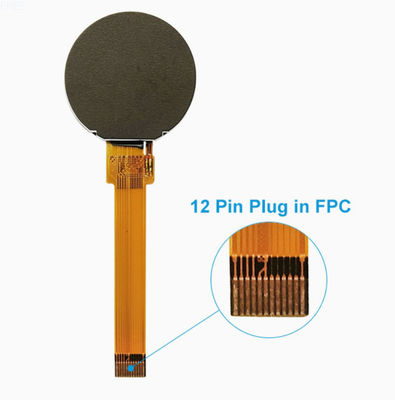

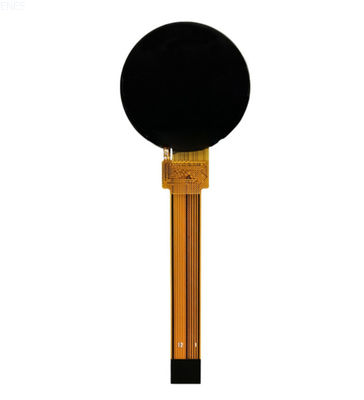

0.99 Inch 128x115 Mini Circular TFT LcD Module Screen 1inch 4 Wire SPl 12 Pin Gc9107 LCD TFT Panel
What can we customize for you?
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature:
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FF
Pin Description
| NO |
Symbol |
Description |
| 1 |
GND |
Power Ground |
| 2 |
LEDK |
LED Cathode |
| 3 |
LEDA |
LED Anode |
| 4 |
VDD |
Power Supply for Analog |
| 5 |
GND |
Power Ground |
| 6 |
D/C |
Display data/command selection pin in 4-line serial interface. |
| 7 |
CS |
Chip selection pin;Low enable,high disable. |
| 8 |
SCL |
This pin is used to be serial interface clock |
| 9 |
SDA |
SPl interface inputoutput pin.the data is latched on the rising edge of the SCLsignal. |
| 10 |
RESET |
This signal will reset the device and it must be applied to properly initialize thechip.Signal is active low. |
| 11 |
GND |
Power Ground |
Package Specifications
| Item |
Quantity |
| Module |
480 per Primary Box |
| Holding Trays (A) |
15 per Primary Box |
| Total Trays (B) |
16 per Primary Box (Including 1 Empty Tray) |
| Primary Box (C) |
1~4 per Carton (4 as Major / Maximum) |
FAQ of TFT LCD Display:
Q: I haven't done business with you guys before,how can i trust your company?
A: We are specialized in developing, manufacturing and selling LCD modules, TFT LCD display, Capacitive touch panel, Customized LCD panel, COB and COG, we've been specialized in LCD industries for more than 10 years. What's more, we've got quite a lot authority certificates, for example, ISO 9100, ISO14001, IS0 13485, IATF16949 etc.
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: What are your company's shipping terms and delivery time?
A: Well, it depends on the quantity of your order. You know, we need time to manufacture the machines. But in most cases, delivery will be made within 10- 15 working days after shipment. As for the detailed costs, they depend on your final order.
Conclusion:
In summary, our TFT LCD Module offers a combination of high-quality display, durability, and reliability, making it a top choice for various industrial and commercial applications. With custom options available, we can provide a tailored solution to meet your specific display needs. Contact us today to learn more about our TFT LCD Module and how it can benefit your business.
