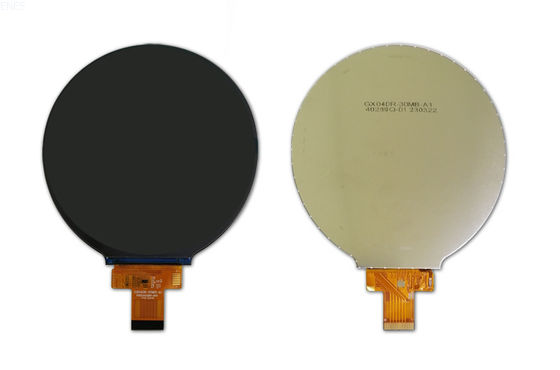

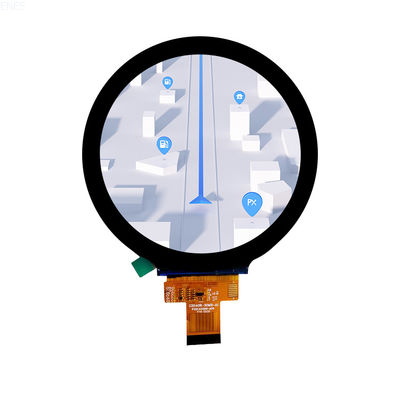

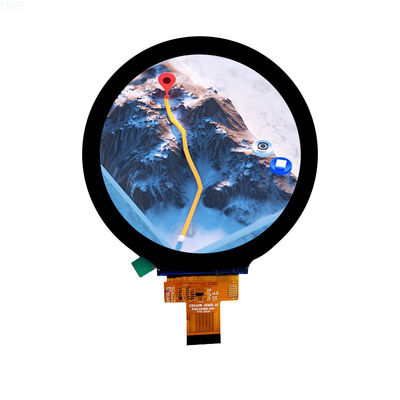

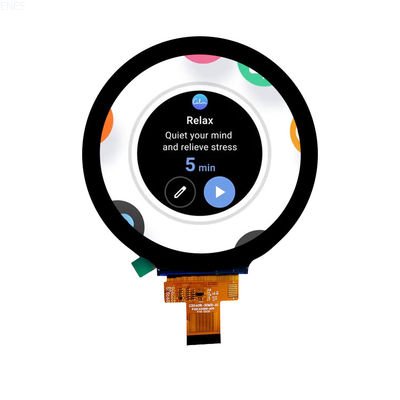

4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC

4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC
4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC
video play

Large Image :  4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX040R-30MB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 4.0 Inch Display Mode: Normally Black
Resolution: 720(RGB)x720 Pixel Pitch: 0.047 (H) X 0.141 (V)
Pixel Arrangement: RGB Stripe Viewing Direction: Free
Module Outline Dimension: 105.6 (H)*109.87 (V)*2.1(D) LCD AA: 101.52 (H)* 101.52 (V)
Colors: 16.7M Surface Lumiannce: 300/cd
Driver IC: JD9365DA Interface: MIPI
Backlight: White LED Operating Temperature: -20℃~ +70℃
Storage Temperature: -25℃~ +75℃ Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

Circular tft display module

,

720x720 tft display module

,

40 Pins tft lcd module

 TX040R-30MB-CT offers a 4-inch round LCD screen that is perfect for various applications. The circular color display area has a diagonal measurement of 4 inches, providing a clear and detailed view of images.

The LCD screen boasts a high-resolution output of 720*720 and 16M colors, giving users vibrant and lifelike images. It adopts IPS/Transmissive/Normally Black display Mode, ensuring the best viewing angle of 85/85/85/85 full viewing angle for the user's convenience.

The TX040R-30MB-CT operates stably in a wide temperature range of -20~ +70℃, ensuring its durability and functionality even in extreme environments. It supports both SPI and RGB interfaces, making it easy for users to connect and integrate with other devices.

4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC 0

PINTERFACE SIGNAL

4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC 1

VDD VDDI Input power sequence

4 Inch Circular TFT Display Module 720x720 Dots IPS TFT With 40 Pins FPC 2



This is a table of technical parameters for a TFT LCD display screen. The display mode is IPS/Transmissive/Normally Black and the backlight type is 8 Pcs White LED. It has a FPC pin number of 40pins and a viewing direction of 85/85/85/85. The display type is 4" ADS with a luminance of 250 Cd/m2. The module interface is SPI+RGB and the resolution is 720*720 Dots.



FAQ:

1.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

2. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

3. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.

4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
