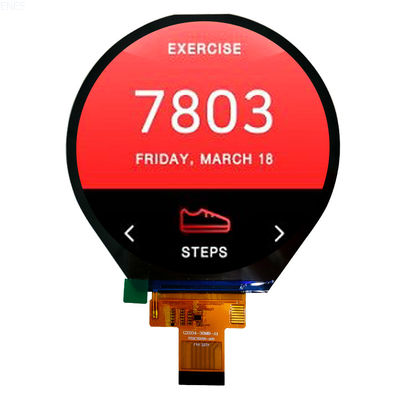

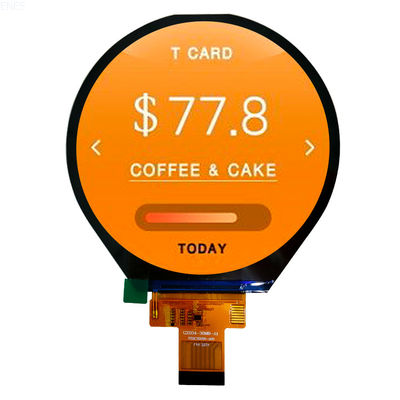

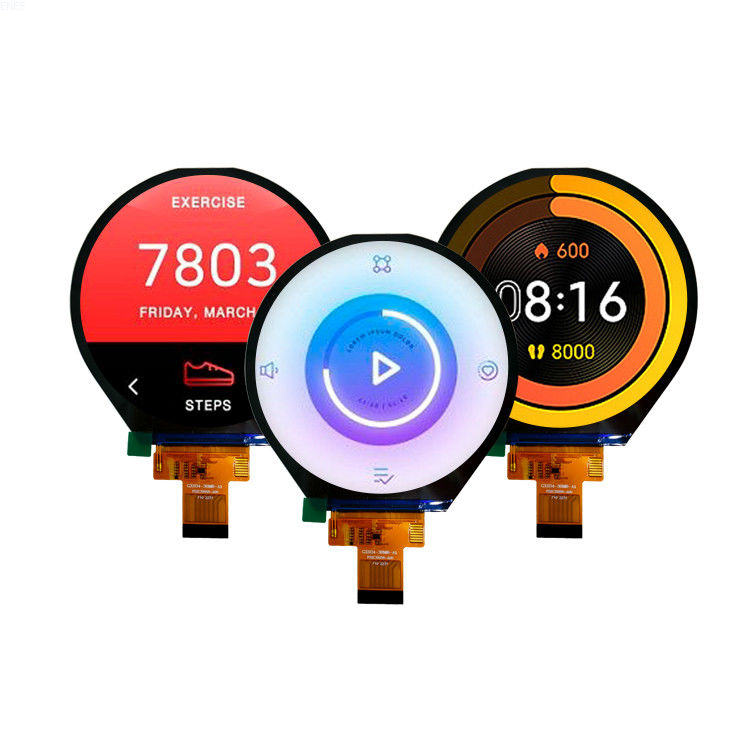

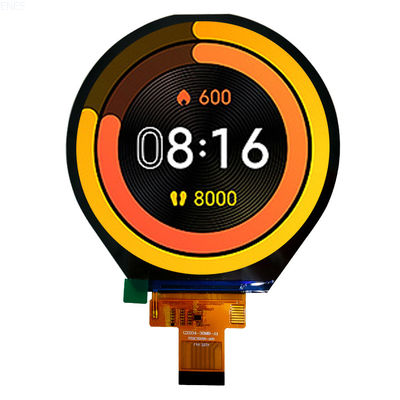

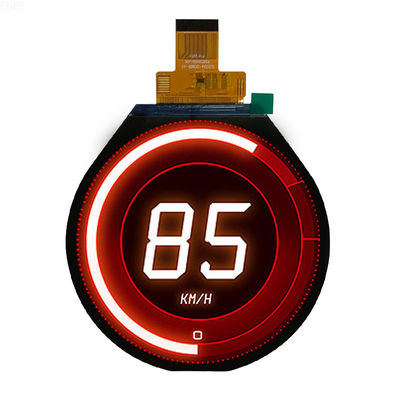

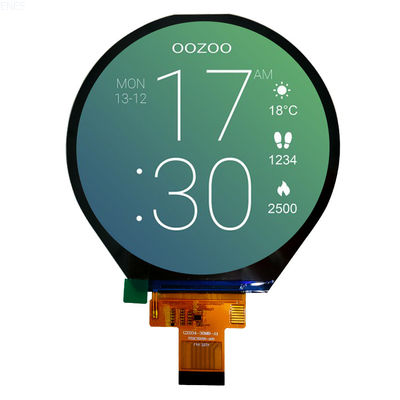

MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution

MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution
MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution
video play

Large Image :  MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T034-30MB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 3.4 Inch Display Mode: Normally Black
Resolution: 800(RGB)x800 Pixel Pitch: 36.5(H) X 109.5(V)
Pixel Arrangement: RGB Vertical Stripe Viewing Direction: Free
Module Outline Dimension: 94.9 (H)*96.95 (V)*2.22(D) LCD AA: 87.6 (H)* 87.6 (V)
Colors: 16.7M Surface Lumiannce: 400/cd
Driver IC: JD9365DA Interface: MIPI
Backlight: White LED Operating Temperature: -20℃~ +70℃
Storage Temperature: -25℃~ +75℃ Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

IPS tft lcd display module

,

MIPI Interface tft lcd display module

,

800x800 tft lcd display

The 3.4-inch in-vehicle display board is superior. With a high definition of 800×800, the picture is clear and can display various types of information. The data transmission rate supports (up to full-speed MIPI interface 4.5Gbps), and it adopts the strictly controlled JD9365DA driver chip; the TFT LCD screen with ISP technology has a wide viewing angle and vivid colors. Settings: The compact footprint is ideal for different spaces in vehicles, so drivers have a high-quality display ready at all times.

MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution 0

PINTERFACE SIGNAL

MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution 1

MIPI Interface IPS TFT LCD Display Module 3.4 Inch 800x800 Resolution 2

FAQ:

1.What kinds of display does TSD have?

TSD is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

2.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

4. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.

5.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
